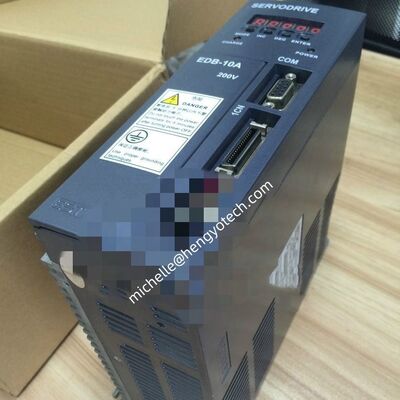

Estun EDB-10AMA AC Servo Drive
Estun EDB-10AMA 1.0kW AC servo drive. 220V, position/speed/torque control, MODBUS, analog/pulse input. Current feed-forward & auto-tuning. In stock.
Product Overview
The Estun EDB-10AMA is a high-performance AC servo drive from Estun's advanced EDB series. This 1.0kW (1000W) model features advanced control algorithms including current feed-forward control, speed observer, and inertia observer functions, making it ideal for precision motion control applications in industrial automation environments.
The EDB series represents Estun's standard AC servo system line, engineered to deliver exceptional response performance and flexible control options. With support for position, speed, and torque control modes and MODBUS communication, the EDB-10AMA provides a cost-effective solution for a wide range of automation applications.
Key differentiators:
- Analog/Pulse control - "AMA" suffix indicates analog/pulse input version
- Current feed-forward control - Significantly improves response performance
- Speed & inertia observers - Reduces overshoot and settling time
- Control mode switching - Flexible operation across different control modes
Key Technical Specifications
| Parameter |
Value |
| Manufacturer |
Estun Automation Co., Ltd. |
| Series |
EDB Series - AC Servo System |
| Product Type |
AC Servo Drive |
| Model Suffix |
"AMA" - Analog/Pulse control version |
| Rated Power |
1.0 kW (1000W) |
| Input Voltage |
220 VAC (1-phase/3-phase) |
| Control Modes |
Position, Speed, Torque |
| Communication |
RS-485, MODBUS protocol |
| Key Control Features |
Current feed-forward control, speed observer, inertia observer |
| Control Mode Switching |
Yes - flexible switching between control modes |
| Overload Capacity |
3x rated current (300% overload) |
| Internal Components |
Built-in regenerative resistor |
| Certifications |
CE Certified, EMC compliant |
Compatible Motors
| Motor Model |
Power |
Frame |
Rated Speed |
Application |
| EMJ-10APA22 |
1.0 kW |
80mm |
3000/4500 RPM |
High-speed applications |
| EMG-10APA22 |
1.0 kW |
130mm |
2000/3000 RPM |
Machine tool feed axes |
Core Features & Benefits
Advanced Control Algorithms
The EDB-10AMA incorporates current feed-forward control, speed observer, and inertia observer functions. These advanced features significantly improve response performance by reducing overshoot and minimizing settling time.
Control Mode Switching
The drive supports flexible control mode switching, allowing operators to change between position, speed, and torque control modes based on application requirements. By setting appropriate switching parameters, users can effectively reduce overshoot and adjustment time.
Three Control Modes
- Position Control - Precision positioning for CNC machines, pick-and-place systems, and indexing applications
- Speed Control - Velocity-based control for conveyors, spindles, and winding applications
- Torque Control - Force/tension control for pressing, winding, and tensioning systems
300% Overload Capacity
The EDB series features 3x rated current overload capacity, ensuring reliable operation during demanding acceleration and deceleration phases. This high overload capability handles sudden load fluctuations and high-torque demands without stalling.
MODBUS Communication
Equipped with RS-485 communication supporting MODBUS protocol, the EDB-10AMA integrates easily into existing control systems. This enables parameter setting, status monitoring, and real-time control from a host controller.
Built-in Regenerative Resistor
The drive includes an internal regenerative resistor to handle deceleration energy. For high-inertia or high-cycle applications, users can connect external regenerative resistors for unlimited operation.
Brake Interlock Output
The drive features a brake interlock output signal specifically designed for holding brake control. Users can configure brake waiting speed and brake waiting time - particularly important for vertical loads where load holding is critical when power is removed.
User-Friendly Setup
- On-board digital operator for parameter setting and status monitoring
- PC connection via RS-232 for advanced configuration using Estun software
- Software-programmable output signals (4 groups, alarm signals customizable)
Flexible Stop Methods
Multiple stop methods available for different application needs:
- Dynamic braking (regenerative)
- Reverse braking
- Reverse braking with zero clamping
- Free stop
Applications
The Estun EDB-10AMA is engineered for a wide range of industrial automation applications:
Primary Applications:
- CNC Machine Tools - Feed axis control for milling machines, lathes, and routers
- Pick-and-Place Machines - High-speed precision positioning for component placement
- PCB Drilling Machines - High-speed, high-precision positioning for circuit board manufacturing
- Material Handling - Conveyor systems, palletizers, and automated storage/retrieval systems
- Robotics - Articulated robot arms and pick-and-place systems
Additional Applications:
- Packaging Machinery - Wrapping, filling, and labeling equipment
- Food Processing Machinery - Wash-down environment applications
- Textile Machinery - High-speed winding and yarn tension control
- General Automation - Assembly line indexers, positioning stages, and factory automation
Compatibility & System Integration
Compatible Motors
The EDB-10AMA is specifically designed to pair with Estun's EMJ and EMG series servo motors:
| Motor Model |
Characteristics |
Best For |
| EMJ-10APA22 |
1.0kW, 80mm frame, 3000/4500 RPM, medium inertia |
High-speed applications, packaging machinery, pick-and-place |
| EMG-10APA22 |
1.0kW, 130mm frame, 2000/3000 RPM, medium inertia |
Machine tool feed axes, heavy-duty positioning |

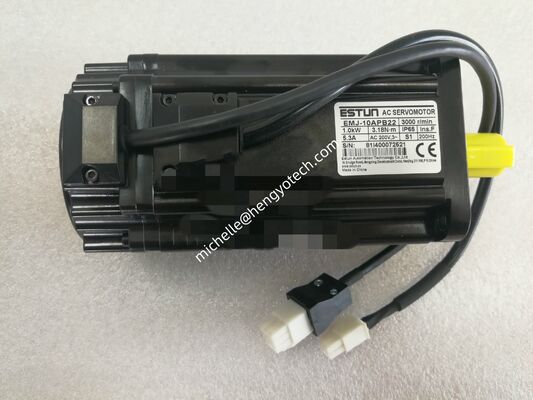

Motor Specifications (EMJ-10APA22 reference):
- Rated Torque: 3.18 N*m
- Peak Torque: 9.54 N*m (300%)
- Encoder: 2500 P/R wire-saving incremental encoder

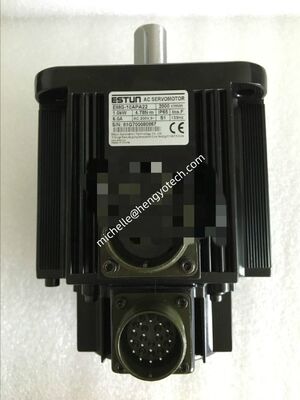

Motor Specifications (EMG-10APA22 reference):
- Rated Torque: 4.78 N*m
- Peak Torque: 14.34 N*m (300%)
- Encoder: 2500 P/R incremental encoder
- Protection: IP65 standard
Communication Integration
- RS-485 MODBUS - Standard for parameter setting and monitoring
- RS-232 - PC connection for advanced configuration
- Pulse train input - Position control with line driver or open collector signals
- Analog input - Speed/torque control with ±10V analog signals
Output Signals
- 4 groups of programmable output signals (excluding alarm signal)
- Encoder pulse output with programmable division ratio (1~2500)/2500
Why Choose Estun EDB-10AMA?
Advanced Control Performance
The EDB-10AMA incorporates current feed-forward control, speed observers, and inertia observers - features typically found in higher-priced drives. These functions significantly reduce overshoot and settling time, improving machine throughput.
Cost-Effective Alternative
Estun offers performance comparable to Japanese and European brands (Panasonic, Delta, Yaskawa) at a competitive price point. The EDB series delivers exceptional value for system integrators and OEMs without compromising on features.
Proven Reliability
Estun is a leading global automation brand with ISO9001 quality system certification. All EDB series drives undergo rigorous testing and feature comprehensive alarm protection (overload, over-voltage, over-current, over-temperature, disconnection) for maximum reliability.
EMC Certified
All Estun AC servo drives are EMC certified, meeting international electromagnetic compatibility standards. This simplifies machine certification and export to global markets.
Flexible Control Options
The "AMA" suffix indicates analog/pulse control capability, making this drive suitable for a wide range of applications from simple pulse-controlled positioning to complex analog speed/torque control. For pulse-only applications, the "APA" version is also available.
Easy Retrofit
EDB series drives share mounting dimensions with other major servo drive brands, facilitating straightforward retrofits and replacements.
Key Features at a Glance:
- 1.0kW power rating - Ideal for 400W-1.5kW motor applications
- Three control modes - Position, speed, torque
- MODBUS communication - Easy integration with PLCs and HMIs
- 300% overload capacity - Handles demanding acceleration
- Built-in regenerative resistor - No external components needed for most applications
- Brake interlock output - Safe vertical axis control
- CE & EMC certified - Global market acceptance
Model Number Breakdown (For Reference)
The EDB-10AMA model number follows Estun's EDB series naming convention:
| Code |
Position |
Meaning |
| EDB |
Prefix |
Estun EDB Series - AC Servo Drive |
| 10 |
Power code |
1.0 kW (1000W) |
| A |
Voltage |
220V AC |
| M |
Control type |
Analog/Pulse control mode |
| A |
Variant |
Standard version |
Related EDB Series Models:
| Model |
Power |
Control Type |
Compatible Motor |
| EDB-08AMA |
0.75kW |
Analog/Pulse |
EMJ-08APA22 |
| EDB-10AMA |
1.0kW |
Analog/Pulse |
EMJ-10APA22 / EMG-10APA22 |
| EDB-15AMA |
1.5kW |
Analog/Pulse |
EMG-15APA22 |
| EDB-20AMA |
2.0kW |
Analog/Pulse |
EMG-20APA22 |
| EDB-30AMA |
3.0kW |
Analog/Pulse |
EMG-30APA22 |
| EDB-50AMA |
5.0kW |
Analog/Pulse |
EMG-50APA22 |
| EDB-08APA |
0.75kW |
Pulse only |
EMJ-08APA22 |
| EDB-10APA |
1.0kW |
Pulse only |
EMJ-10APA22 |
Frequently Asked Questions (FAQ)
Q: What is the difference between EDB-10AMA and EDB-10APA?
A: The "AMA" suffix indicates analog/pulse control (both analog input for speed/torque and pulse input for position). The "APA" suffix is pulse only (position control only). Choose AMA if you need speed or torque control via analog signals.
Q: What motors are compatible with the EDB-10AMA?
A: Compatible motors include the EMJ-10APA22 (1.0kW, 80mm frame, 3000/4500 RPM) and EMG-10APA22 (1.0kW, 130mm frame, 2000/3000 RPM).
Q: What control modes does this drive support?
A: The EDB-10AMA supports position control, speed control, and torque control modes with flexible switching capability.
Q: Does this drive have a built-in regenerative resistor?
A: Yes, the EDB-10AMA includes a built-in regenerative resistor. For high-cycle or high-inertia applications, external regenerative resistors can be added.
Q: What communication protocols are supported?
A: The drive supports RS-485 with MODBUS protocol for parameter setting, status monitoring, and control.
Q: Is this drive suitable for vertical axis applications?
A: Yes, the drive includes a brake interlock output signal specifically designed for holding brake control, with configurable brake waiting speed and time parameters.
Q: What is the overload capacity?
A: The EDB series features 300% overload capacity (3x rated current), handling demanding acceleration and deceleration requirements.
Q: What certifications does this drive have?
A: The drive is CE certified and meets EMC international standards.
Q: Is this product still in production?
A: Yes, the EDB series is an active, in-production product line. Estun continues to manufacture and support the EDB series drives.
Q: What is the warranty period?
A: Estun provides a standard 1-year manufacturer warranty against manufacturing defects. Extended warranty may be available through authorized distributors.
Ordering & Shipping Information
| Service |
Details |
| Minimum Order Quantity |
1 unit |
| Lead Time |
Subject to stock availability (typically 5-15 business days) |
| Shipping Options |
DHL, FedEx, UPS for international shipping |
| Packaging |
Standard manufacturer packaging (box) |
| Customs Classification |
ECCN: EAR99, HTSUS: 8504.40.8500 |
