Pepperl+Fuchs K-LB-1.30G 30V Intrinsically Safe Surge Protection Barrier with 20kA Surge Current and SIL 3 Certification

Large Image : Pepperl+Fuchs K-LB-1.30G 30V Intrinsically Safe Surge Protection Barrier with 20kA Surge Current and SIL 3 Certification

Product Details:

Place of Origin:	Singapore
Brand Name:	PEPPERL+FUCHS
Model Number:	K-LB-1.30G

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	ship out immediately after payment received
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Pepperl+Fuchs K-LB-1.30G 30V Intrinsically Safe Surge Protection Barrier with 20kA Surge Current and SIL 3 Certification

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Pepperl+Fuchs surge protection barrier , K-LB-1.30G surge protector , industrial surge protection device

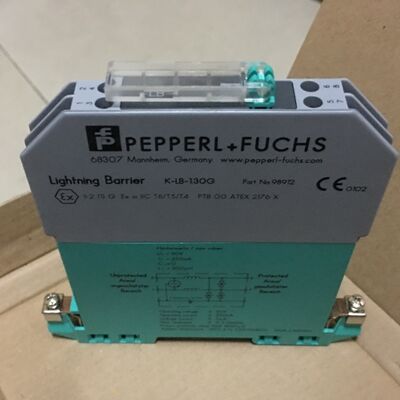

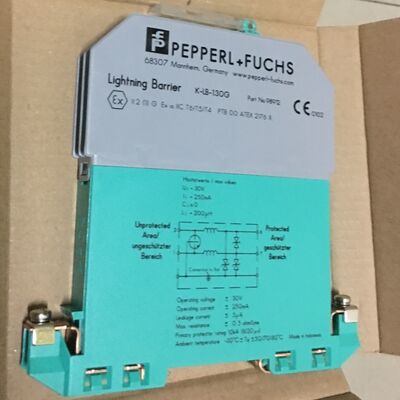

Pepperl+Fuchs K-LB-1.30G Surge Protection Barrier

30V DIN Rail 1-Channel Intrinsically Safe Surge Protector

Product Overview

The K-LB-1.30G is a high-performance intrinsically safe surge protection barrier designed for industrial process control systems. This device effectively suppresses surge voltages and transient overcurrents in hazardous area applications, providing stable protection for field instruments, transmitters, and control loops while maintaining signal integrity.

Key Features

Single-channel intrinsically safe surge protection
Rated voltage: 30V
High surge current capacity up to 20kA
SIL 3 certified for enhanced safety performance
Auto-reset function for continuous operation
Low leakage current and fast response time
DIN rail mounting for easy installation
Compact and robust industrial design
Compatible with standard 4-20mA and HART signal loops

Technical Specifications

Model	K-LB-1.30G
Number of channels	1
Operating voltage	30V
Surge discharge current	20kA
Safety level	SIL 3
Mounting type	DIN rail
Rated current	250 mA
Leakage current	< 10 µA at 24V and 25°C (77°F)
Number of protected signal lines	2

Applications

The K-LB-1.30G surge protection barrier is widely used in oil and gas, chemical processing, pharmaceutical manufacturing, and general industrial automation. It safeguards sensitive field equipment from lightning surges, switching transients, and electromagnetic interference, ensuring stable and safe operation in harsh environments.

Installation Notes

The device must be mounted on a 35 mm DIN mounting rail according to EN 60715. Always connect to high-quality ground connections and ensure the device has the same potential as the equipment it protects. Install the ground system in accordance with applicable regulations.
