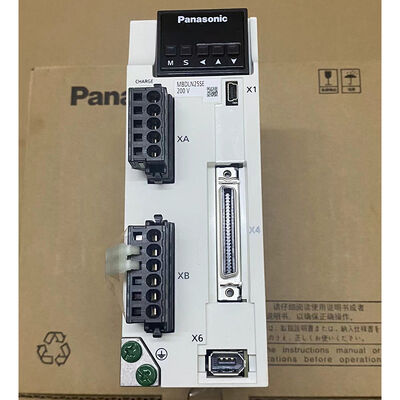

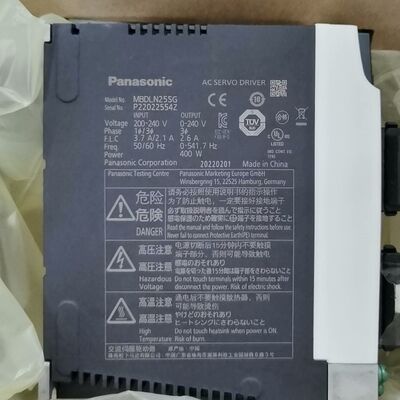

Panasonic MBDLN25SG 400W 200V AC Servo Driver with RS-485/Modbus Communication for MINAS A6SG Series

The Panasonic MBDLN25SG is a high-performance general-purpose communication type AC servo driver from the MINAS A6SG series, designed for industrial automation applications requiring flexible networking and precise motion control. With a rated output of 400W and 200V AC power supply, this driver delivers exceptional positioning accuracy and high-speed response for applications including pick-and-place equipment, small robotics, packaging machinery, and automated assembly lines.

As part of Panasonic's advanced MINAS A6 family, the MBDLN25SG features a 3.2 kHz frequency response for superior dynamic performance, supports 23-bit absolute encoder feedback (8,388,608 pulses/revolution), and offers RS-232, RS-485, and Modbus-RTU communication capabilities for flexible system integration. The RS-485 interface enables multi-axis communication with up to 31 axes, making it an ideal choice for networked automation systems.

Product Status: Active (In Production) - Available for new designs and ongoing production.

RoHS Compliant: This product has been confirmed to not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

• MINAS A6SG Series: General-purpose communication type with RS-485/Modbus-RTU support for flexible networking
• 3.2 kHz High-Frequency Response: Industry-leading response for rapid positioning and high-throughput applications
• 23-bit High-Resolution Encoder Support: 8,388,608 pulses/revolution resolution for exceptional positioning precision with MINAS A6 series motors
• Three Control Modes: Switchable among (1) Position control, (2) Internal velocity command, and (3) Position/Internal velocity command via parameter selection
• Multiple Communication Interfaces: USB (for PC configuration/monitoring), RS-232 (1:1), RS-485 (1:n up to 31 axes), and Modbus-RTU
• Flexible I/O Configuration: 10 programmable general-purpose inputs and 6 programmable general-purpose outputs
• Versatile Pulse I/O: 2 pulse inputs (photo-coupler input, line receiver input) and 4 pulse outputs (3 line driver, 1 open collector)
• Analog Monitor Outputs: 2 outputs for real-time performance monitoring
• Compact B-Frame Design: Ultra-slim 55mm width for space-constrained control cabinets
• Lightweight Construction: Only 1.0 kg for easy installation and maintenance
• Active Product: Currently in production - no discontinuation concerns for new designs
• RoHS Compliant: Meets EU environmental compliance requirements

The MBDLN25SG (B-Frame, 400W) is compatible with MINAS A6 series servo motors:

• Pick-and-Place Equipment - High-speed component placement with precise positioning
• Small Industrial Robotics - Articulated arms and SCARA robots requiring RS-485 networking
• Packaging Machinery - Wrapping, filling, sealing, and labeling equipment
• Automated Assembly Lines - Indexing operations with multi-axis coordination via Modbus
• CNC Machinery - Small milling, routing, and engraving equipment
• Semiconductor Manufacturing - Wafer handling and inspection equipment
• PCB Assembly - Placement machines and solder paste printers
• Laboratory Automation - Precision positioning and sample handling
• Textile Machines - High-speed winding and processing equipment
• Multi-Axis Systems - Applications requiring up to 31 axes on a single RS-485 network
