Panasonic MINAS A6SF Servo Driver 400W with 23-bit High-Resolution Encoder and 3.2 kHz Frequency Response

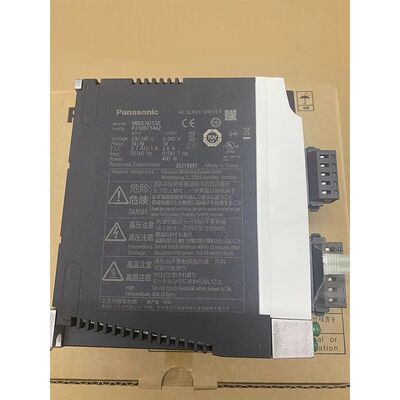

Large Image : Panasonic MINAS A6SF Servo Driver 400W with 23-bit High-Resolution Encoder and 3.2 kHz Frequency Response

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MBDLT25SF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Panasonic MINAS A6SF Servo Driver 400W with 23-bit High-Resolution Encoder and 3.2 kHz Frequency Response

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic MINAS A6S servo driver , AC servo motor driver , MBDLT25SF servo driver with warranty

Panasonic MBDLT25SF Servo Driver, 400W 12A 200V AC Single/3-Phase for MINAS A6SF Series

Product Overview

The Panasonic MBDLT25SF is a high-performance AC servo driver from the MINAS A6SF series, engineered for precision motion control in industrial automation applications. With a rated output of 400W and a continuous current of 12A, this B-Frame driver delivers reliable and accurate control for single-axis servo systems.

✅ Product Status: Active (In Production) - This model is currently in active production and not discontinued, making it suitable for new system designs and legacy system maintenance alike.

Technical Specifications

Manufacturer	Panasonic Industrial Automation Sales
Series	MINAS A6SF
Frame Size	B-Frame
Part Status	Active (In Production)
Type	AC Servo Driver (Module)
Number of Motors Controlled	1
Wattage - Load	400 W
Current - Output	12 A
Voltage - Load	200 V
Voltage - Supply (Main Circuit)	Single/3-phase 200 ~ 240V +10%/-15% 50/60 Hz
Frequency Response	3.2 kHz
Encoder Feedback	23-bit absolute encoder (8,388,608 resolution), 7-wire serial
Control Modes	Position, Speed, Torque, Full-closed control (7 modes switchable)
Communication Interfaces	RS-232, RS-485, USB, Modbus-RTU
I/O - Control Signal Input	10 general-purpose inputs (parameter-selectable)
I/O - Control Signal Output	6 general-purpose outputs (parameter-selectable)
I/O - Analog Input	3 inputs (16-bit A/D x1, 12-bit A/D x2)
I/O - Analog Output	2 outputs (analog monitor)
Regeneration	No built-in regenerative resistor (external only)
Mounting Type	Chassis Mount
Operating Temperature	0°C ~ 55°C
Dimensions (W × H × D)	55mm × 150mm × 130mm
Weight	1.0 kg (approx. 2.2 lbs)
RoHS Compliant	Yes (EU RoHS 2011/65/EU and 2015/863/EU)

Key Features

23-bit High-Resolution Encoder: Features a 23-bit (8,388,608 resolution) absolute encoder for ultra-fine positioning accuracy and superior motion control precision.
High-Frequency Response: Delivers a 3.2 kHz frequency response for rapid and dynamic motion control, significantly improving system responsiveness.
Seven Control Modes: Supports switching among 7 control modes - Position Control, Speed Control, Torque Control, Position/Speed, Position/Torque, Speed/Torque, and Full-closed Control - to suit diverse application requirements.
Multiple Communication Interfaces: Equipped with USB (for PC parameter setting and monitoring), RS-232 (1:1 communication), RS-485 (1:n communication up to 31 axes), and Modbus-RTU protocols.
Comprehensive I/O Configuration: Features 10 general-purpose inputs and 6 general-purpose outputs with parameter-selectable functions, plus 3 analog inputs and 2 analog monitor outputs for real-time status monitoring.
Full-closed Control Support: Supports external displacement sensor feedback for applications requiring position feedback directly from the load.
Built-in Safety Functions: Equipped with integrated safety functionality for enhanced operational safety.
Wide Power Range Compatibility: Part of the MINAS A6 family covering 50W to 22kW, supporting DC 24V/48V and AC 100V/200V/400V voltages.
Advanced Auto-tuning: Features real-time auto-gain tuning and adaptive load control to suppress vibration and optimize performance automatically.

Compatible Servo Motors

The MBDLT25SF is designed for use with Panasonic MINAS A6 series servo motors in the 400W power range.

Motor Type	MINAS A6 Series Motors
Description	400W rated, 200V class
Compatible Inertia Classes	Medium Inertia (Standard), Low Inertia (High-speed)

⚠️ Note: Please verify motor compatibility with your existing system before purchasing. The driver supports 23-bit absolute encoder feedback from MINAS A6 series motors.

Model Variants

This driver belongs to the A6SF series (Multifunction Type). Please verify your required specifications:

Model	Series	Description
MBDLT25SF	A6SF	Multifunction Type - Pulse train/Analog/Full-closed control, with safety function, RS485/RS232 communication
MBDLT25SG	A6SG	General Communication Type - Pulse train only, without safety function
MBDLT25BF	A6BF	EtherCAT Communication Type

Note: The A6SF series is the multifunction type supporting position, speed, torque, and full-closed control modes with built-in safety functionality. For EtherCAT applications, refer to the A6BF series.

Applications

Ideal for precision motion control applications requiring 400W power output:

Industrial Automation Systems
CNC Machinery & Machine Tools
Robotics & Pick-and-Place Equipment
Packaging & Labeling Machinery
Material Handling & Conveyor Systems
Assembly Lines
Semiconductor Manufacturing Equipment
LCD Manufacturing Equipment
Automated Machinery
