Panasonic MCDLN35SE 750W 22A AC Servo Amplifier with 3.2 kHz Frequency Response for MINAS A6SE Series

Large Image : Panasonic MCDLN35SE 750W 22A AC Servo Amplifier with 3.2 kHz Frequency Response for MINAS A6SE Series

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Certification:	CE UL ROSH
Model Number:	MCDLN35SE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

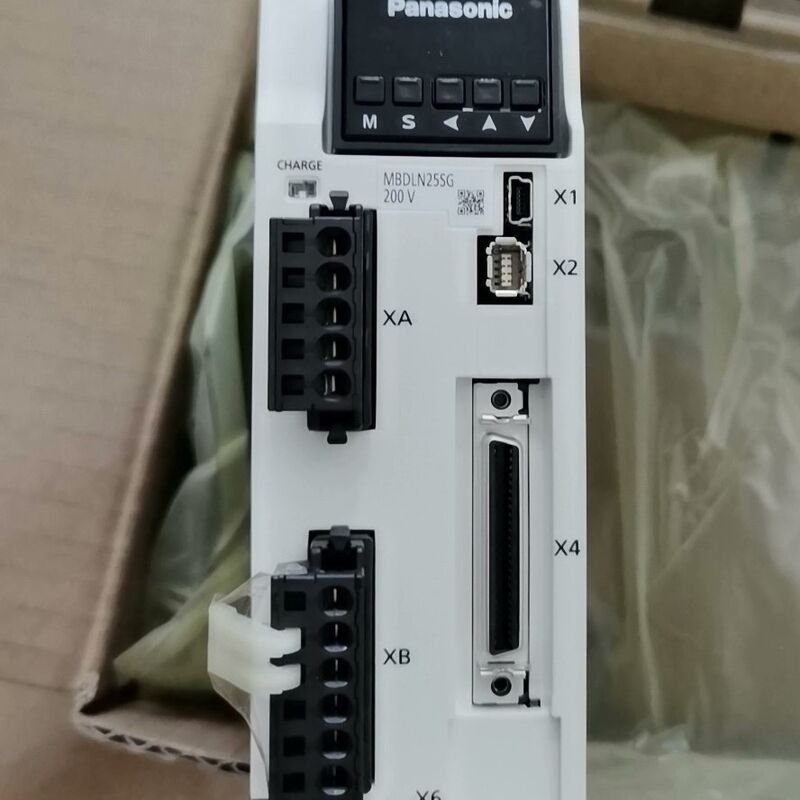

Panasonic MCDLN35SE 750W 22A AC Servo Amplifier with 3.2 kHz Frequency Response for MINAS A6SE Series

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic 750W servo driver , AC servo motor driver , 750W servo driver with warranty

Panasonic MCDLN35SE Servo Driver 750W 22A 200V AC Single/3-Phase for MINAS A6SE Series

Product Overview

The Panasonic MCDLN35SE is a high-performance AC servo driver from the MINAS A6SE Series, designed specifically for position control applications requiring pulse train input. This compact servo driver delivers 750W output power with 22A current capacity, featuring an industry-leading 3.2 kHz frequency response for exceptional positioning accuracy and fast settling times.

As part of Panasonic's advanced MINAS A6 family, the MCDLN35SE is the basic type for position control, supporting incremental encoder feedback with 23-bit (8,388,608 resolution) for precise motion control. The C-frame design (65mm width) enables space-saving panel installation while maintaining robust thermal management.

Important - Product Specifics:

Position control only (pulse train input) - does NOT support analog speed/torque control
Incremental system only - do NOT connect absolute encoder battery
Without safety function (STO) - no Safety Torque Off capability
Product Status: Active (In Production) - currently available

Key Applications

Pick-and-place machines and assembly robots
Positioning tables and indexing systems
Semiconductor manufacturing equipment
PCB drilling and routing machines
CNC machine tools
Packaging and labeling machinery
Factory automation (FA) systems
Block positioning via digital I/O (up to 256 blocks)

Technical Specifications

Parameter	Specification
Brand	Panasonic Industrial Automation Sales
Series	MINAS A6SE Series
Product Type	AC Servo Driver (Servo Amplifier)
Part Number	MCDLN35SE
Power Output	750 W
Output Current	22 A
Load Voltage	200 V
Input Power (Main Circuit)	Single/3-phase 200-240V AC (+10%/-15%), 50/60 Hz
Input Power (Control Circuit)	Single-phase 200-240V AC (+10%/-15%), 50/60 Hz
Frequency Response	3.2 kHz
Control / Drive Type	Servo AC
Control Method	Position control (pulse train input only)
Control Modes	(1) Position control, (2) Internal velocity command, (3) Position/Internal velocity command
Encoder Feedback	23-bit (8,388,608 resolution) absolute encoder, 7-wire serial
Encoder Note	Use as incremental system only - do not connect battery; set Parameter Pr.0.15 to "1"
Communication Interfaces	RS-232, RS-485, USB
Number of Motors Controlled	1
Parallel I/O: Control Signal Input	10 general-purpose inputs (function selectable by parameters)
Parallel I/O: Control Signal Output	6 general-purpose outputs (function selectable by parameters)
Parallel I/O: Analog Signal Output	2 outputs (Analog monitor)
Parallel I/O: Pulse Signal Input	2 inputs (Photo-coupler input, Line receiver input)
Parallel I/O: Pulse Signal Output	4 outputs (Line driver: 3, Open collector: 1)
Regeneration	Built-in regenerative resistor (external resistor also supported)
Safety Function	Without (STO not available)
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-20°C to 80°C (-4°F to 176°F)
Dimensions (W × H × D)	65 × 150 × 170 mm
Weight	1.6 kg (approx. 3.5 lbs)
Mounting Type	Chassis Mount
Protection Features	Over-voltage, over-current, over-temperature, overload protection
Cooling Method	Integrated cooling fan
RoHS Status	Compliant with EU RoHS 2011/65/EU & 2015/863/EU
ECCN	EAR99
Product Status	Active (In Production)

Key Features

Ultra-Fast 3.2 kHz Frequency Response

With a 3.2 kHz frequency response - a significant upgrade from the previous MINAS A5's 2.0 kHz - the MCDLN35SE delivers exceptional responsiveness, reducing settling time and enabling high-speed positioning applications.

High-Resolution 23-bit Encoder Support

Compatible with Panasonic's 23-bit absolute encoder (8,388,608 resolution) for ultra-precise position feedback. Important: This driver supports incremental system only - do not connect the absolute encoder battery, and set Parameter Pr.0.15 to "1".

Position Control with Pulse Train Input

Specifically designed for position control applications requiring pulse train input. Supports multiple pulse input formats: Line receiver input: up to 4 Mpps, Photo-coupler input: up to 200 kpps.

Three Selectable Control Modes

Switchable among three modes via parameters: (1) Position control, (2) Internal velocity command, (3) Position/Internal velocity command switching.

Block Positioning via Digital I/O

Supports block operation with digital I/Os (similar to MINAS A4P), enabling control of up to 256 blocks via I/O terminal units, PLCs, or switches - ideal for simple positioning applications without network communication.

Real-Time Auto-Tuning with Vibration Suppression

Advanced real-time auto gain tuning automatically adjusts servo gains based on load conditions. The automatic vibration suppression function minimizes equipment damage and shortens transient recovery time.

Manual and Automatic Notch Filters

Highly sensitive notch filters log vibration frequencies and adapt automatically, reducing mechanical resonance and improving system stability.

Flexible Power Supply Input

Accepts both single-phase and 3-phase 200-240V AC input, providing installation flexibility across different facility power configurations.

Built-in Regenerative Resistor

Features a built-in regenerative resistor (external resistor also supported), simplifying installation and reducing component count for most applications.

USB Communication for Easy Setup

Integrated USB interface enables direct connection to computers for parameter setting, real-time status monitoring, and firmware updates.

Compact C-Frame Design

The slim 65mm width design allows for high-density panel mounting, reducing cabinet space requirements while maintaining full 750W output capability.
