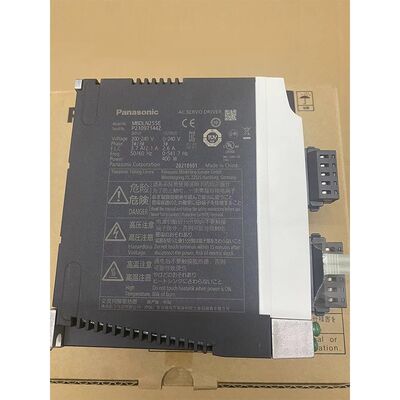

Panasonic MCDLN35NE Servo Driver 750W 200V 22A with 3.2kHz Frequency Response and 23-bit Absolute Encoder

Large Image : Panasonic MCDLN35NE Servo Driver 750W 200V 22A with 3.2kHz Frequency Response and 23-bit Absolute Encoder

Product Details:

Place of Origin:	CHINA
Brand Name:	Panasonic
Model Number:	MCDLN35NE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/months

Contact Now Chat Now

Panasonic MCDLN35NE Servo Driver 750W 200V 22A with 3.2kHz Frequency Response and 23-bit Absolute Encoder

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic AC Servo Driver 200V , Panasonic AC Servo Driver 750W , MCDLN35NE

Panasonic MCDLN35NE Servo Driver 750W 200V 22A MINAS A6N Series RTEX Network Type

Panasonic MCDLN35NE Servo Driver | 750W 200V 22A | MINAS A6N Series | RTEX Network Type | 3.2kHz 23-bit Absolute Encoder

Product Overview

The Panasonic MCDLN35NE is a high-performance AC servo driver from the MINAS A6N series, featuring RTEX (Realtime Express) ultra-high-speed network communication. This 750W driver delivers exceptional precision and dynamic response for demanding industrial automation applications, including robotics, CNC machinery, packaging equipment, and multi-axis synchronized systems.

Engineered with a 3.2 kHz frequency response and 23-bit absolute encoder support (8,388,608 pulses/revolution), the MCDLN35NE achieves superior positioning accuracy and vibration suppression for smooth, high-speed operation. The RTEX network interface enables real-time command transmission with low latency, supporting complex multi-axis coordinated motion control.

Product Status: Active (In Production) - Available for new designs and ongoing production.

Key Features

RTEX Ultra-High-Speed Network: Real-time communication protocol with low-latency data transmission for precise multi-axis synchronized control
High Dynamic Response: 3.2 kHz frequency response for rapid acceleration/deceleration and superior throughput
High-Resolution Feedback: 23-bit (8,388,608 resolution) absolute encoder support for exceptional positioning precision
Versatile Control Modes: Supports Position control (PP/CP), Velocity control (CV), and Torque control (CT) - switchable via RTEX communication command
Compact C-Frame Design: 65mm width chassis mount for space-constrained control cabinets
Flexible I/O Configuration: 8 programmable inputs and 3 programmable outputs for customized control integration
Built-in Regeneration: Integrated regenerative resistor with external resistor option available
USB Configuration Interface: Easy setup, parameter adjustment, and real-time status monitoring via PC connection
RoHS Compliant: Meets EU RoHS Directive 2011/65/EU and 2015/863/EU requirements
Active Product: Currently in production - no discontinuation concerns for new designs

Technical Specifications

Specification	Value
Part Number	MCDLN35NE
Family Name	MINAS A6
Series	A6NE series
Type	RTEX Ultra high-speed Network type (Basic type)
Product Status	Active (In Production)
Frame	C-Frame
Supply Voltage - Main Circuit	Single/3-phase 200 to 240V AC (+10%/-15%), 50/60Hz
Supply Voltage - Control Circuit	Single-phase 200 to 240V AC (+10%/-15%), 50/60Hz
Current Output	22A
Load Voltage	200V
Load Wattage	750 W
Frequency Response	3.2 kHz
Encoder Feedback	23-bit (8,388,608 resolution) absolute encoder, 7-wire serial
Control Modes	Position control (PP/CP), Velocity control (CV), Torque control (CT)
Communication Interfaces	RTEX (primary), USB (configuration/monitoring)
Parallel I/O - Inputs	8 programmable inputs
Parallel I/O - Outputs	3 programmable outputs
Analog Outputs	2 outputs (Analog monitor)
Pulse Output	Encoder pulse output (A/B phase, line driver)
Regeneration	Built-in regenerative resistor (external resistor enabled)
Safety Function	Without (Basic type)
Mounting Type	Chassis mount
Dimensions (W × H × D)	65 × 150 × 170 mm
Mass	1.6 kg
Operating Temperature	0°C to 55°C
RoHS Status	RoHS Compliant
ECCN	EAR99
HTSUS Code	8537.10.9170

Applications

The Panasonic MCDLN35NE servo driver is ideal for:

Industrial Robotics - Six-axis robot joints, SCARA robots, and collaborative robots requiring precise trajectory tracking and vibration suppression
CNC Machinery - High-speed machining centers, milling machines, and routing equipment requiring high positioning accuracy
Packaging Machinery - Wrapping, filling, sealing, and labeling equipment with multi-axis synchronized motion
Automated Assembly Lines - Pick-and-place systems, conveyor synchronization, and indexing operations
Semiconductor Manufacturing - Wafer handling, die bonding, and inspection equipment requiring ultra-high precision
Multi-Axis Systems - Applications requiring coordinated motion across multiple axes via RTEX network

Compatibility

Compatible Motors

The MCDLN35NE is designed for use with MINAS A6 series AC servo motors. For optimal performance, pair with Panasonic 750W (or compatible) servo motors from the MINAS A6 family.

Communication & Integration

RTEX Network: Supports multi-axis daisy-chain connection for up to 15 axes (subject to system configuration)
USB Interface: PC connection for parameter configuration using PANATERM software
Control Mode Switching: PP/CP/CV/CT modes switchable via RTEX communication command

Cable & Accessories

Component	Notes
RTEX Communication Cable	Refer to RTEX Cable specification document for part numbers
External Regenerative Resistor	Optional for high-regeneration applications
Motor Cable	Refer to MINAS A6 catalog for compatible cable part numbers

RTEX Network Benefits

The MCDLN35NE utilizes Panasonic's proprietary RTEX (Realtime Express) protocol, offering:

Low Latency Communication: Real-time command transmission with minimal delay for high-performance motion control
Multi-Axis Synchronization: Seamless coordination across multiple axes in complex automation systems
Simplified Wiring: Daisy-chain topology reduces cabling complexity compared to pulse-based systems
Integrated Monitoring: Real-time status monitoring and parameter adjustment via network
Flexible Control: On-the-fly switching between position, velocity, and torque control modes

Installation & Setup

Mechanical Installation

Mounting: Chassis mount - 65mm C-Frame width for space-efficient panel integration
Cooling: Natural convection cooling - ensure adequate ventilation clearance as specified in instruction manual
Environment: Operates in 0°C to 55°C temperature range

Electrical Connection

Main Circuit Power: Single or 3-phase 200-240V AC - verify phase configuration before connection
Control Circuit Power: Single-phase 200-240V AC - separate from main circuit
Motor Connection: Connect to compatible MINAS A6 series servo motor
Encoder Feedback: 7-wire serial connection for 23-bit absolute encoder
Grounding: Proper grounding required for safety and noise immunity

Configuration

USB Connection: Connect PC to driver via USB for parameter setup using PANATERM software
RTEX Network Setup: Configure network parameters for multi-axis communication
Auto-Tuning: MINAS A6 series features real-time auto-tuning for optimal gain settings
Test Operation: Perform JOG operation before full system integration

Documentation Resources

Available downloads from Panasonic:

Document	Description
Operating Instructions (Overall)	Complete installation and operation guide
A6N Series Specifications	Detailed technical specifications for RTEX rotary motor applications
Technical Reference - Functional Specification	In-depth functional parameters and configuration
Technical Reference - RTEX Communication	RTEX protocol and network setup details
A6N Series Presentation	Overview and application examples
RTEX Cable Specifications	Cable part numbers and requirements

What's Included

1 x Panasonic MCDLN35NE Servo Driver (C-Frame, 65×150×170mm)

(Motor cable, encoder cable, RTEX communication cable, and power connectors sold separately)

Please verify included accessories with your supplier. Refer to the instruction manual for complete accessory requirements.
