Panasonic MINAS A5 MHMD042G1U 400W servo motor with high inertia design 20-bit incremental encoder and IP65 protection

Large Image : Panasonic MINAS A5 MHMD042G1U 400W servo motor with high inertia design 20-bit incremental encoder and IP65 protection

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MHMJ042G1U

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/month

Contact Now Chat Now

Panasonic MINAS A5 MHMD042G1U 400W servo motor with high inertia design 20-bit incremental encoder and IP65 protection

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	A5 Panasonic AC Servo Driver , 400W Panasonic AC Servo Driver , Panasonic 400w Servo Motor MHMJ042G1U

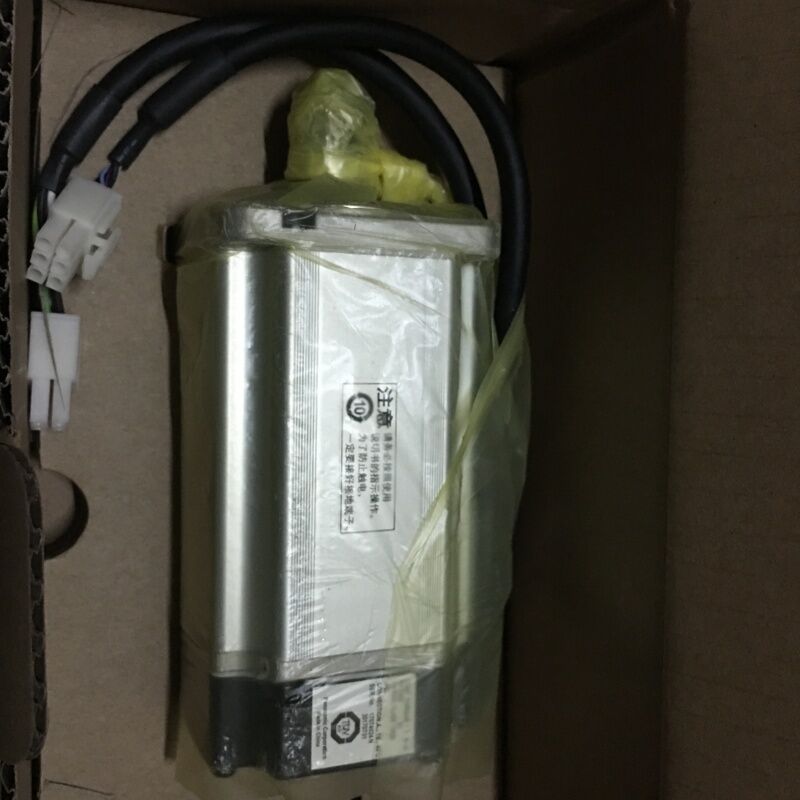

Panasonic MINAS A5 Servo Motor 400W High Inertia Servo Motor IP65

Product Overview

The Panasonic MHMJ042G1U is a high-inertia AC servo motor from the renowned MINAS A5 family, designed for precision motion control in demanding industrial automation applications. With a rated output of 400W and a 200V AC power supply, this motor delivers exceptional positioning accuracy and stable torque performance.

Featuring a 20-bit incremental encoder with 1,048,576 pulses per revolution resolution, the MHMJ042G1U achieves a frequency response of 2.3 kHz when paired with compatible MINAS A5 series drivers, enabling rapid acceleration/deceleration cycles and superior vibration suppression. The high-inertia rotor design provides excellent load matching capability.

Key Features

High Resolution Feedback: 20-bit incremental encoder (1,048,576 pulses/revolution) for exceptional positioning precision
High Inertia Design: Rotor inertia of 0.67 × 10⁻⁴ kg*m² for stable operation with high-inertia loads
High Speed Capability: Rated speed of 3000 r/min, maximum speed of 5000-6000 r/min
Robust Torque Output: Rated torque of 1.3 N*m, momentary maximum peak torque of 3.8 N*m
IP65 Protection Rating: Excellent environmental protection against dust and water jets
Durable Construction: Key-way shaft with oil seal and center tap design
MINAS A5 Series Compatibility: Seamless integration with MINAS A5 family servo drivers

Technical Specifications

Part Number	MHMJ042G1U
Product Status	Discontinued (Obsolete)
Rated Output	400 W (0.4 kW)
Voltage	200 V AC
Rated Torque	1.3 N*m
Peak Torque	3.8 N*m
Rated Speed	3000 r/min
Max Speed	5000-6000 r/min
Encoder Resolution	1,048,576 pulses/revolution
Protection Class	IP65
Flange Size	80 mm sq.
Weight	Approx. 1.4 kg

Applications

CNC Machinery - Precision positioning for milling, routing, and cutting equipment
Robotics - Articulated arms, SCARA robots, and gantry systems
Automated Assembly Lines - High-speed pick-and-place and indexing operations
Packaging Machinery - Wrapping, filling, sealing, and labeling equipment
Semiconductor Equipment - Wafer handling, die bonding, and inspection systems

Compatibility

Compatible Drivers (MINAS A5 Series):

MBDDT2210 (200W), MCDDT3520 (400W/750W), MDDDT3530 (750W/1.0kW)

Replacement Options: For new designs, consider MINAS A6 series model MHMF042L1U2M with 23-bit encoder and 6500 rpm max speed.

Verify mounting dimensions and connector compatibility before substitution.

Quick Specifications

Type: MINAS A5 Family AC Servo Motor, High Inertia Type
Power: 400W (0.4 kW), 200V AC, 2.6A rated current
Torque: 1.3 N*m rated / 3.8 N*m peak
Speed: 3000 rpm rated / 5000-6000 rpm max
Encoder: 20-bit Incremental (1,048,576 pulses/rev)
Status: Discontinued (Obsolete)
