Panasonic MHMJ042G1V 400W High Inertia AC Servo Motor with IP65 Protection MINAS A5 Series

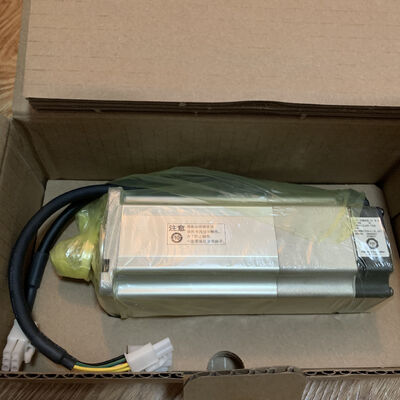

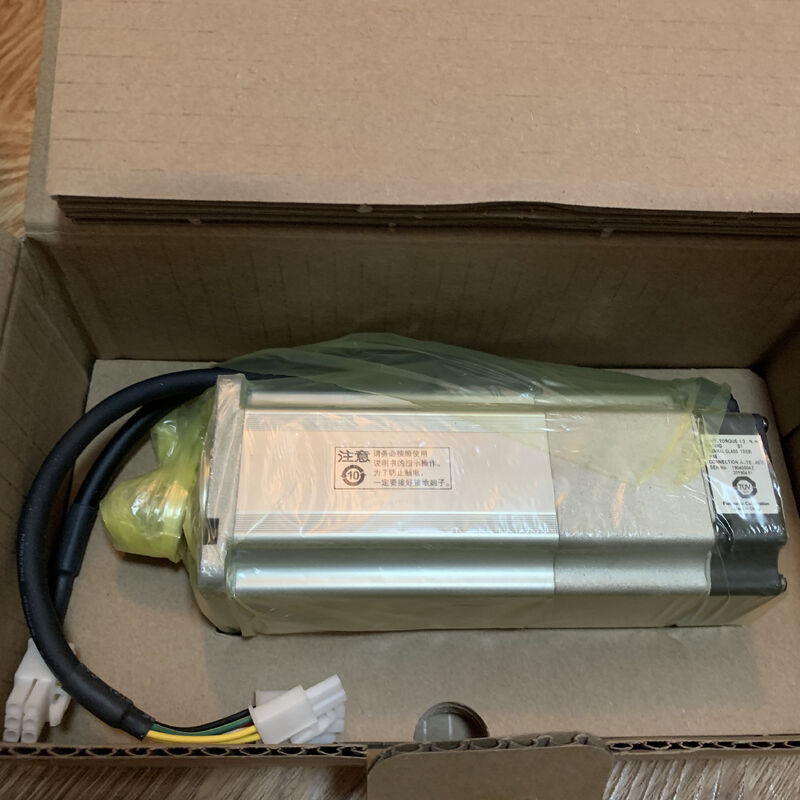

Large Image : Panasonic MHMJ042G1V 400W High Inertia AC Servo Motor with IP65 Protection MINAS A5 Series

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Certification:	CE UL ROSH
Model Number:	MHMJ042G1V

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/month

Contact Now Chat Now

Panasonic MHMJ042G1V 400W High Inertia AC Servo Motor with IP65 Protection MINAS A5 Series

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic AC Servo Driver A5 , Panasonic AC Servo Driver 400W , Panasonic Servo Motor 400w

Panasonic MHMJ042G1V Servo Motor 400W 200V AC High Inertia IP65 with Brake MINAS A5 Series

Discontinued Product - Last buy: July 31, 2022. Special Order Product - Avoid exporting to Japan or via Japan.

Product Overview

The Panasonic MHMJ042G1V is a high-inertia AC servo motor from the MINAS A5 family, featuring a built-in holding brake for vertical-axis applications. With a rated output of 400W and 200V AC power supply, this motor delivers reliable performance for precision motion control in industrial automation applications including small robotics, Z-axis positioning, pick-and-place equipment, and automated assembly systems.

The motor features a 20-bit incremental encoder with 1,048,576 pulses per revolution resolution for high positioning accuracy, IP65 environmental protection against dust and water jets, and a built-in holding brake for position retention during power-off conditions.

Key Features

400W Power Output: 400W rated output with 200V AC power supply, power supply capacity of 0.9 kVA
High Inertia Design: Rotor inertia of 0.70 × 10⁻⁴ kg*m² for stable load matching; recommended load inertia ratio of 30:1 or less
20-bit High-Resolution Encoder: 1,048,576 pulses/revolution resolution for precise positioning and smooth low-speed operation
Built-in Holding Brake: Integrated brake with 1.27 N*m static friction torque for vertical axis load holding - brake releases when energized
IP65 Protection Rating: Excellent protection against dust and water jets (excluding shaft rotating portion and leadwire ends)
Durable Construction: Key-way shaft with center tap and oil seal for reliable torque transmission and contamination protection
Lead Wire Configuration: Simple lead wire type for easy installation without additional connectors
Wide Speed Range: Rated speed of 3000 r/min, maximum speed of 5000 r/min for high-throughput applications
Robust Torque Output: Rated torque of 1.3 N*m, momentary maximum peak torque of 3.8 N*m for demanding acceleration requirements
Unlimited Regenerative Brake Frequency: No limit with or without optional external regenerative resistor DV0P4283
RoHS Compliant: Confirmed to not contain the 6 substances specified in EU RoHS Directive 2011/65/EU

Technical Specifications

Part Number	MHMJ042G1V
Family Name	MINAS A5 Family
Series	MHMJ Series
Type	High inertia, Lead wire type, IP65
Product Status	Discontinued
Rated Output	400 W
Voltage Specifications	200 V AC
Power Supply Capacity	0.9 kVA
Rated Current	2.6 A (rms)
Instantaneous Max Current	11.0 A (o-p)
Rated Torque	1.3 N*m
Momentary Max Peak Torque	3.8 N*m
Rated Rotational Speed	3000 r/min
Maximum Rotational Speed	5000 r/min
Rotor Moment of Inertia	0.70 × 10⁻⁴ kg*m²
Recommended Load Inertia Ratio	30 times or less
Rotary Encoder Type	20-bit Incremental system
Encoder Resolution	1,048,576 pulses/revolution
Protection Class	IP65 (excluding shaft and leadwire ends)
Shaft Type	Key-way, center tap
Holding Brake	With
Motor Lead-out Configuration	Lead wire
Flange Square Dimension	□60 mm
Mass	1.8 kg
Oil Seal	With
External Regenerative Resistor Option	DV0P4283
Regenerative Brake Frequency	No limit (with or without external resistor)

Brake Specifications

Static Friction Torque	1.27 N*m or more
Engaging Time	50 ms or less
Releasing Time	15 ms or less
Exciting Current (DC)	0.36 A
Exciting Voltage (DC)	24V ± 1.2V
Releasing Voltage (DC)	1V or more

Brake Operation Note: This brake releases when energized (power-off engaged). Do not use for braking the motor while in motion - it is designed for holding position only.

Permissible Load Specifications

Load Type	During Assembly	During Operation
Radial Load P-direction	392 N	245 N
Thrust Load A-direction	147 N	98 N
Thrust Load B-direction	196 N	98 N

For detailed permissible load information, refer to the Motor Specification Description "Permissible Load at Output Shaft".

Compatible Drivers

All compatible MINAS A5 series drivers are discontinued:

Part Number	Series	Type	Interface
MBDHT2510	A5 series	Speed, Position, Torque, Full-closed	Analog/Pulse
MBDHT2510E	A5E series	Position control type	Pulse train only
MBDHT2510N21	A5ⅡN series	RTEX Network	RTEX
MBDHT2510ND1	A5ⅡN series	RTEX Network	RTEX
MBDKT2510	A5Ⅱ series	Speed, Position, Torque, Full-closed	Analog/Pulse
MBDKT2510E	A5ⅡE series	Position control type	Pulse train only

Note: For replacement systems, consider upgrading to MINAS A6 series motor and driver combinations.

Applications

Vertical Axis Positioning - Z-axis stages, lift mechanisms, and elevators requiring position holding during power-off
Small Industrial Robotics - Articulated arms and SCARA robots requiring brake for pose maintenance
Pick-and-Place Equipment - Component placement systems with vertical motion
CNC Machinery - Small milling, routing, and engraving equipment
Packaging Machinery - Wrapping, filling, and sealing equipment with vertical axes
Automated Assembly Lines - Indexing operations requiring brake holding
Medical Equipment - Precision positioning devices with safety hold requirements
Semiconductor Manufacturing - Wafer handling and inspection equipment
