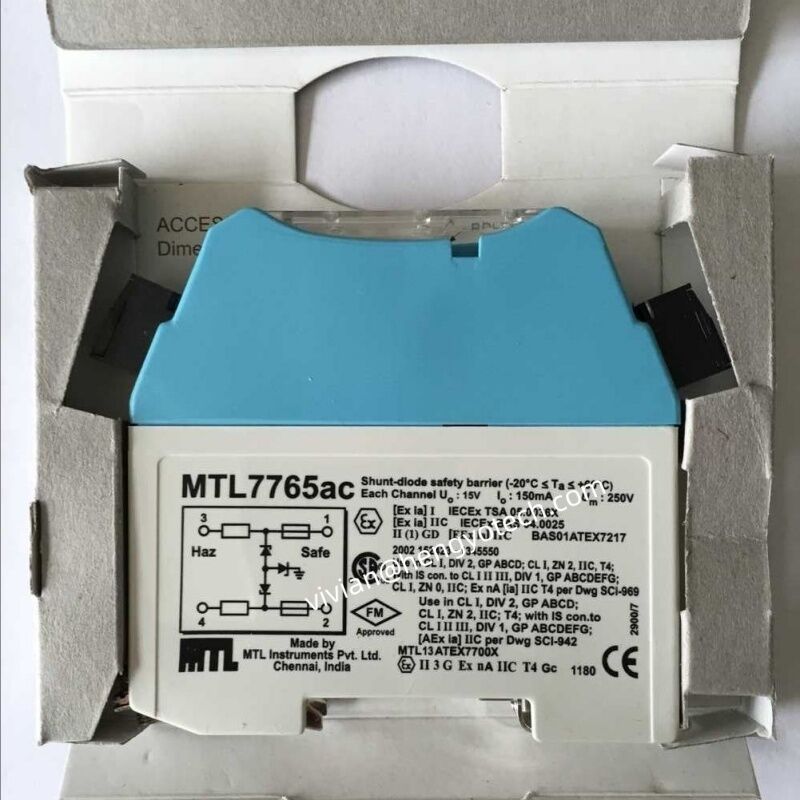

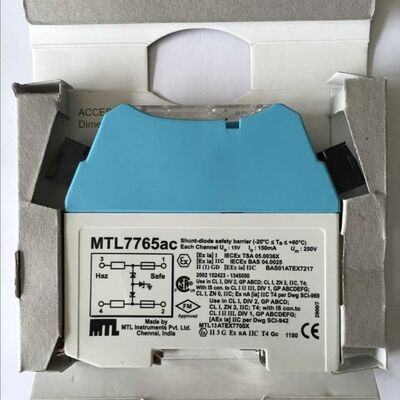

MTL7765AC Eaton MTL 2-Channel 15V Safety Description Zener Safety Barrier with DIN Rail Mounting

Large Image : MTL7765AC Eaton MTL 2-Channel 15V Safety Description Zener Safety Barrier with DIN Rail Mounting

Product Details:

Place of Origin:	England
Brand Name:	MTL
Certification:	Rosh
Model Number:	MTL7765AC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	200pcs/month

Contact Now Chat Now

MTL7765AC Eaton MTL 2-Channel 15V Safety Description Zener Safety Barrier with DIN Rail Mounting

Description

Condition:

MTL Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Oil Gas Chemical Industry

Highlight:

MTL Zener Barrier DIN-rail mounting

Eaton safety barriers with warranty

Intrinsic Safety Barrier MTL7765AC

MTL7765AC Eaton MTL 4-20mA Zener Safety Barrier

Product Overview
The MTL7765AC is a high-performance 2-channel shunt-diode safety barrier (Zener barrier) from Eaton's Crouse-Hinds series MTL7700 range, specifically engineered for AC/DC sensors, thermocouples, and low-level analog input applications requiring intrinsic safety protection in hazardous areas.

Model Number Decoding: MTL7765AC

Code Segment	Meaning
MTL	MTL Instruments Group (now Eaton)
77	MTL7700 series — Shunt-diode safety barriers
65	Specific barrier configuration for low-level AC/DC applications
AC	Non-polarized, star-connected barrier suitable for AC and DC circuits

Key Features & Benefits

2-Channel Efficiency: Two independent intrinsically safe channels in a single compact housing (just 6.3 mm per channel)
AC/DC Sensor & Thermocouple Optimization: Specifically designed for low-level analog input applications
15V Safety Description: Provides safe voltage limiting for low-level AC/DC circuits
100 Ω End-to-End Resistance: Optimized impedance for low-level analog input circuits
150mA Maximum Current: Adequate current handling for sensor inputs
Star-Connected Configuration: Versatile design allowing Vwkg to be developed from each channel to ground
Removable Terminals: Unique removable terminal blocks for easy cabling and maintenance
Bussed Power Capability: Integrated power distribution reduces cabling requirements
Angled Wire Entry: Assists wiring within limited space enclosures
Ultra-Slim DIN Rail Mounting: Compact 12.6 mm width for standard 35 mm T-section DIN rail

Technical Specifications

Electrical Ratings

Parameter	Value
Safety Description	15V, 100Ω, 150mA
Working Voltage (Vwkg)	15V AC
End-to-End Resistance	100Ω
Maximum Current	150mA

Mechanical Specifications

Parameter	Value
Width	12.6 mm
Height	90 mm
Depth	105 mm
Weight	0.105-0.214 kg
Mounting	35 mm T-section DIN rail (EN 60715)

Applications

Industry	Application
Oil & Gas	AC/DC sensor inputs and thermocouple protection on offshore platforms and refineries
Chemical Processing	Low-level analog input protection for temperature monitoring
Pharmaceutical	Thermocouple and sensor isolation for batch processing equipment
Factory Automation	AC proximity sensor and limit switch protection
Power Generation	Turbine monitoring systems with thermocouple and sensor inputs

Certifications & Approvals

Certification	Status	Region
CCC Ex (China)	Current	China
KCS (Korea)	Current	South Korea
ATEX	Certified	Europe
IECEx	Certified	International
RoHS	Compliant	—

Installation Information

Parameter	Detail
Mounting	Standard 35 mm T-section DIN rail (EN 60715)
Terminals	Removable screw terminals
Grounding	High-integrity earth connection made simultaneously when clipping onto DIN rail
Wire Entry	Angled to assist wiring in limited space enclosures

Ordering Information

Item	Details
Part Number	MTL7765AC
Brand	Eaton (Crouse-Hinds series MTL)
Product Family	MTL7700 Range — Shunt-Diode Safety Barriers
Condition	New, Original, Factory Sealed
