Pepperl+Fuchs KFU8-UFT-2.D Rotation Direction & Slip Monitor, 2-Channel Frequency Converter, 1kHz, Relay Outputs

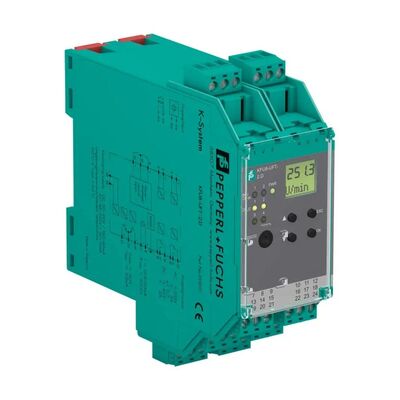

Large Image : Pepperl+Fuchs KFU8-UFT-2.D Rotation Direction & Slip Monitor, 2-Channel Frequency Converter, 1kHz, Relay Outputs

Product Details:

Place of Origin:	Singapore
Brand Name:	Pepperl+Fuchs
Certification:	CE
Model Number:	KFU8-UFT-2.D

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	P+F original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	200pcs/month

Contact Now Chat Now

Pepperl+Fuchs KFU8-UFT-2.D Rotation Direction & Slip Monitor, 2-Channel Frequency Converter, 1kHz, Relay Outputs

Description

Condition:

P+F Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Oil Gas Chemical Industry

Highlight:

Pepperl Fuchs safety barrier isolator

Frequency converter with synchronization monitor

Intrinsic safety barrier with direction monitor

Pepperl+Fuchs KFU8-UFT-2.D Rotation Direction & Slip Monitor

The Pepperl+Fuchs KFU8-UFT-2.D is a 2-channel frequency converter with direction and synchronization monitoring capabilities. This versatile signal conditioner analyzes two digital signals from NAMUR sensors or mechanical contacts, functioning as a rotation direction indicator, slip monitor, frequency monitor, or synchronization monitor.

Key Specifications

Parameter	Specification
Model	KFU8-UFT-2.D
Input Types	NAMUR (EN 60947-5-6) or Dry Contact
Input Frequency Range	0.001 Hz to 1 kHz (Rotation monitoring: 0.001-1000 Hz / Slip monitoring: 10-1000 Hz)
Outputs	2 Relay (Form C) + 2 Transistor + 1 Analog (0/4-20 mA)
Supply Voltage	20-90V DC / 48-253V AC (50-60 Hz)
Accuracy	Frequency: 0.5% of measured value; Slip: 1%
Response Time	Measuring time: <100 ms; Relay response: ≤200 ms
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Protection Rating	IP20
Dimensions	40 x 119 x 115 mm (1.6 x 4.7 x 4.5 in)

Core Functions

Rotation Direction Monitoring: Detects forward/reverse rotation from 0.001 Hz to 1000 Hz
Slip Monitoring: Detects differential speed between two signals (10-1000 Hz range)
Synchronization Monitoring: Compares two input signals for proper alignment
Frequency Monitoring: Converts frequency signals to analog outputs for PLC/DCS systems

Key Features

Multi-Function Design

Combines frequency conversion, direction monitoring, slip detection, and synchronization monitoring in one compact device

Versatile Output Options

5 independent outputs (2 relay + 2 transistor + 1 analog) provide maximum control flexibility

Universal Compatibility

Accepts NAMUR sensors or dry contacts with universal AC/DC power supply for global applications

Enhanced Diagnostics

Line fault detection monitors for wire breakage and short-circuit conditions with LED status indicators

Easy Configuration

On-board keypad with display or PACTware software for simple setup and commissioning

Safety & Reliability

Reinforced galvanic isolation (300 Veff) ensures signal integrity and operator safety

Applications

Industry	Application Examples
Material Handling	Conveyor speed monitoring, belt slip detection
Motor Control	Rotation direction monitoring, speed feedback
Factory Automation	Constant velocity monitoring, flow monitoring
Process Automation	Pump speed monitoring, fan monitoring
Machine Building	Frequency-to-current conversion for PLC inputs
Packaging	Web tension control, synchronization of multiple drives

Technical Details

Wiring Connections

Terminal	Function
1+, 3-	Input I: NAMUR sensor or dry contact (channel 1)
4+, 6-	Input II: NAMUR sensor or dry contact (channel 2)
10, 11, 12	Output I: Relay 1 (Form C changeover)
16, 17, 18	Output II: Relay 2 (Form C changeover)
7-, 8+	Output V: Analog output (0/4-20 mA)
23, 24	Power supply: 20-90V DC or 48-253V AC

Certifications & Compliance

CE Marking (2014/30/EU, 2014/35/EU)
UKCA Conformity Assessed
RoHS Compliant
EMC: EN 61326-1:2013
Low Voltage: EN 61010-1:2010

Technical Support & Ordering

Part Number: KFU8-UFT-2.D (Alternative: 231201)

Country of Origin: Germany

Technical specifications and complete datasheets
Volume pricing and availability
Installation and wiring guidance
PACTware configuration support
Application engineering support
