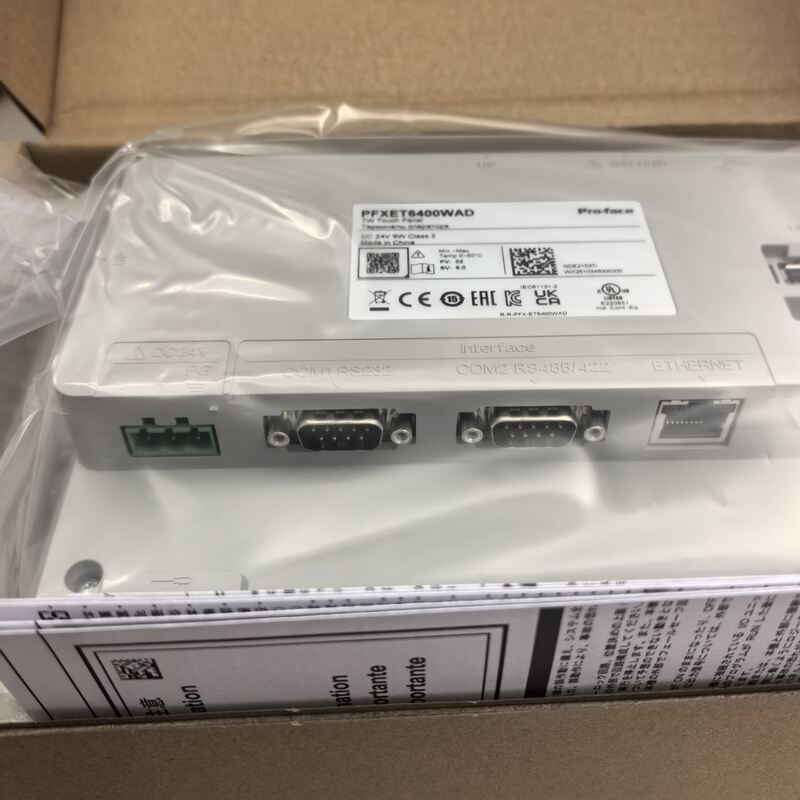

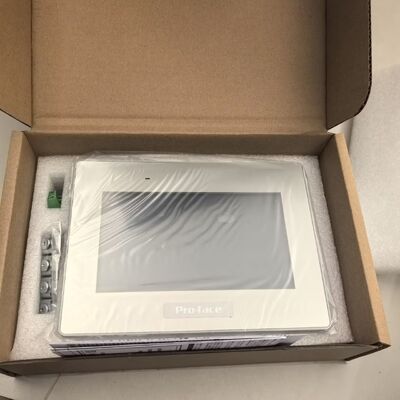

PFXET6400WAD Proface HMI 7 Inch Touch Screen

Large Image : PFXET6400WAD Proface HMI 7 Inch Touch Screen

Product Details:

Place of Origin:	China
Brand Name:	Proface
Model Number:	PFXET6400WAD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	price negotiation

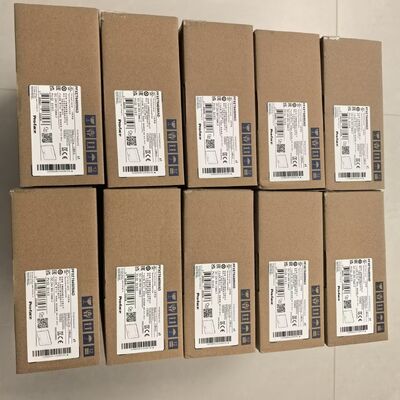

Packaging Details:	original package cover with good quality carton case
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/months

Contact Now Chat Now

PFXET6400WAD Proface HMI 7 Inch Touch Screen

Description

Shipping Way:

DHL FedEx Express

Application:

Automation Industries, Oil, Gas, Chemical Industries

Certificate:

CE ISO TUV

Highlight:

Proface HMI 7 Inch

Proface HMI Touch Screen

PFXET6400WAD

PFXET6400WAD Proface HMI 7 Inch Touch Screen

Product Overview

Family	HMI
Series	GC4000 Series
Size	7" Wide
Model	PFXGE4401WAD
Global Code	PFXGE4401WAD
End of Sales	2017/09/29
End of Repair	2019/12/28

Replacement Information

Replacement Code	PFXET6400WAD
Replacement Series	ET6000 Series
Replacement Features	DC power supply, TFT color LCD

Display Specifications

Display Type	TFT Color LCD
Display Size	7.0"
Resolution	800 x 480 pixels (WVGA)
Effective Display Area	W154.08 x H85.92 mm [W6.066 x H3.382 in.]
Display Colors	65,536 colors
Backlight	LED
Backlight Service Life	20,000 hrs. or more (continuous operation at 25°C before brightness decreases to 50%)
Brightness Control	8 Levels (Software adjustable)
Touch Panel Type	Resistive Film (analog)
Touch Panel Lifetime	1,000,000 times or more, Sweeping 100,000 times or more

Language & Font Support

Language Fonts	Chinese (Simplified)
Character Sizes	Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts
Font Scaling	Width: 1 to 8 times, Height: 1/2 and 1 to 8 times

Electrical Specifications

Rated Input Voltage	24 Vdc
Allowable Voltage Drop	1 ms or less with lowest input voltage, 10 ms or less with rated input voltage
Power Consumption	8.2W
In-rush Current	50 A or less
Voltage Endurance	600 Vac, 20 mA for 1 minute
Insulation Resistance	500 Vdc, 10 MΩ or more (between power terminal and FG terminals)

Environmental Specifications

International Safety Standards
Operating Temperature	0 to 50 °C [32 to 122 °F]
Storage Temperature	-20 to +60 °C [-4 to 140 °F]
Ambient Humidity	85 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)
Storage Humidity	10% to 90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less)
Dust Resistance	0.1 mg/m³ (10⁻⁷ oz/ft³) or less (non-conductive levels)
Pollution Degree	For use in Pollution Degree 2 environment
Corrosive Gases	Free of corrosive gases
Altitude Range	2,000 m [6,561 ft.] max.

Durability & Resistance

Vibration Resistance	IEC/EN60068-2-6, 5 to 150 Hz, 3.5 mm (0.38 in) max., 1gn pm 3 axes
Concussion Resistance	IEC 60068-2-27, 1/2 sinusoidal pulse for 11 ms, 15g on 3 axes
Electrostatic Discharge Immunity	EN/IEC 61131-2, 4 kV direct contact, 8 kV air contact
Electromagnetic Compatibility (EMC)	IEC 61000 - 4 - 5, 0.5 kV (Differential Mode on power supply), 1 kV (Common Mode on power supply)

Memory & Clock

Application Memory	FLASH EPROM 8 MB
Backup Memory	FLASH EPROM 128 KB
Clock Accuracy	Variations in operating conditions and battery life can cause a clock inaccuracy from -380 to +90 seconds per month.

Interface Specifications

Serial (COM1)	Asynchronous Transmission: RS-232C, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 (plug)
Serial (COM2)	Asynchronous Transmission: RS-422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 187,500 bps, Connector: D-Sub 9 pin (plug)
USB (Type A)	Conforms to USB 2.0 (Type A) x 1, Communication distance: 5 m [16.4 ft.] or less
USB (mini-B)	Conforms to USB (mini-B) x 1, Used in Project file upload/download

Structural Specifications

Grounding	Functional grounding: Grounding resistance of 0.1 Ω, 2mm² (AWG 14)
Cooling Method	Natural air circulation
Enclosure Rating	Front Panel: IP65 (IEC60529), Enclosure type 4 indoor use only (UL 50) with screw installation fasteners, Rear Panel: IP20 (IEC 60529)
External Dimensions	W207.8 x H153.2 x D59.8 mm [W8.18 x H6.03 x D2.35 in.]

Panel Cut-out Dimensions

A	B	C (Panel Thickness)	R
190±1 mm (7.48±0.04 in.)	135±0.7 mm (5.31±0.03 in.)	1.5 to 10 mm (0.06 to 0.39 in.)	3 mm (0.12 in.) max.
