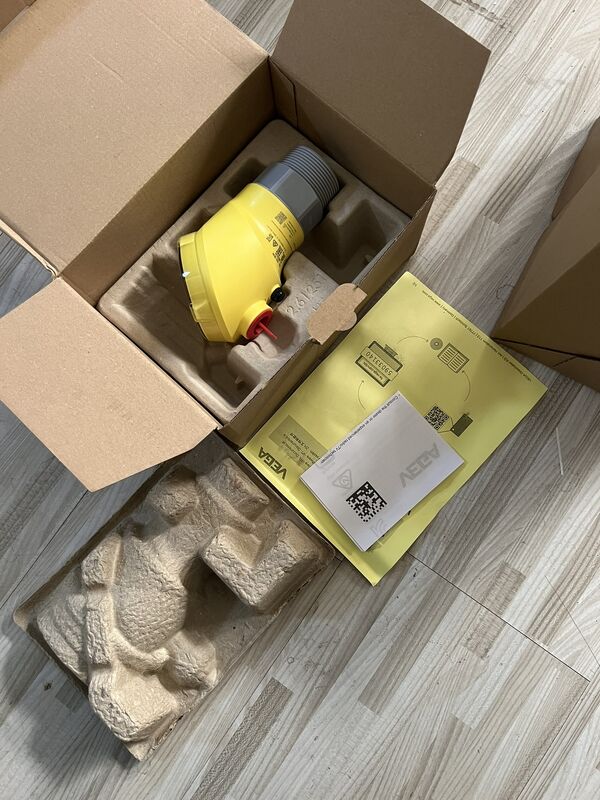

VEGAPULS 31 Compact VEGA Radar Sensor For Continuous Level Measurement

Large Image : VEGAPULS 31 Compact VEGA Radar Sensor For Continuous Level Measurement

Product Details:

Place of Origin:	Germany
Brand Name:	VEGA
Model Number:	VEGAPULS 31

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	200pcs/month

Contact Now Chat Now

VEGAPULS 31 Compact VEGA Radar Sensor For Continuous Level Measurement

Description

Condition:	Original Package	Warranty:	One Year
Application:	For Continuous Level Measurement	Materials:	Wetted Parts 316L, PP, PTFE Or PEEK; Seal FKM, FFKM, EPDM Or PTFEA
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Compact VEGA Radar Sensor , Compact VEGA Level Radar Sensor , VEGA VEGAPULS 31

Application area

4 ... 20 mA/HART output, measuring range up to 20 m, accuracy ±2 mm, Ex approval optional, on-site display and 3-button operation

VEGAPULS 31 is the ideal sensor for non-contact level measurement of liquids and bulk solids in simple applications. It is particularly suitable for use in water treatment, storage tanks with acids, lyes and additives in all industrial areas, or for measuring levels in plastic tanks from the outside through the tank wall. In bulk solids the sensors are used in small bulk solids silos or open containers.

Technical specifications
Measuring range - Distance
20 m [Meter - Foot]
Process temperature
-40 ... 80 °C [°C - °F]
Process pressure
-1 ... 3 bar [Bar - kPa - psi]
Accuracy
± 2 mm
Frequency
80 GHz
Beam angle
8°
Materials, wetted parts
PVDF
Threaded connection
G1½, 1½ NPT, R1½
Seal material
FKM
Housing material
Plastic
Protection rating
IP66/IP67, Type 4X
Output
4 … 20 mA/HART
Ambient temperature
-40 ... 70 °C
