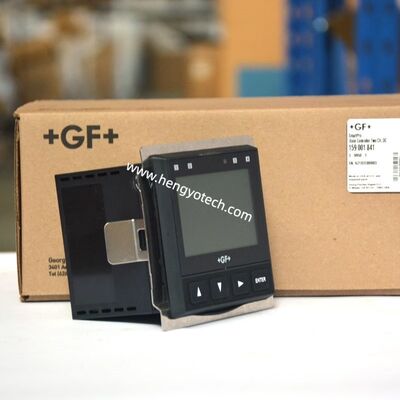

Type 9950 Multichannel Transmitter
Product description
The 9950 is a multi-channel, multi-sensor transmitter designed to meet and exceed the industry standards, and expectations for a small, compact, ¼” DIN Transmitter. The power and versatility of the 9950 allows the use of up to six GF sensors to manage complex water treatment applications.
The 9950 analyzer supports ALL like sensors or a mix of any GF sensors. Sensor types and accessories supported by the 9950 are GF Flow (Frequency and/or digital S³L), pH/ORP,
Conductivity/Resistivity, Salinity, Temperature, Pressure, Level, Dissolved Oxygen, and any device that transmits a 4 to 20 mA signal when used with the 3-8058 iGo® Signal Converter.
The 9950 base unit comes complete with two each 4 to 20 mA output, two additional dual 4 to 20 mA output modules can be installed to increase the number of 4 to 20 mA outputs to a total of 6 outputs.
Four Conductivity sensor measurements are supported with either a single or dual channel conductivity module. If 6 conductivity sensors are required, the use of a 3-2850-X1-XX can be added to the main S³L input terminals.
The 9950 supports any one of the following relay modules:
• Four Mechanical Relay Module
• Two Mechanical and Two Solid State Relay Module
• Two Mechanical Relays and Four Binary Inputs Module
The 3-9950.393-3 Relay Module provides four binary inputs that are compatible with any open collector or mechanical contacts, such as level switches, flow switches, pressure switches or other devices. The 9950 offers advanced features such as derived functions, advanced multiple relay modes (Boolean logic), and timer-based relay functions.
The 9950 Modbus Module allows for remote access to primary and secondary measurements, derived functions, status of current loop outputs and relays, over a serial RS485 Modbus automation network.
Features
| • Up to six different sensor types can be combined in one instrument• Derived measurements - Delta, Sum, ratio, % recovery, % reject , % passage• Advanced boolean logic -A | B | C, A & B & C, A | (B & C), A & (B | C)• Single and Dual Channel Direct Conductivity/Resistivity Modules• Up to four on board relays via optional modules, and up to 4 external DIN Railmounted Relays via optional 8059 module (six input option only)• Optional Modbus RTU Module for connections to Serial RS485 automationnetworks• Configurable display• Multiple language support for English, French, German and Spanish |
FMAPPROVEDMEASURING EQUIPMENTE171559 |
Applications
• Wastewater Treatment
• Membrane and Media Filtration
• RO / DI Skids and Systems
• Chemical Manufacturing/Addition
• Metal and Plastic Finishing
• Fume Scrubber
• Cooling Towers
• Horticulture/ Vertical Farming
• Chemical Dosing/Injection
• Aquatic Life Support
• Pools & Fountains
• Rinse Tanks
• Chemical Neutralization
• Mining
