SD32T3 MTL Surge Protection Device Surge Arrestor with 5kA Surge Current 22 Vac 32 Vdc and IP54 Rating

Large Image : SD32T3 MTL Surge Protection Device Surge Arrestor with 5kA Surge Current 22 Vac 32 Vdc and IP54 Rating

Product Details:

Place of Origin:	India
Brand Name:	MTL
Model Number:	SD32T3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

SD32T3 MTL Surge Protection Device Surge Arrestor with 5kA Surge Current 22 Vac 32 Vdc and IP54 Rating

Description

Condition:	Original Brand New	Warranty:	One Year
Series:	Eaton Crouse-Hinds Series	Shipping Way:	DHL FedEx Express
Application:	Automation Industries, Oil, Gas, Chemical Industries	Certificate:	CE ISO TUV
Highlight:	Surge Protection Device 22 Vac , Surge Protection Device 32 Vdc

SD32T3 MTL Surge Protection Device

Eaton Crouse-Hinds series MTL SD surge protector designed for protecting electronic equipment and systems against surges on signal and I/O cabling. This surge arrestor features 22V AC / 32V DC nominal voltage with 5kA surge current capacity.

Key Specifications

Catalog Number	SD32T3
Product Type	Surge Protector
Nominal Voltage AC	22V
Nominal Voltage DC	32V
Nominal Discharge Surge Current	5 kA (8/20)
Lightning Impulse Current	2.8 kA (10/350 µs)
Nominal Load Current	400mA
Voltage Protection Level	75V at In, <45V at 1kV/µS

Technical Features

Response Time: <1ns
Frequency: 720 kHz
Series Resistance: 2.2Ω/Line
Max. Leakage Current: 5µA
Max. Continuous Voltage AC: 36V
Conductor Cross-section: 12 AWG

Environmental & Safety Ratings

Area Classification	Hazardous/Classified Locations
IECEx/ATEX Hazardous Rating	Zone 2
Ingress Protection	IP54
Operating Temperature	-40°C to 80°C
Humidity	5-95% RH (non-condensing)
Standards Compliance	IEC/EN 61643-21

Physical Specifications

Dimensions (L x H x W)	99 mm x 101.3 mm x 7 mm
Weight	70 g
Mounting Method	T-section DIN rail
Terminals	3 terminal

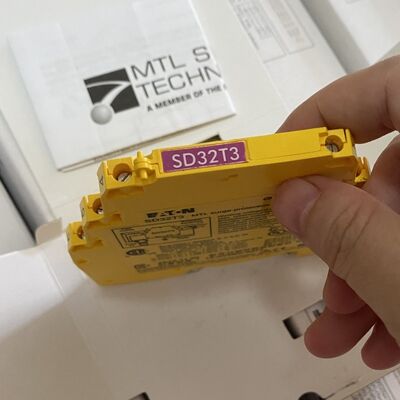

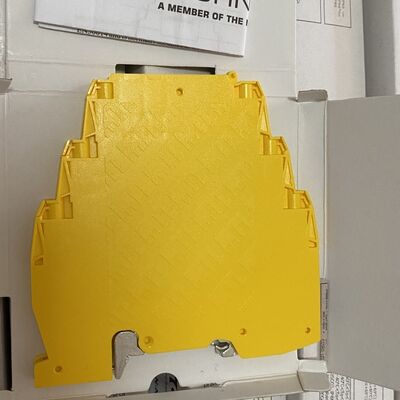

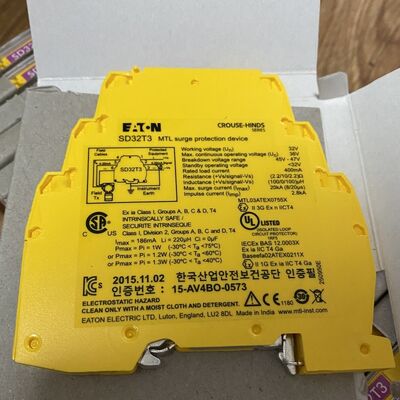

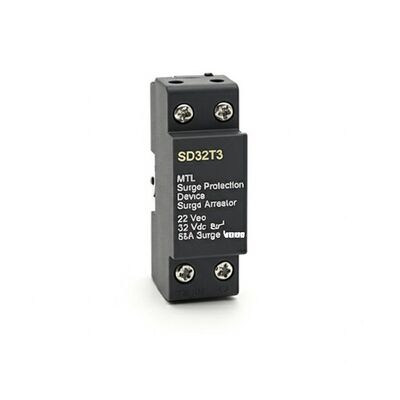

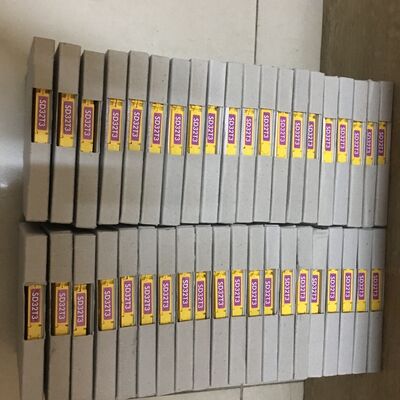

Product Images
