MTL ZB24540 ZoneBarrier 100Base-T Ethernet Surge Protector with 8kA Surge Capacity and 155 MHz Bandwidth

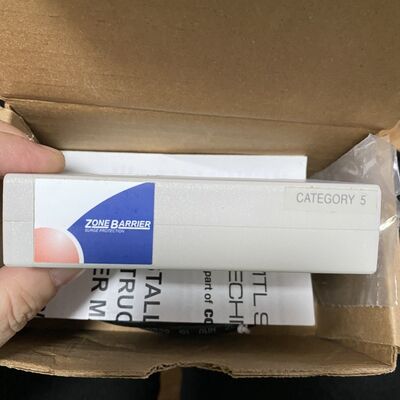

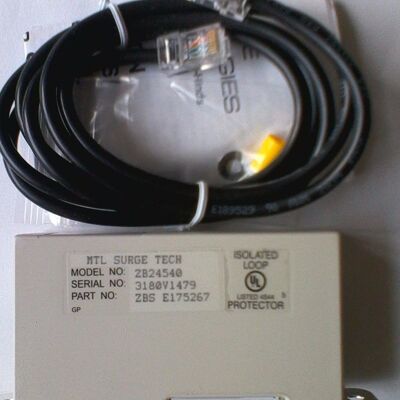

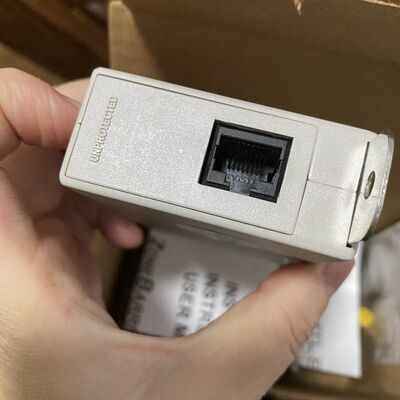

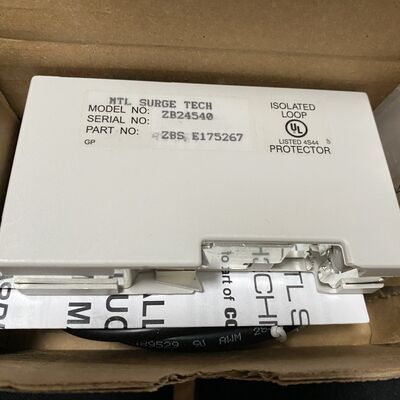

Large Image : MTL ZB24540 ZoneBarrier 100Base-T Ethernet Surge Protector with 8kA Surge Capacity and 155 MHz Bandwidth

Product Details:

Place of Origin:	India
Brand Name:	MTL
Certification:	CE UL
Model Number:	ZB24540

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original pacakge
Delivery Time:	ship out immediately after payment received
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

MTL ZB24540 ZoneBarrier 100Base-T Ethernet Surge Protector with 8kA Surge Capacity and 155 MHz Bandwidth

Description

Condition:	Original Brand New	Warranty:	One Year
Series:	Eaton Crouse-Hinds Series	Shipping Way:	DHL FedEx Express
Application:	Automation Industries, Oil, Gas, Chemical Industries	Certificate:	CE ISO TUV
Highlight:	MTL Zone Barrier , ZB24540 , Network Surge Protector 5V

MTL ZB24540 ZoneBarrier 5V RJ45 Industrial Surge Protector 1kA, DIN Rail Mount

Product Overview

The MTL ZB24540 is a high-performance surge protection device from Eaton's Crouse-Hinds MTL ZoneBarrier series, specifically engineered for 100Base-T Ethernet networks. Featuring a standard RJ45 connector interface, this module provides comprehensive protection for 8-wire twisted pair Ethernet communication lines against damaging voltage transients and lightning-induced surges.

The ZoneBarrier series employs advanced hybrid protection circuitry combining high-energy gas discharge tubes with ultra-fast diodes and silicon avalanche diodes. This sophisticated design delivers characteristically low let-through voltages while maintaining high surge current handling capability, ensuring reliable protection without interfering with normal network operation.

Technical Specifications

Parameter	Value
Model	ZB24540
Manufacturer	Eaton MTL (Crouse-Hinds series)
Product Series	ZoneBarrier
Application	100Base-T Ethernet
Connector Type	RJ45 (8-pin)
Working Voltage	5V
Limiting Voltage	10V
Maximum Surge Current (total)	8kA (8/20µs)
Maximum Surge Current (per line)	1kA (8/20µs)
Bandwidth	155 MHz
Mounting Type	DIN rail / Wall / 19-inch rack
Dimensions	128 x 25 x 57mm
Weight	0.08 kg (2.8 oz)
Operating Temperature	-40°C to +85°C

Key Features & Benefits

Advanced Hybrid Protection Circuitry

Combines high-energy gas discharge tubes with ultra-fast diodes and silicon avalanche diodes for low let-through voltages and high surge capacity of 8kA total (1kA per line).

High Bandwidth for Signal Integrity

155 MHz bandwidth maintains excellent signal integrity for 100Base-T Ethernet with low insertion loss and minimal signal degradation.

Modular ZoneBarrier Design

Scalable architecture supporting up to 32 modules on rail kits for flexible system expansion from single-port to large-scale network protection.

Versatile Mounting Options

Supports wall mounting, DIN rail mounting, and 19-inch rack integration to suit various application requirements.

RJ45 Interface

Standard 8-pin RJ45 connector for easy integration with Category 5e and higher cabling systems - plug-and-play installation.

Wide Operating Temperature Range

Rated for operation from -40°C to +85°C, suitable for harsh industrial environments including outdoor installations.

Applications

Application Area	Details
Industrial Ethernet Networks	100Base-TX industrial control networks
SCADA Systems	Remote monitoring and control communications
Building Automation	HVAC, lighting, and access control systems
CCTV Surveillance	IP camera network connections
Process Control	Ethernet-based field device communications
Oil & Gas Facilities	Refinery and pipeline monitoring networks
Chemical Plants	Hazardous area instrumentation networks
Power Utilities	Substation automation and monitoring

Environmental Compliance

EU RoHS Compliant EU REACH Compliant China RoHS 2 Compliant

The MTL ZB24540 meets key global environmental and regulatory standards for hazardous substance restrictions.

Installation Guidelines

DIN Rail Mounting: Snap the device onto standard 35mm top-hat DIN rail until it clicks securely into place
Wall Mounting: Secure the device using the integrated mounting holes
Rack Mounting: Install multiple units on a ZoneBarrier rail kit for 19-inch rack integration

Grounding Requirements: The ZB24540 automatically establishes ground connection when mounted on grounded DIN rail. For wall or rack mounting, ensure a dedicated low-impedance ground path is provided following local electrical codes.

Product Summary

The MTL ZB24540 ZoneBarrier Surge Protector delivers reliable, high-performance protection for 100Base-T Ethernet networks in industrial environments. With its 8kA surge capacity, 155 MHz bandwidth, RJ45 interface, and modular design, the ZB24540 is the ideal choice for protecting critical Ethernet communication infrastructure from costly surge damage.

✅ 100Base-T Ethernet protection with RJ45 connectivity
✅ 8kA total surge capacity (1kA per line)
✅ 155 MHz bandwidth - maintains signal integrity
✅ Modular design - scalable from 1 to 32 ports
✅ Multiple mounting options - DIN rail, wall, or 19-inch rack
✅ Wide temperature range - -40°C to +85°C operation
✅ Global compliance - RoHS, REACH, China RoHS
