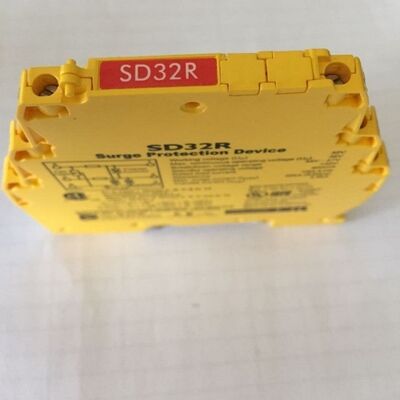

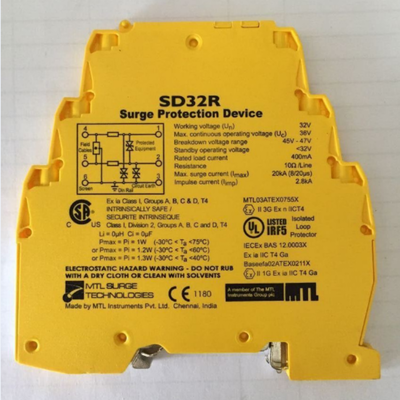

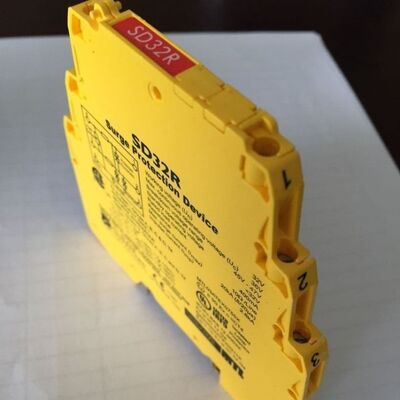

Eaton MTL SD32R | High Bandwidth Surge Protection Device

Product Overview

The SD32R is a high-performance surge protection device (SPD) designed to safeguard sensitive electronic equipment, process I/O systems, and communication networks from damaging voltage transients and lightning-induced surges. Manufactured under the Eaton MTL / Weidmuller SD series platform, this ultra-slim DIN rail mount module combines multistage hybrid protection circuitry with a space-saving footprint, making it the ideal choice for industrial control cabinets with limited panel space.

With a maximum surge current capacity of 20kA (8/20 µs) and a sub-nanosecond response time (<1ns), the SD32R provides reliable, maintenance-free protection for 2-wire and 3-wire loops, including 4-20mA transmitters, HART communicators, PROFIBUS DP/PA, and RS485 networks.

Technical Specifications

Parameter	Value
Model	SD32R
Nominal Voltage (DC)	32 V
Nominal Voltage (AC)	22 V
Nominal Current	400 mA
Max. Surge Current (8/20 µs)	20 kA
Nominal Discharge Current (8/20 µs)	3 kA
Response Time	< 1 ns
Bandwidth	0 - 50 MHz (up to 25MHz typical)
Mounting Method	DIN rail (35mm top-hat rail)
Resistance per Line	10 Ω
Operating Temperature	-40°C to +80°C
Warranty	10 years

Specifications sourced from manufacturer datasheets.

Features & Benefits

Ultra-Slim Space-Saving Design

The SD32R features an exceptionally slim footprint, allowing it to be mounted on standard 35mm DIN rails with high packing density. Multiple modules can be placed side-by-side without sacrificing ventilation or accessibility, effectively doubling as feed-through terminals to maximize cabinet space.

Multistage Hybrid Protection Circuitry

Utilizing advanced hybrid technology (combining gas discharge tubes, varistors, and transient voltage suppression diodes), the SD32R provides full line-to-line and line-to-ground protection. This 3-stage design ensures low let-through voltage and rapid response to both fast transients and high-energy surges.

High Bandwidth for Data Integrity

With a wide bandwidth of up to 50MHz and low insertion loss, the SD32R maintains signal integrity for high-speed communication protocols. It is fully compatible with:

PROFIBUS DP/PA
RS485 / Modbus
HART (Highway Addressable Remote Transducer)
Fieldbus Foundation
4-20mA loops (conventional & smart)

ATEX Certified for Hazardous Areas

The SD32R is ATEX certified as an intrinsically safe surge protector, making it suitable for use in potentially explosive atmospheres (gas and dust environments) without the need for heavy enclosures.

Optional Loop Disconnect Facility

The SD32R includes a convenient loop disconnect feature (fuse-disconnect terminal block functionality), allowing technicians to open the current loop for commissioning, calibration, or maintenance without physically removing the surge protection device. This significantly reduces downtime and wiring errors.

Application Scenarios

Application Area	Specific Use Cases
Process Control	2-wire & 3-wire 4-20mA transmitters (pressure, temperature, flow)
Safety Systems	Emergency shutdown (ESD) systems, fire & gas detectors
Industrial Networks	PROFIBUS DP/PA, Modbus RS485, HART multiplexers
Low-Level Signals	Thermocouples, RTDs (PT100), strain gauges, load cells
Discrete I/O	PLC digital inputs/outputs, solenoid valves, alarms, LEDs

For 3-wire RTD applications, consider the SDRTD or SD32T3. For 110-240V AC power supplies, consider SD150X / SD275X
