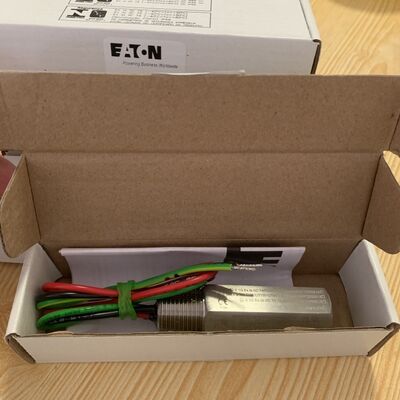

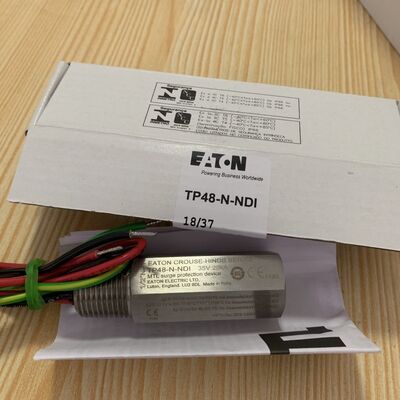

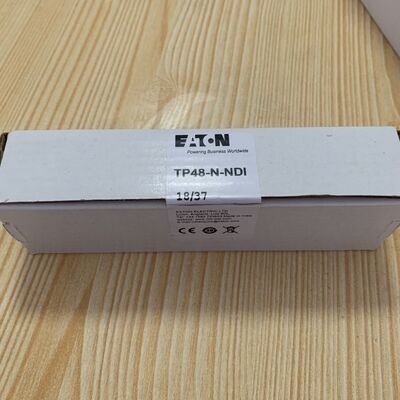

MTL Surge Protection Device TP48-N-NDI

Large Image : MTL Surge Protection Device TP48-N-NDI

Product Details:

Place of Origin:	India
Brand Name:	MTL
Model Number:	TP48-N-NDI

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

MTL Surge Protection Device TP48-N-NDI

Description

Condition:	Original Brand New	Warranty:	One Year
Series:	Eaton Crouse-Hinds Series	Shipping Way:	DHL FedEx Express
Application:	Automation Industries, Oil, Gas, Chemical Industries	Certificate:	CE ISO TUV
Highlight:	Surge Protection Device TP48-N-NDI , Stainless Steel Surge Protection Device

Eaton Crouse-Hinds series MTL TP48 surge protector, 35V, 10kA surge current, 316 stainless steel, <76V protection level, 3 flying leads (line 1, line 2 and earth), 18 AWG, 1/2" NPT, Certified

Product Name	Eaton Crouse-Hinds series MTL TP48 surge protector
Product Name	Eaton Crouse-Hinds series MTL TP48 surge protector
Catalog Number	TP48-N-NDI
Product Length/Depth	75 mm
Product Height	27 mm
Product Width	23 mm
Product Weight	175 g
Global Catalog	TP48-N-NDI
Product Type	Surge protector

Area classification	Hazardous/Classified Locations
Standards type	NEC/CEC IECEx/ATEX IEC
IECEx/ATEX hazardous rating	Zone 2
Ingress protection (IP) ratings	IP66
Material	316 stainless steel
Type	Certified
Frequency	1 MHz
Thread Size	1/2" NPT
Category Tested Acc. IEC 61643-21	A2, B2, C1, C2, C3, D1
Connection Details	3 flying leads (line 1, line 2 and earth)
Conductor Cross-section AWG	18 AWG
Minimum Ambient Operating Temperature	-40 °C
Maximum Ambient Operating Temperature	60 °C
Minimum Ambient Storage Temperature	-40 °C
Maximum Ambient Storage Temperature	85 °C
Humidity	5-95% RH (non-condensing)
Modes of Protection	Safeguards electronic process transmitters against induced surges and transients from field cabling
Nominal Voltage DC	35V
Nominal Discharge Surge Current (8/20)	10 kA
Lightning Impulse Current (10/350 µs)	2.5 kA
Voltage Protection Level at In	90V
Voltage Protection Level at 1kV/µS	<76V
Max. Leakage Current	<1μA
Max. Continuous Voltage DC	58V
IEC	IEC 61508 IEC 61511
