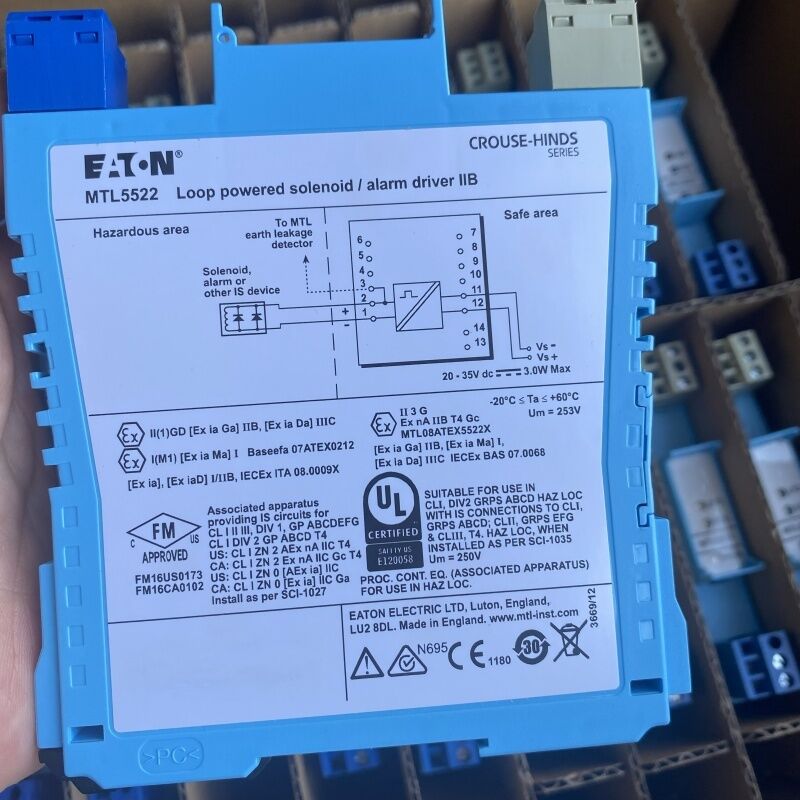

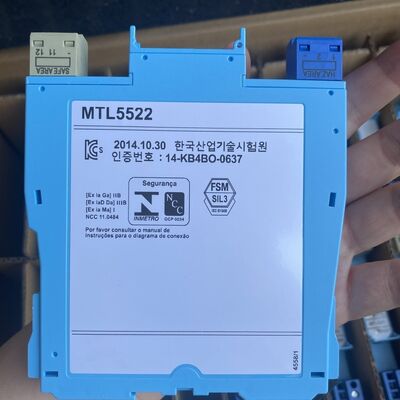

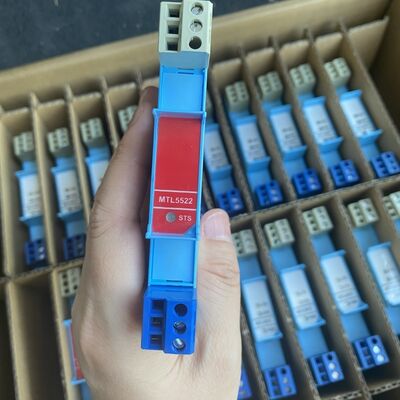

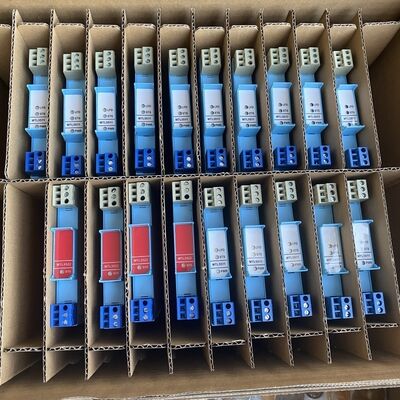

MTL5522 MTL Safety Barrier Isolator Zener Barrier

MTL5522 MTL Safety Barrier Isolator Zener Barrier
MTL5522 MTL Safety Barrier Isolator Zener Barrier MTL5522 MTL Safety Barrier Isolator Zener Barrier MTL5522 MTL Safety Barrier Isolator Zener Barrier MTL5522 MTL Safety Barrier Isolator Zener Barrier

Large Image :  MTL5522 MTL Safety Barrier Isolator Zener Barrier

Product Details:
Place of Origin: England
Brand Name: MTL
Model Number: MTL5522
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: original package
Delivery Time: 3 working days
Payment Terms: T/T,Western Union
Supply Ability: 500pcs/month
Contact Now Chat Now

MTL5522 MTL Safety Barrier Isolator Zener Barrier

Description
Condition: Original Brand New Warranty: One Year
Shipping Way: DHL FedEx Express Application: Automation Industries, Oil, Gas, Chemical Industries
Certificate: CE ISO TUV
Highlight:

MTL Safety Barrier Isolator

,

Zener Barrier for Intrinsic Safety

,

MTL5522 Safety Barrier with Warranty

MTL5522 MTL Safety Barrier Isolator Zener Barrier
Eaton Crouse-Hinds series MTL5500 solenoid/alarm driver, 1 channel, Digital output, 20-35 Vdc power supply, 1.4W at 24V dissipation, 125mA at 24V current consumption, LED indication: Yellow = status, Loop-powered, IIB
Product Specifications
Product Name Eaton Crouse-Hinds series MTL5500 solenoid/alarm driver
Catalog Number MTL5522 - FSM ASSESSED
EAN 3066227675830
Product Dimensions 109.8 mm (Length/Depth) × 118.8 mm (Height) × 15.8 mm (Width)
Product Weight 150 g
Global Catalog MTL5522
Product Type Solenoid/alarm driver
Type Loop-powered, IIB
Environmental & Safety Specifications
Area Classification Hazardous/Classified Locations
Standards Type IEC, IECEx/ATEX
IECEx/ATEX Hazardous Rating Zone 0
Operating Temperature -20 °C to 60 °C
Storage Temperature -40 °C to 80 °C
Humidity 5-95% relative humidity
Safety Integrity Level (IEC61508) SIL1 and SIL3
EMC EN61326
Electrical Specifications
Signal Type Digital output
Response Time Output within 10% of final value within 100ms
Number of Channels 1
Power Supply 20-35 Vdc
Current Consumption 125mA at 24V
Current Limit 70mA minimum
Minimum Output Voltage 10.7V at 70mA
Maximum Output Voltage 24V from 158Ω
Power Dissipation 1.4W at 24V
Ripple <0.5% of maximum output, peak-to-peak
Galvanic Isolation 250V rms between safe-area circuits and power supply
Physical & Installation
Terminal Capacity Accepts conductors of up to 2.5mm² stranded or single-core
Electrical Connection Crimp ferrules
Mounting Method T-section 35mm DIN rail
LED Indication Yes
LED Color - Status Yellow
MTL5522 MTL Safety Barrier Isolator Zener Barrier 0
