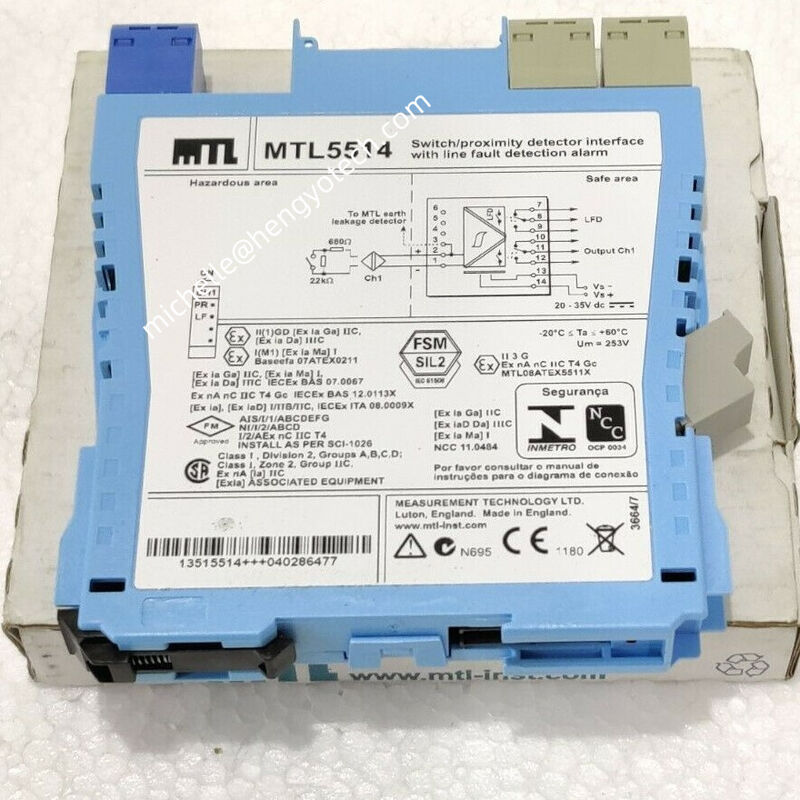

MTL5514 MTL Safety Barrier Safe Isolators

Large Image : MTL5514 MTL Safety Barrier Safe Isolators

Product Details:

Place of Origin:	England
Brand Name:	MTL
Model Number:	MTL5514

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

MTL5514 MTL Safety Barrier Safe Isolators

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	MTL5514 safety barrier isolator , intrinsic safety barrier isolator , MTL safety barrier with warranty

MTL5514 MTL Safety Barrier Safe Isolators

Eaton Crouse-Hinds series MTL5500 isolator featuring single-channel digital input with advanced safety features for hazardous locations. Designed for reliable operation in demanding industrial environments.

Product Identification

Product Name	Eaton Crouse-Hinds series MTL5500 isolator
Catalog Number	MTL5514 - FSM ASSESSED
EAN	3066227675835
Global Catalog	MTL5514
Product Type	Isolator

Physical Specifications

Length/Depth	109.8 mm
Height	118.8 mm
Width	15.8 mm
Weight	150 g

Technical Features

Type	Switch/proximity detector interface
Channel Configuration	Single-pole relay with changeover contacts
Area Classification	Hazardous/Classified Locations
Standards	IECEx/ATEX, IEC
Hazardous Rating	Zone 0
Safety Integrity Level	SIL2 and SIL3 according to IEC61508

Environmental Specifications

Operating Temperature	-20 °C to 60 °C
Storage Temperature	-40 °C to 80 °C
Humidity	5-95% relative humidity

Electrical Specifications

Signal Type	Digital input
Power Supply	20-35 Vdc
Current Consumption	25mA at 24 Vdc
Power Dissipation	0.6W at 24V
Response Time	10ms maximum
Number of Channels	1
Relay Characteristics	Contact rating (Zone 2): 35V, 2A, 100VA
Sensor Voltage	7-9 Vdc from 1kΩ ±10%
Galvanic Isolation	250V rms between safe-area circuits and power supply
Hysteresis	200µA (650Ω) nominal
Phase Reversal	Yes

Output Characteristics

Outputs open if input < 1.2mA (> 10kΩ in input circuit)
Outputs closed if input > 2.1mA (< 2kΩ in input circuit)

Indicator Lights & Controls

LED Indication	Yes
Green LED	Power indicator
Yellow LED	Status indicator
Red LED	Line Fault Detection (LFD)
Line Fault Detection	User-selectable via switches on the side of the unit

Installation & Connection

Mounting Method	T-section 35mm DIN rail
Terminal Capacity	Accepts conductors of up to 2.5mm² stranded or single-core
Electrical Connection	Crimp ferrules
EMC Compliance	EN61326
