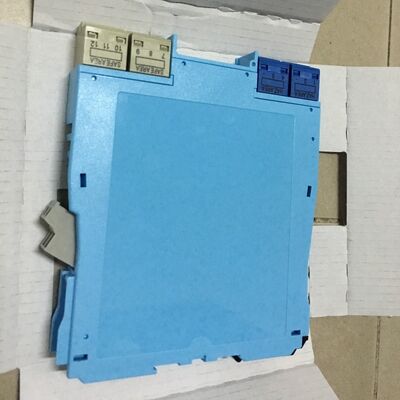

MTL5516C MTL Safety Barrier Safe Isolator

Large Image : MTL5516C MTL Safety Barrier Safe Isolator

Product Details:

Place of Origin:	India
Brand Name:	MTL
Model Number:	MTL5516C

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

MTL5516C MTL Safety Barrier Safe Isolator

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	MTL safety barrier isolator , intrinsic safety barrier isolator , MTL5516C safe isolator

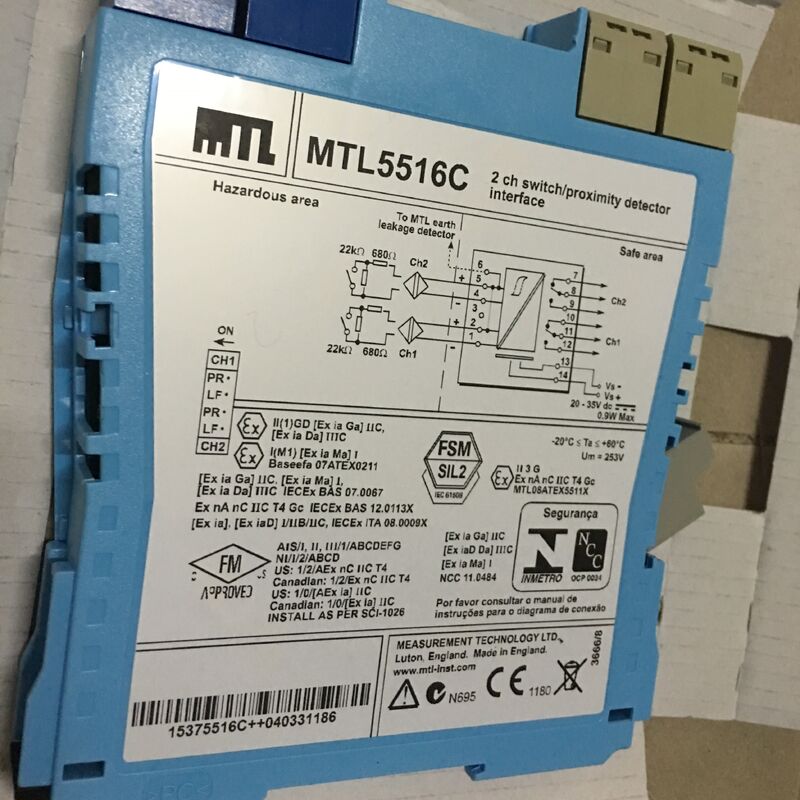

MTL5516C MTL Safety Barrier Safe Isolator

Eaton Crouse-Hinds series MTL5500 isolator, 2 channel, Digital input, 20-35 Vdc, 0.84W, 35mA, Relay: Contact (Zone 2): 35V, 2A, 100VA, 7-9 Vdc sensor, LED: Green=power, Yellow=status, Red=LFD, 2 single-pole relays w/ changeover contacts

Product Specifications

Product Name	Eaton Crouse-Hinds series MTL5500 isolator
Catalog Number	MTL5516C - FSM ASSESSED
EAN	3066227675834
Product Length/Depth	109.8 mm
Product Height	118.8 mm
Product Width	15.8 mm
Product Weight	150 g
Global Catalog	MTL5516C
Product Type	Isolator

Key Features

Special Features	Two single-pole relays with changeover contacts
Type	Switch/proximity detector interface
Area Classification	Hazardous/Classified Locations
Standards Type	IEC IECEx/ATEX
IECEx/ATEX Hazardous Rating	Zone 0

Environmental Specifications

Minimum Ambient Operating Temperature	-20 °C
Maximum Ambient Operating Temperature	60 °C
Minimum Ambient Storage Temperature	-40 °C
Maximum Ambient Storage Temperature	80 °C
Humidity	5-95% relative humidity

Technical Specifications

Signal Type: Digital input
Response Time: 10ms maximum
Number of Channels: 2
Terminal Capacity: Accepts conductors of up to 2.5mm² stranded or single-core
Mounting Method: T-section 35mm DIN rail
EMC: EN61326
Hysteresis: 200µA (650Ω) nominal
Safety Integrity Level: SIL2 and SIL3 (IEC61508)
Line Fault Detection: User-selectable via switches on the side of the unit
Electrical Connection: Crimp ferrules
Power Supply: 20-35 Vdc
Current Consumption: 35mA at 24V
Electrical Specifications: Relay characteristics: Contact rating (Zone 2): 35V, 2A, 100VA
Sensor Voltage: 7-9 Vdc from 1kΩ ±10%
Galvanic Isolation: 250V rms between safe-area circuits and power supply
LED Indication: Yes

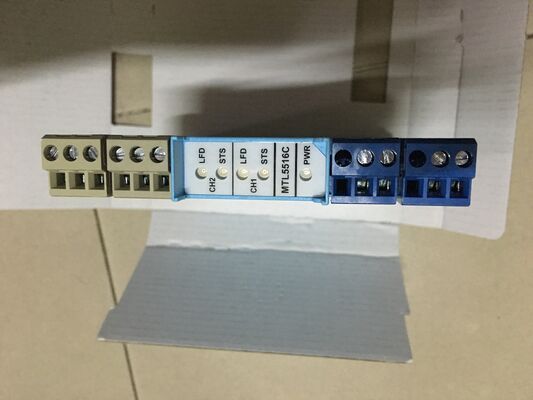

LED Colors: Green (power), Yellow (status), Red (LFD)
Power Dissipation: 0.84W at 24V
Output Characteristics: Outputs closed if input > 2.1mA (< 2kΩ in input circuit)
Outputs open if input < 1.2mA (> 10kΩ in input circuit)
