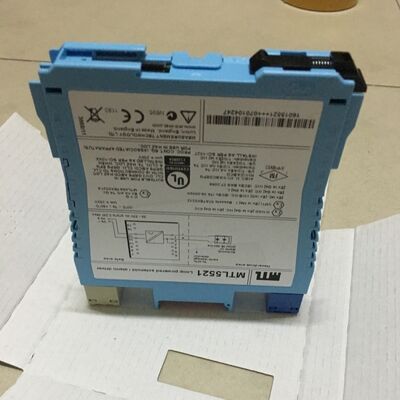

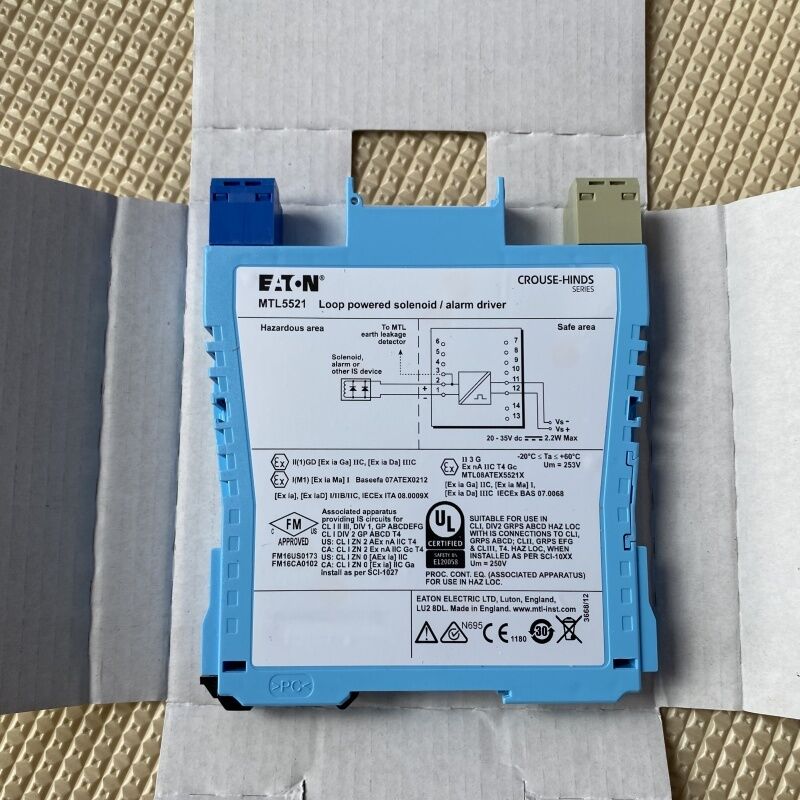

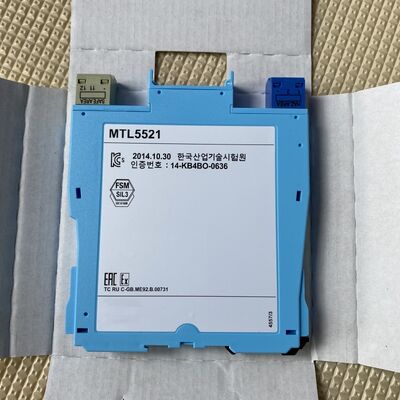

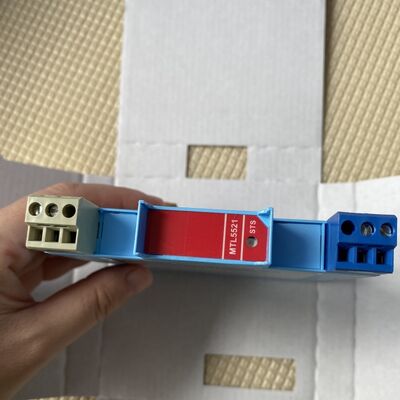

MTL5521 MTL Safety Barrier Eaton Crouse-Hinds series MTL5500 Solenoid Alarm Driver

Large Image : MTL5521 MTL Safety Barrier Eaton Crouse-Hinds series MTL5500 Solenoid Alarm Driver

Product Details:

Place of Origin:	England
Brand Name:	MTL
Model Number:	MTL5521

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

MTL5521 MTL Safety Barrier Eaton Crouse-Hinds series MTL5500 Solenoid Alarm Driver

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	MTL5500 safety barrier solenoid driver , Eaton Crouse-Hinds intrinsic safety barrier , MTL5521 alarm driver with warranty

MTL5521 MTL Safety Barrier Eaton Crouse-Hinds Series MTL5500 Solenoid Alarm Driver

Eaton Crouse-Hinds series MTL5500 solenoid/alarm driver, 1 channel, Digital output, 20-35 Vdc power supply, 1.4W at 24V dissipation, 90mA at 24V current consumption, LED indication: Yellow = status, Loop-powered, IIC

Product Identification

Product Name	Eaton Crouse-Hinds series MTL5500 solenoid/alarm driver
Catalog Number	MTL5521 - FSM ASSESSED
EAN	3066227675832
Global Catalog	MTL5521
Product Type	Solenoid/alarm driver

Physical Specifications

Product Length/Depth	109.8 mm
Product Height	118.8 mm
Product Width	15.8 mm
Product Weight	150 g

Technical Specifications

Type	Loop-powered, IIC
Area Classification	Hazardous/Classified Locations
Standards Type	IECEx/ATEX IEC
IECEx/ATEX Hazardous Rating	Zone 0
Signal Type	Digital output
Number of Channels	1
Response Time	Output within 10% of final value within 100ms
Power Supply	20-35 Vdc
Current Consumption	90mA at 24V
Current Limit	48mA minimum
Power Dissipation	1.4W at 24V

Environmental & Safety Ratings

Minimum Ambient Operating Temperature	-20 °C
Maximum Ambient Operating Temperature	60 °C
Minimum Ambient Storage Temperature	-40 °C
Maximum Ambient Storage Temperature	80 °C
Humidity	5-95% relative humidity
Safety Integrity Level (IEC61508)	SIL1 and SIL3
EMC	EN61326

Additional Features

Terminal Capacity: Accepts conductors of up to 2.5mm² stranded or single-core
Mounting Method: T-section 35mm DIN rail
Electrical Connection: Crimp ferrules
LED Indication: Yes (Yellow = status)
Galvanic Isolation: 250V rms between safe-area circuits and power supply
Ripple: <0.5% of maximum output, peak-to-peak
