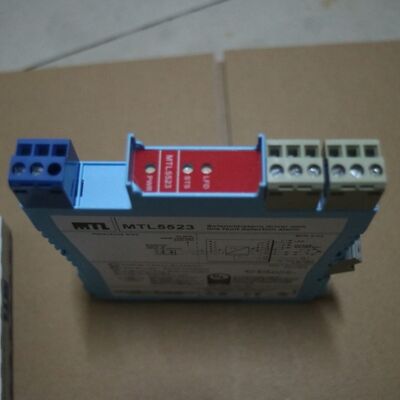

MTL5523 MTL Safety Barrier Isolators

MTL5523 MTL Safety Barrier Isolators
MTL5523 MTL Safety Barrier Isolators MTL5523 MTL Safety Barrier Isolators MTL5523 MTL Safety Barrier Isolators MTL5523 MTL Safety Barrier Isolators

Large Image :  MTL5523 MTL Safety Barrier Isolators

Product Details:
Place of Origin: England
Brand Name: MTL
Model Number: MTL5523
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: original package
Delivery Time: 3 working days
Payment Terms: T/T,Western Union
Supply Ability: 500pcs/month
Contact Now Chat Now

MTL5523 MTL Safety Barrier Isolators

Description
Condition: Original Brand New Warranty: One Year
Shipping Way: DHL FedEx Express Application: Automation Industries, Oil, Gas, Chemical Industries
Certificate: CE ISO TUV
Highlight:

MTL safety barrier isolators

,

intrinsic safety barrier isolators

,

MTL5523 safety isolators

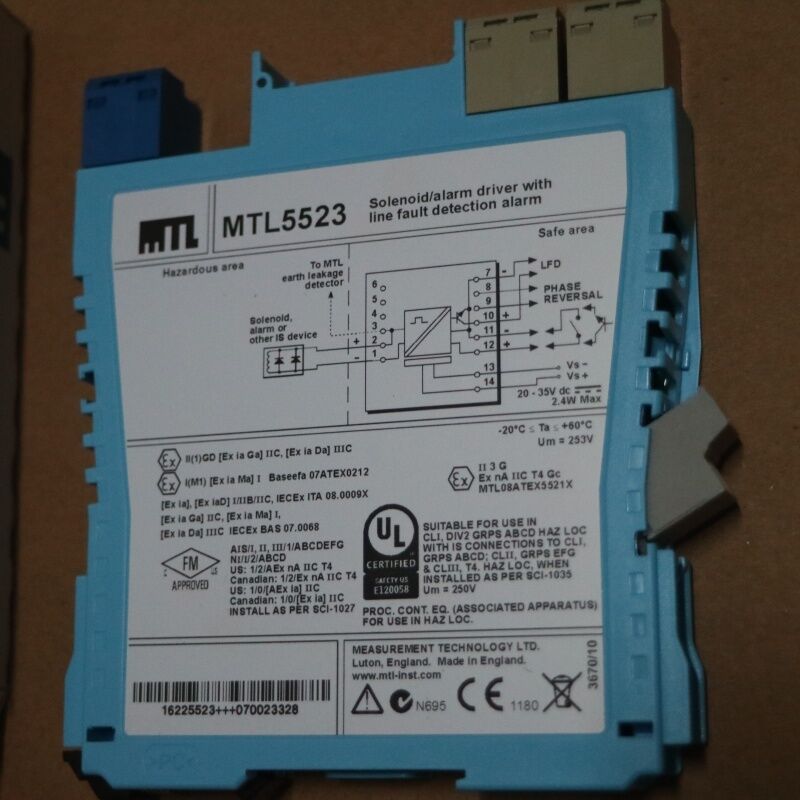

MTL5523 MTL Safety Barrier Isolators
Eaton Crouse-Hinds series MTL5500 solenoid/alarm driver featuring 1-channel digital output, designed for hazardous locations with SIL2/SIL3 safety integrity levels. Provides reliable operation with comprehensive line fault detection and LED status indication.

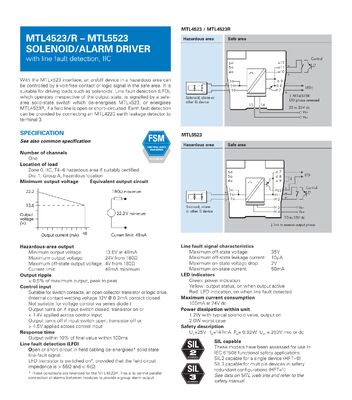

Product Specifications
Product Name Eaton Crouse-Hinds series MTL5500 solenoid/alarm driver
Catalog Number MTL5523 - FSM ASSESSED
EAN 3066227675829
Product Type Solenoid/alarm driver
Dimensions (L x H x W) 109.8 mm × 118.8 mm × 15.8 mm
Product Weight 150 g
Electrical Characteristics
Signal Type Digital output
Number of Channels 1
Current 50 mA
Power Supply 20-35 Vdc
Current Consumption 100mA at 24 Vdc
Power Dissipation 1.2W with typical solenoid valve, 2.0W worst case
Response Time Output within 10% of final value within 100ms
Safety & Environmental Ratings
Area Classification Hazardous/Classified Locations
Type IIC
IECEx/ATEX Hazardous Rating Zone 0
Safety Integrity Level SIL2 and SIL3 according to IEC61508
Operating Temperature -20 °C to 60 °C
Storage Temperature -40 °C to 80 °C
Humidity 5-95% relative humidity
Key Features
  • Line Fault Detection: Open or short circuit in field cabling de-energises solid state line fault signal
  • LED Status Indication: Green (power), Yellow (status), Red (LFD)
  • Galvanic Isolation: 250V rms between safe-area circuits and power supply
  • Terminal Capacity: Accepts conductors up to 2.5mm² stranded or single-core
  • Mounting Method: T-section 35mm DIN rail
  • EMC Compliance: EN61326
  • Ripple: <0.5% of maximum output, peak-to-peak
