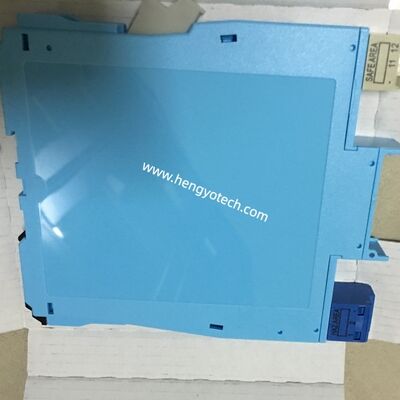

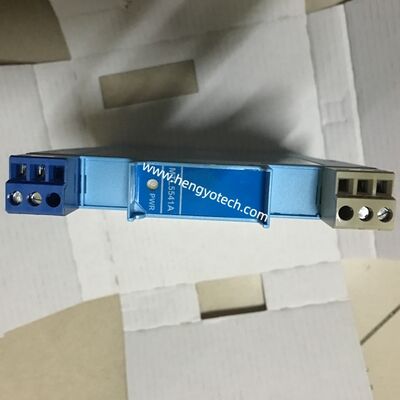

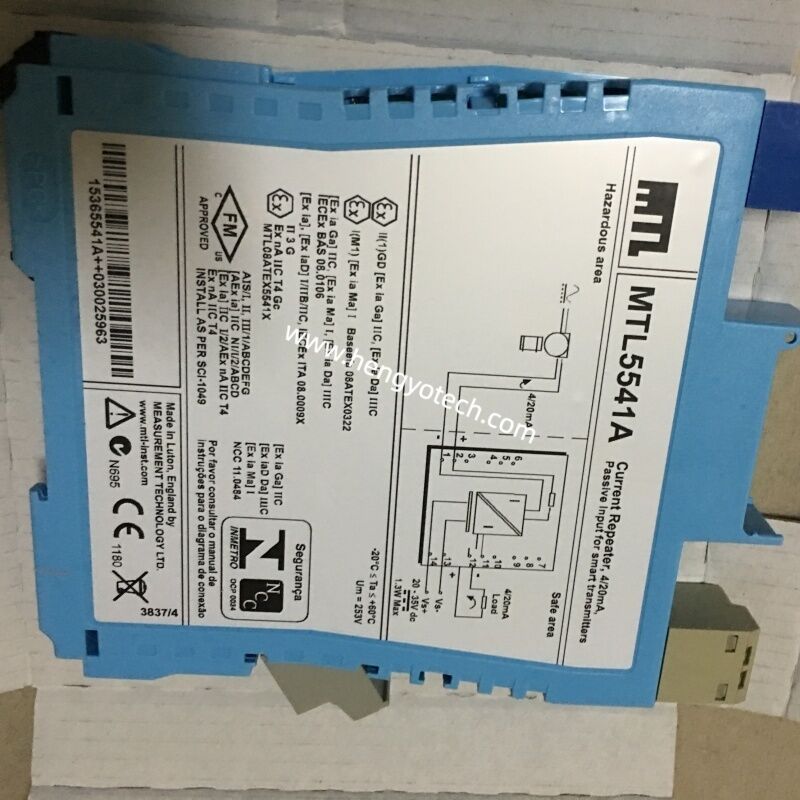

MTL5541A MTL Intrinsic Safety Isolators Safe Barrier

MTL5541A MTL Intrinsic Safety Isolators Safe Barrier
MTL5541A MTL Intrinsic Safety Isolators Safe Barrier MTL5541A MTL Intrinsic Safety Isolators Safe Barrier MTL5541A MTL Intrinsic Safety Isolators Safe Barrier MTL5541A MTL Intrinsic Safety Isolators Safe Barrier

Large Image :  MTL5541A MTL Intrinsic Safety Isolators Safe Barrier

Product Details:
Place of Origin: England
Brand Name: MTL
Model Number: MTL5541A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: original package
Delivery Time: 3 working days
Payment Terms: T/T,Western Union
Supply Ability: 500pcs/month
Contact Now Chat Now

MTL5541A MTL Intrinsic Safety Isolators Safe Barrier

Description
Products Name: Safety Barrier Condition: Original Brand New
Warranty: One Year Shipping Way: DHL FedEx Express
Application: Automation Industries, Oil, Gas, Chemical Industries Certificate: CE ISO TUV
Highlight:

MTL5541A intrinsic safety isolator

,

MTL safe barrier isolator

,

intrinsic safety barrier with warranty

MTL5541A MTL Intrinsic Safety Isolators Safe Barrier
Eaton Crouse-Hinds series MTL5500 current repeater featuring 1 channel, analogue input, 20-35 Vdc power supply, and 0.8W power dissipation at 24 Vdc. Designed for 4-20mA signal range with HART communication support and LED power indication.

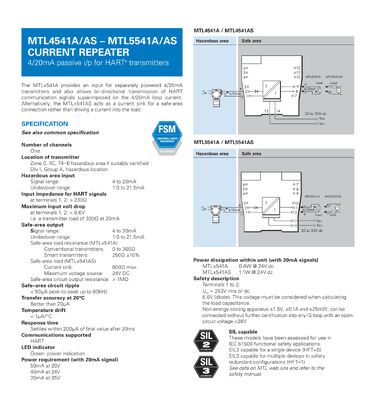

Product Specifications
Product Name Eaton Crouse-Hinds series MTL5500 current repeater
Catalog Number MTL5541A
EAN 3066227675821
Product Type Current repeater
Type Passive i/p for HART transmitters
Number of Channels 1
Signal Type Analogue input
Signal Range 4-20mA
Power Supply 20-35 Vdc
Power Dissipation 0.8W at 24 Vdc
Technical Details
Input Impedance >230Ω
Response Time Settles within 200µA of final value after 20ms
Load Resistance 0-360Ω
Maximum Input Voltage Drop <6.6V
Transfer Accuracy Better than 20µA
Temperature Drift <1µA/°C
Under/Over Range 1.0 to 21.5mA
Ripple <50µA peak-to-peak up to 80 kHz
Galvanic Isolation 250V rms between safe-area circuits and power supply
Environmental & Safety Ratings
Area Classification Hazardous/Classified Locations
Standards Type IEC, IECEx/ATEX
IECEx/ATEX Hazardous Rating Zone 0
Safety Integrity Level (IEC61508) SIL2
Minimum Operating Temperature -20 °C
Maximum Operating Temperature 60 °C
Minimum Storage Temperature -40 °C
Maximum Storage Temperature 80 °C
Humidity 5-95% relative humidity
EMC EN61326
Physical & Installation Details
Product Length/Depth 109.8 mm
Product Height 118.8 mm
Product Width 15.8 mm
Product Weight 150 g
Terminal Capacity Accepts conductors of up to 2.5mm² stranded or single-core
Mounting Method T-section 35mm DIN rail
Electrical Connection Crimp ferrules
LED Indication Yes
LED Color - Power Green
Communication Supported HART
MTL5541A MTL Intrinsic Safety Isolators Safe Barrier 0
