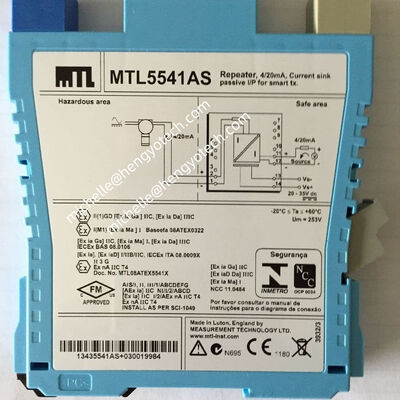

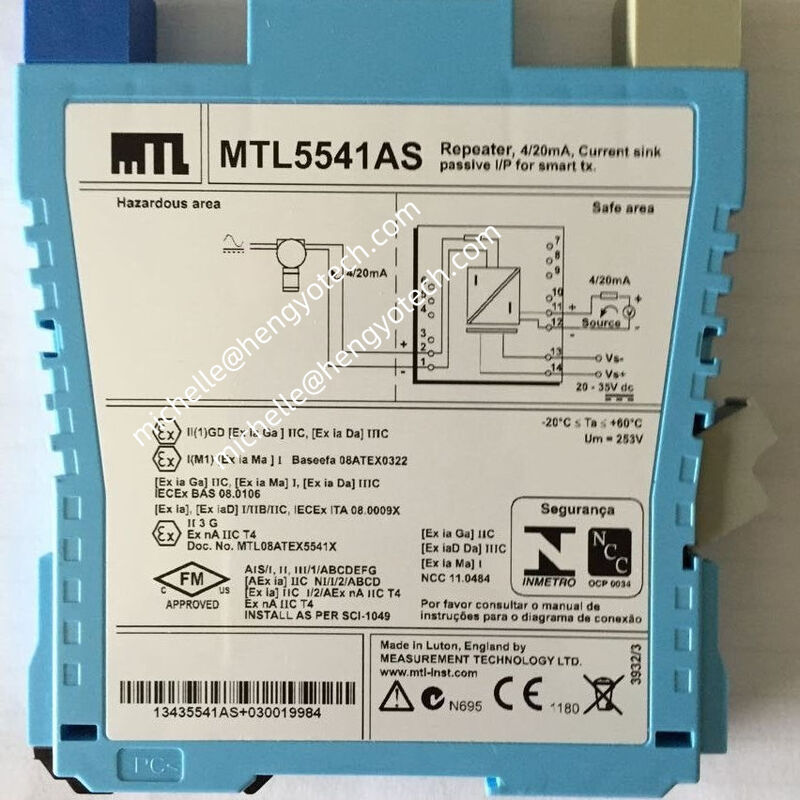

MTL5541AS MTL5500 Din-Rail Mounted Intrinsically Safe Isolator

MTL5541AS MTL5500 Din-Rail Mounted Intrinsically Safe Isolator
MTL5541AS MTL5500 Din-Rail Mounted Intrinsically Safe Isolator MTL5541AS MTL5500 Din-Rail Mounted Intrinsically Safe Isolator MTL5541AS MTL5500 Din-Rail Mounted Intrinsically Safe Isolator MTL5541AS MTL5500 Din-Rail Mounted Intrinsically Safe Isolator

Large Image :  MTL5541AS MTL5500 Din-Rail Mounted Intrinsically Safe Isolator

Product Details:
Place of Origin: England
Brand Name: EATON
Model Number: MTL5541AS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable

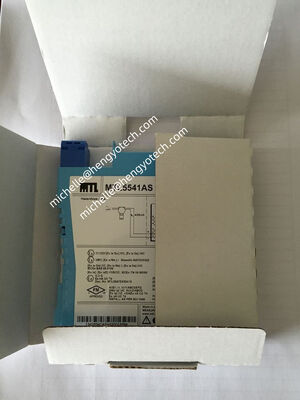

Packaging Details: original package
Delivery Time: 3 working days
Payment Terms: T/T,Western Union
Supply Ability: 500pcs/month
Contact Now Chat Now

MTL5541AS MTL5500 Din-Rail Mounted Intrinsically Safe Isolator

Description
Products Name: Safe Isolator Condition: Original Brand New
Warranty: One Year Shipping Way: DHL FedEx Express
Application: Automation Industries, Oil, Gas, Chemical Industries Certificate: CE ISO TUV
Highlight:

MTL5541AS DIN-rail isolator

,

intrinsically safe barrier MTL5500

,

DIN-rail mounted safety isolator

MTL5541AS MTL5500 Din-Rail Mounted Intrinsically Safe Isolator
Eaton Crouse-Hinds series MTL5500 current repeater featuring 1 channel analogue input, 20-35 Vdc power supply, and HART communication support. Designed for hazardous locations with SIL2 safety integrity level.

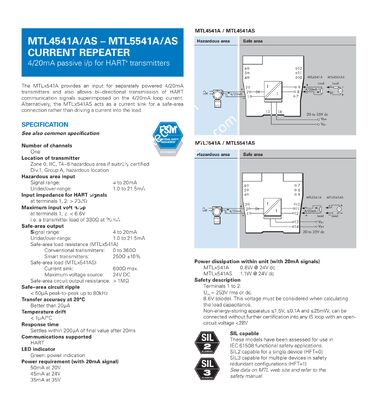

Product Specifications
Product Name Eaton Crouse-Hinds series MTL5500 current repeater
Catalog Number MTL5541AS
EAN 3066227675820
Product Type Current repeater
Dimensions 109.8mm (L) × 118.8mm (H) × 15.8mm (W)
Weight 150g
Technical Features
Signal Type Analogue input
Signal Range 4-20mA
Number of Channels 1
Input Type Passive input for HART transmitters
Input Impedance >230Ω
Response Time Settles within 200µA of final value after 20ms
Transfer Accuracy Better than 20µA
Temperature Drift <1µA/°C
Under/Over Range 1.0 to 21.5mA
Ripple <50µA peak-to-peak up to 80 kHz
Power & Electrical Specifications
Power Supply 20-35 Vdc
Power Dissipation 1.1W at 24 Vdc
Maximum Input Voltage Drop <6.6V
Galvanic Isolation 250V rms between safe-area circuits and power supply
Electrical Connection Crimp ferrules
Terminal Capacity Accepts conductors of up to 2.5mm² stranded or single-core
Environmental & Safety Ratings
Area Classification Hazardous/Classified Locations
Standards IEC, IECEx/ATEX
IECEx/ATEX Hazardous Rating Zone 0
Safety Integrity Level SIL2 according to IEC61508
Operating Temperature -20°C to 60°C
Storage Temperature -40°C to 80°C
Humidity 5-95% relative humidity
EMC EN61326
Communication & Indicators
Communication Supported HART

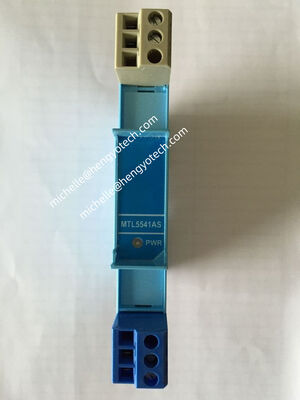

LED Indication Yes
LED Color - Power Green
Mounting Method T-section 35mm DIN rail
MTL5541AS MTL5500 Din-Rail Mounted Intrinsically Safe Isolator 0
