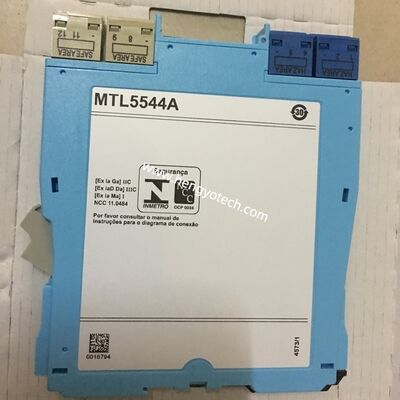

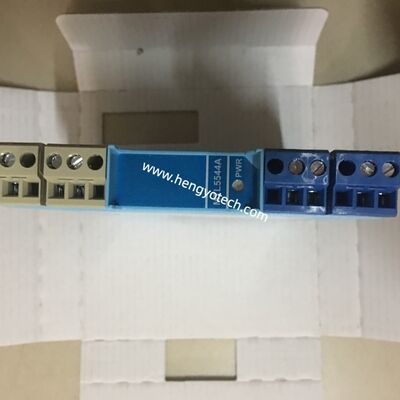

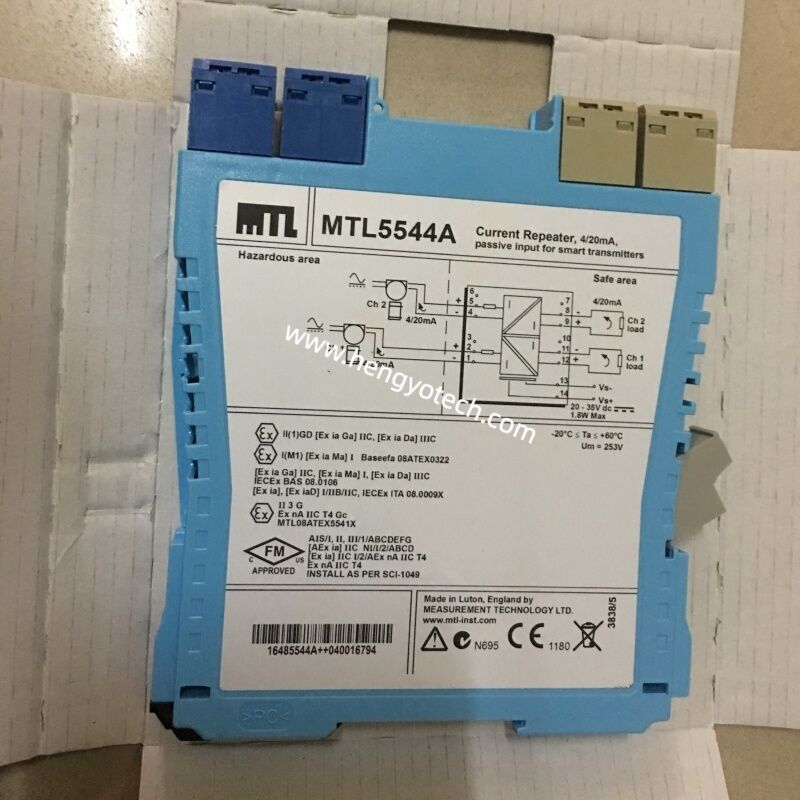

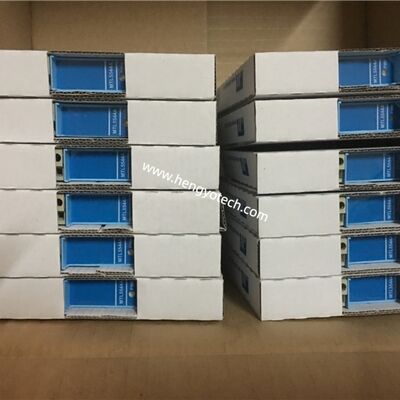

MTL5544A MTL5500 Din-Rail Mounted Intrinsically Safe Isolator

MTL5544A MTL5500 Din-Rail Mounted Intrinsically Safe Isolator
MTL5544A MTL5500 Din-Rail Mounted Intrinsically Safe Isolator MTL5544A MTL5500 Din-Rail Mounted Intrinsically Safe Isolator MTL5544A MTL5500 Din-Rail Mounted Intrinsically Safe Isolator MTL5544A MTL5500 Din-Rail Mounted Intrinsically Safe Isolator

Large Image :  MTL5544A MTL5500 Din-Rail Mounted Intrinsically Safe Isolator

Product Details:
Place of Origin: England
Brand Name: MTL
Model Number: MTL5544A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: original package
Delivery Time: 3 working days
Payment Terms: T/T,Western Union
Supply Ability: 500pcs/month
Contact Now Chat Now

MTL5544A MTL5500 Din-Rail Mounted Intrinsically Safe Isolator

Description
Condition: Original Brand New Warranty: One Year
Shipping Way: DHL FedEx Express Application: Automation Industries, Oil, Gas, Chemical Industries
Certificate: CE ISO TUV
Highlight:

MTL5544A DIN-rail isolator

,

intrinsically safe barrier

,

MTL5500 safety isolator

MTL5544A MTL5500 Din-Rail Mounted Intrinsically Safe Isolator
Eaton Crouse-Hinds series MTL5500 current repeater with 2-channel analogue input, designed for hazardous locations. Features 20-35 Vdc power supply, 4-20mA signal range, HART communication support, and comprehensive safety certifications.
  • 2-channel analogue input current repeater
  • HART communication protocol support
  • Intrinsically safe for hazardous area applications
  • DIN-rail mounting for easy installation
  • Green LED power indication
  • Low power dissipation: 1.5W at 24 Vdc
Technical Specifications
Catalog Number MTL5544A
EAN 3066227675817
Product Type Current repeater
Input Type Passive input for HART transmitters
Signal Range 4-20mA
Number of Channels 2
Power Supply 20-35 Vdc
Power Dissipation 1.5W at 24 Vdc
Load Resistance 0-360Ω
Input Impedance >230Ω
Response Time Settles within 200µA of final value after 20ms
Transfer Accuracy Better than 20µA
Temperature Drift <1µA/°C
Ripple <50µA peak-to-peak up to 80 kHz
Maximum Input Voltage Drop <6.6V
Under/Over Range 1.0 to 21.5mA
Environmental & Safety Specifications
Area Classification Hazardous/Classified Locations
Standards IECEx/ATEX, IEC
Hazardous Rating Zone 0
Safety Integrity Level (IEC61508) SIL2
Operating Temperature -20°C to 60°C
Storage Temperature -40°C to 80°C
Humidity 5-95% relative humidity
Galvanic Isolation 250V rms between safe-area circuits and power supply
EMC Compliance EN61326
Physical Specifications
Dimensions (L x H x W) 109.8 mm x 118.8 mm x 15.8 mm
Weight 150 g
Mounting Method T-section 35mm DIN rail
Terminal Capacity Accepts conductors up to 2.5mm² stranded or single-core
Electrical Connection Crimp ferrules
MTL5544A MTL5500 Din-Rail Mounted Intrinsically Safe Isolator 0
