MTL5544D MTL Intrinsic Safety Isolators

MTL5544D MTL Intrinsic Safety Isolators
MTL5544D MTL Intrinsic Safety Isolators MTL5544D MTL Intrinsic Safety Isolators MTL5544D MTL Intrinsic Safety Isolators MTL5544D MTL Intrinsic Safety Isolators MTL5544D MTL Intrinsic Safety Isolators

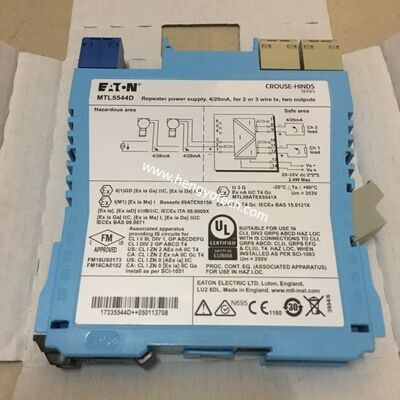

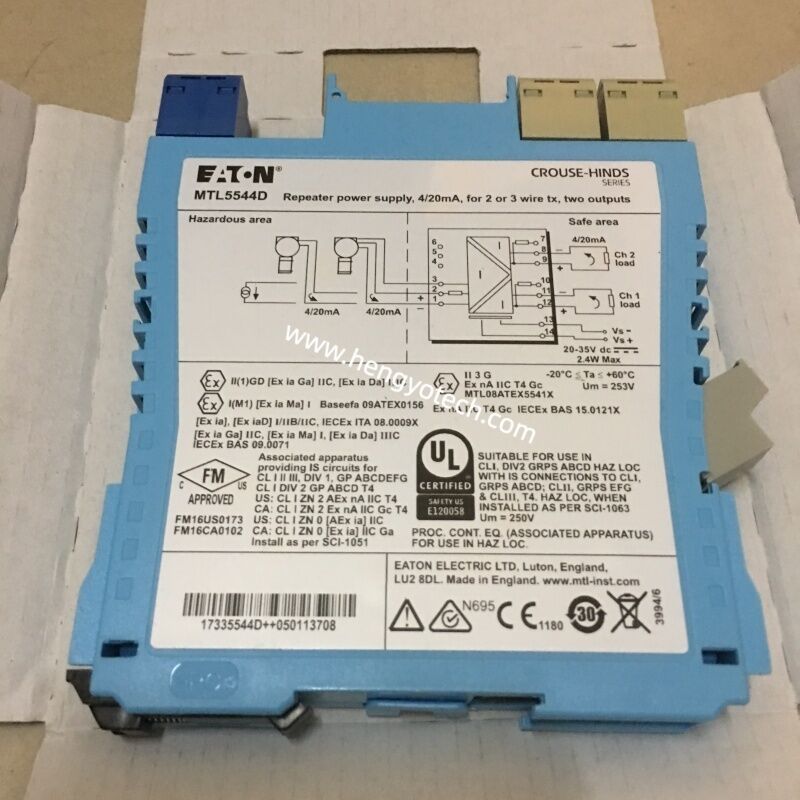

Large Image :  MTL5544D MTL Intrinsic Safety Isolators

Product Details:
Place of Origin: England
Brand Name: MTL
Model Number: MTL5544D
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: original package
Delivery Time: 3 working days
Payment Terms: T/T,Western Union
Supply Ability: 500pcs/month
Contact Now Chat Now

MTL5544D MTL Intrinsic Safety Isolators

Description
Condition: Original Brand New Warranty: One Year
Shipping Way: DHL FedEx Express Application: Automation Industries, Oil, Gas, Chemical Industries
Certificate: CE ISO TUV
Highlight:

MTL5544D intrinsic safety isolator

,

MTL safety barrier with warranty

,

intrinsic safety isolator for hazardous areas

MTL5544D MTL Intrinsic Safety Isolators
Eaton Crouse-Hinds series MTL5500 repeater power supply featuring 1 channel analogue input, 20-35 Vdc power supply, and 1.4W dissipation. Designed for 4-20mA signal processing with HART communication support on terminals 1 & 2 (output Channel 1 only). Features green LED power indication and compatibility with 2- or 3-wire transmitters with dual output capability.
Product Specifications
Product Name Eaton Crouse-Hinds series MTL5500 repeater power supply
Catalog Number MTL5544D - FSM ASSESSED
EAN 3066227675815
Product Dimensions 109.8 mm (L) × 118.8 mm (H) × 15.8 mm (W)
Product Weight 150 g
Global Catalog MTL5544D
Product Type Repeater power supply
Technical Specifications
Type 2- or 3-wire transmitters, dual output
Area Classification Hazardous/Classified Locations
Standards IEC, IECEx/ATEX
IECEx/ATEX Hazardous Rating Zone 0
Operating Temperature -20 °C to 60 °C
Storage Temperature -40 °C to 80 °C
Humidity 5-95% relative humidity
Signal Type Analogue input
Signal Range 4-20mA
Response Time Settles to within 10% of final value within 50µs
Load Resistance 0-360Ω (at 24mA), 0-450Ω (at 20mA)
Number of Channels 1
Terminal Capacity Accepts conductors up to 2.5mm² stranded or single-core
Mounting Method T-section 35mm DIN rail
EMC EN61326
Ripple <50µA peak-to-peak
Safety Integrity Level (IEC61508) SIL2 and SIL3
Communication Support HART (terminals 1 & 2, output Ch 1 only)
Electrical Connection Crimp ferrules
Power Supply 20-35 Vdc
Current Consumption 96mA at 24 Vdc
Galvanic Isolation 250V rms between safe-area circuits and power supply
LED Indication Yes
LED Color - Power Green
Power Dissipation 1.4W at 24 Vdc
Transfer Accuracy Better than 15µA
Temperature Drift <0.8µA/°C
Under/Over Range 0-24mA

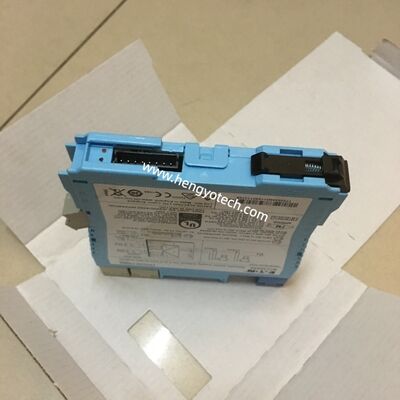

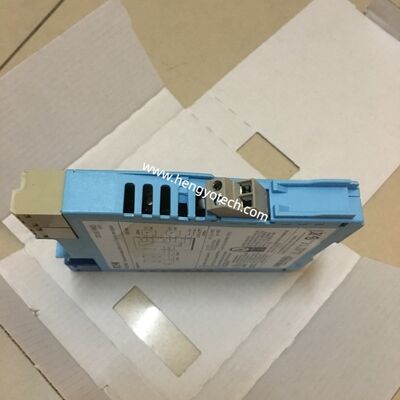

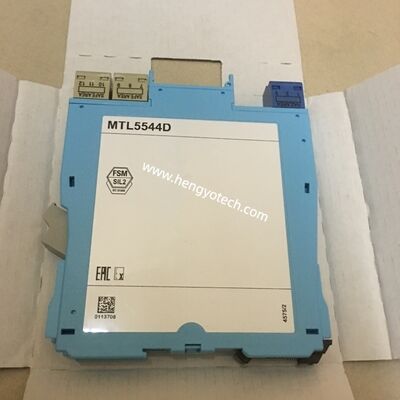

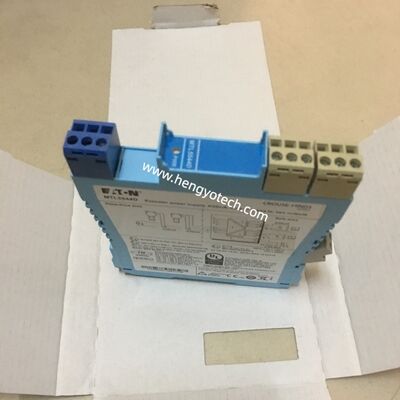

Product Images
