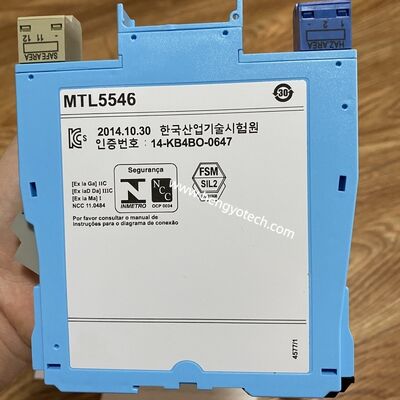

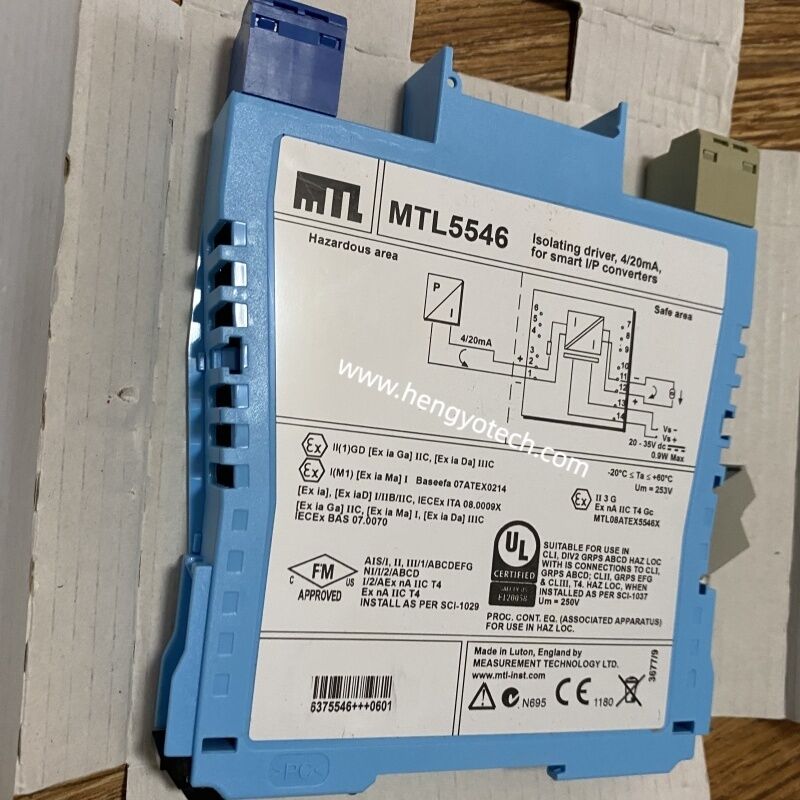

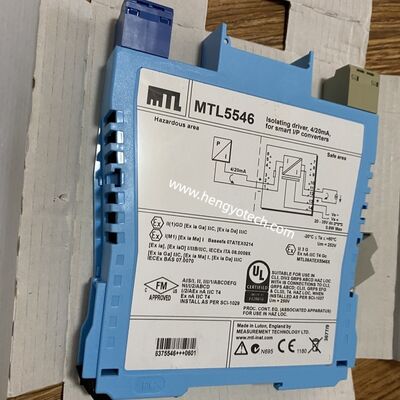

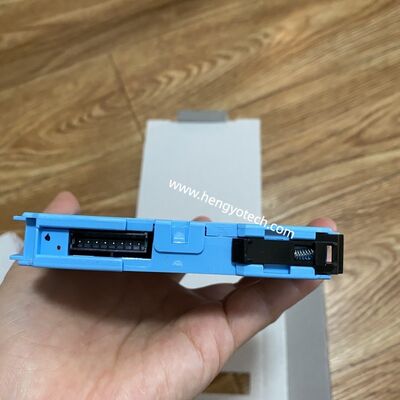

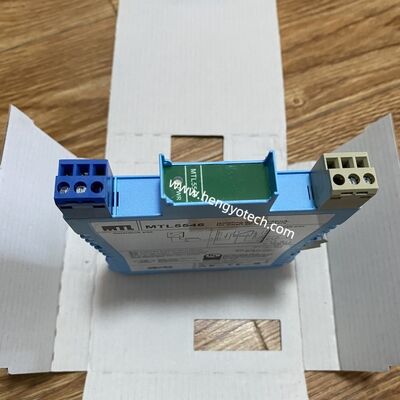

MTL5546 MTL Din-Rail Mounted Intrinsically Safe Isolator

MTL5546 MTL Din-Rail Mounted Intrinsically Safe Isolator
MTL5546 MTL Din-Rail Mounted Intrinsically Safe Isolator MTL5546 MTL Din-Rail Mounted Intrinsically Safe Isolator MTL5546 MTL Din-Rail Mounted Intrinsically Safe Isolator MTL5546 MTL Din-Rail Mounted Intrinsically Safe Isolator

Large Image :  MTL5546 MTL Din-Rail Mounted Intrinsically Safe Isolator

Product Details:
Place of Origin: England
Brand Name: MTL
Model Number: MTL5546
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: original package
Delivery Time: 3 working days
Payment Terms: T/T,Western Union
Supply Ability: 500pcs/month
Contact Now Chat Now

MTL5546 MTL Din-Rail Mounted Intrinsically Safe Isolator

Description
Condition: Original Brand New Warranty: One Year
Shipping Way: DHL FedEx Express Application: Automation Industries, Oil, Gas, Chemical Industries
Certificate: CE ISO TUV
Highlight:

MTL5546 DIN rail isolator

,

intrinsically safe barrier isolator

,

MTL DIN rail mounted isolator

MTL5546 MTL Din-Rail Mounted Intrinsically Safe Isolator
Eaton Crouse-Hinds series MTL5500 isolating driver with 1 channel analogue output, designed for hazardous locations. Features 20-35 Vdc power supply, 0.8W power dissipation, and 4-20mA signal support with HART communication protocol.
Product Specifications
Product Name Eaton Crouse-Hinds series MTL5500 isolating driver
Catalog Number MTL5546 - FSM ASSESSED
EAN 3066227675813
Product Type Isolating driver
Type For 4-20mA HART valve positioners with line fault detection
Dimensions 109.8 mm (L) × 118.8 mm (H) × 15.8 mm (W)
Weight 150 g
Technical Specifications
Power Supply 20-35 Vdc
Current Consumption 35mA at 24 Vdc
Power Dissipation 0.8W at 24V
Signal Type Analogue output
Signal Range 4-20mA
Number of Channels 1
Response Time Settles within 200µA of final value within 100ms
Minimum Load Resistance 90Ω (short circuit detection at <50Ω)
Maximum Load Resistance 800Ω (16V at 20mA)
Transfer Accuracy Better than 20µA
Temperature Drift <1.0µA/°C
Ripple <40µA peak-to-peak
Switching Frequency 500 Hz to 10 kHz
Environmental & Safety Specifications
Area Classification Hazardous/Classified Locations
Standards IECEx/ATEX, IEC
IECEx/ATEX Hazardous Rating Zone 0
Operating Temperature -20°C to 60°C
Storage Temperature -40°C to 80°C
Humidity 5-95% relative humidity
Safety Integrity Level (IEC61508) SIL2 and SIL3
EMC EN61326
Galvanic Isolation 250V rms between safe-area circuits and power supply
Key Features
  • HART communication protocol support
  • Line fault detection capability
  • Green LED power indication
  • Crimp ferrule electrical connections
  • T-section 35mm DIN rail mounting
  • Accepts conductors up to 2.5mm² stranded or single-core
  • Input characteristics: Normal <6.0V, Open and short circuit <0.9mA
  • Under/Over Range: Over range = 24mA, Under range = 1mA
