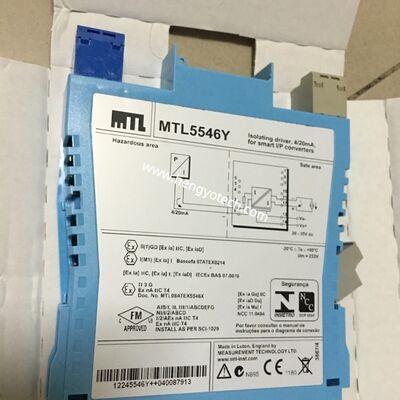

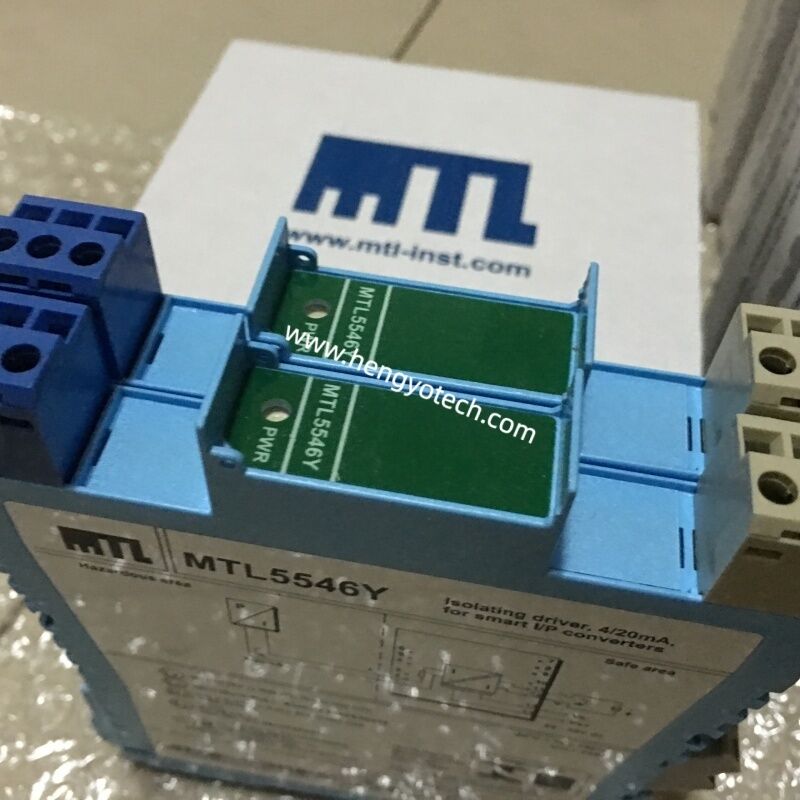

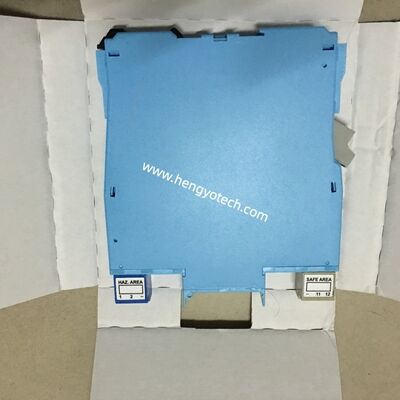

MTL5546Y MTL Din-Rail Mounted Intrinsically Safe Isolator

MTL5546Y MTL Din-Rail Mounted Intrinsically Safe Isolator
MTL5546Y MTL Din-Rail Mounted Intrinsically Safe Isolator MTL5546Y MTL Din-Rail Mounted Intrinsically Safe Isolator MTL5546Y MTL Din-Rail Mounted Intrinsically Safe Isolator MTL5546Y MTL Din-Rail Mounted Intrinsically Safe Isolator

Large Image :  MTL5546Y MTL Din-Rail Mounted Intrinsically Safe Isolator

Product Details:
Place of Origin: England
Brand Name: MTL
Model Number: MTL5546Y
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: original package
Delivery Time: 3 working days
Payment Terms: T/T,Western Union
Supply Ability: 500pcs/month
Contact Now Chat Now

MTL5546Y MTL Din-Rail Mounted Intrinsically Safe Isolator

Description
Condition: Original Brand New Warranty: One Year
Shipping Way: DHL FedEx Express Application: Automation Industries, Oil, Gas, Chemical Industries
Certificate: CE ISO TUV
Highlight:

MTL5546Y DIN-rail isolator

,

intrinsically safe barrier

,

MTL5546Y safety isolator

MTL5546Y MTL Din-Rail Mounted Intrinsically Safe Isolator
Eaton Crouse-Hinds series MTL5500 isolating driver, 1 channel, Analogue output, 20-35 Vdc, 0.8W, 35mA, 4-20mA signal, HART, Input: Normal <6.0V, Open circuit <0.5mA, LED indication: Green = power, For valve positioners with LFD

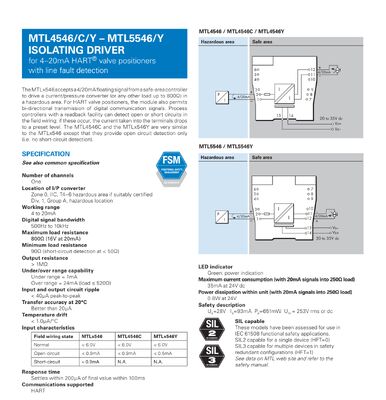

Product Specifications
Product Name Eaton Crouse-Hinds series MTL5500 isolating driver
Catalog Number MTL5546Y - FSM ASSESSED
EAN 3066227675812
Product Dimensions 109.8 mm (L) × 118.8 mm (H) × 15.8 mm (W)
Product Weight 150 g
Global Catalog MTL5546Y
Product Type Isolating driver
Technical Details
Type For 4-20mA HART valve positioners with line fault detection
Area Classification Hazardous/Classified Locations
Standards IEC, IECEx/ATEX
IECEx/ATEX Hazardous Rating Zone 0
Operating Temperature -20°C to 60°C
Storage Temperature -40°C to 80°C
Humidity 5-95% relative humidity
Signal Type Analogue output
Signal Range 4-20mA
Response Time Settles within 200µA of final value within 100ms
Minimum Load Resistance 90Ω (short circuit detection at <50Ω)
Number of Channels 1
Terminal Capacity Accepts conductors of up to 2.5mm² stranded or single-core
Mounting Method T-section 35mm DIN rail
EMC EN61326
Ripple <40µA peak-to-peak
Safety Integrity Level SIL2 and SIL3 according to IEC61508
Communication Supported HART
Electrical Connection Crimp ferrules
Power Supply 20-35 Vdc
Current Consumption 35mA at 24 Vdc
Galvanic Isolation 250V rms between safe-area circuits and power supply
LED Indication Yes (Green = power)
Power Dissipation 0.8W at 24V
Input/Output Characteristics Normal <6.0V, Open circuit <0.5mA
Maximum Load Resistance 800Ω (16V at 20mA)
Switching Frequency 500 Hz to 10 kHz
Transfer Accuracy Better than 20µA
Temperature Drift <1.0µA/°C
Under/Over Range Over range = 24mA, Under range = 1mA
