MTL5549Y MTL Isolator Barriers Isolating Driver

MTL5549Y MTL Isolator Barriers Isolating Driver
MTL5549Y MTL Isolator Barriers Isolating Driver MTL5549Y MTL Isolator Barriers Isolating Driver MTL5549Y MTL Isolator Barriers Isolating Driver MTL5549Y MTL Isolator Barriers Isolating Driver MTL5549Y MTL Isolator Barriers Isolating Driver

Large Image :  MTL5549Y MTL Isolator Barriers Isolating Driver

Product Details:
Place of Origin: England
Brand Name: MTL
Model Number: MTL5549Y
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: original package
Delivery Time: 3 working days
Payment Terms: T/T,Western Union
Supply Ability: 500pcs/month
Contact Now Chat Now

MTL5549Y MTL Isolator Barriers Isolating Driver

Description
Condition: Original Brand New Warranty: One Year
Shipping Way: DHL FedEx Express Application: Automation Industries, Oil, Gas, Chemical Industries
Certificate: CE ISO TUV
Highlight:

MTL isolator barriers

,

intrinsic safety isolating driver

,

MTL5549Y safety barrier

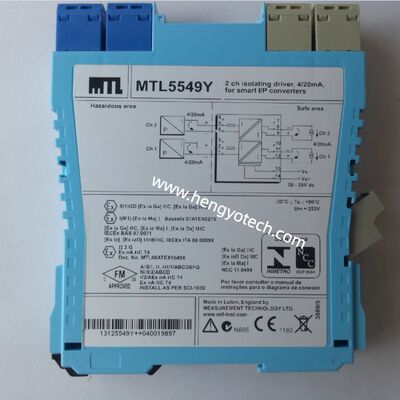

MTL5549Y MTL Isolator Barriers Isolating Driver

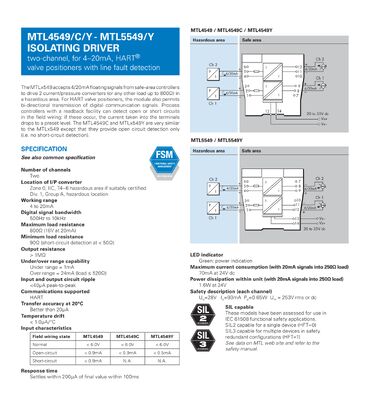

Eaton Crouse-Hinds series MTL5500 isolating driver featuring 2-channel analogue output, designed for valve positioners with line fault detection. This industrial-grade device operates on 20-35 Vdc power supply with HART communication support and comprehensive safety certifications.
Product Specifications
Product Name Eaton Crouse-Hinds series MTL5500 isolating driver
Catalog Number MTL5549Y - FSM ASSESSED
EAN 3066227675810
Dimensions 109.8mm (L) × 118.8mm (H) × 15.8mm (W)
Weight 150g
Product Type Isolating driver
Technical Characteristics
Application For 4-20mA HART valve positioners with line fault detection
Area Classification Hazardous/Classified Locations
Standards IEC, IECEx/ATEX
Hazardous Rating Zone 0
Operating Temperature -20°C to 60°C
Storage Temperature -40°C to 80°C
Humidity 5-95% relative humidity
Electrical Specifications
Signal Type Analogue output
Signal Range 4-20mA
Response Time Settles within 200µA of final value within 100ms
Number of Channels 2
Power Supply 20-35 Vdc
Current Consumption 70mA
Power Dissipation 1.6W
Minimum Load Resistance 90Ω (short circuit detection at <50Ω)
Maximum Load Resistance 800Ω (16V at 20mA)
Input/Output Characteristics Normal <6.0V, Open circuit <0.5mA
Performance Features
  • Communication Supported: HART protocol
  • Switching Frequency: 500 Hz to 10 kHz
  • Transfer Accuracy: Better than 20µA
  • Temperature Drift: <1.0µA/°C
  • Ripple: <40µA peak-to-peak
  • Under/Over Range: Over range = 24mA (load ≤520Ω), Under range = 1mA
  • Safety Integrity Level: SIL2 and SIL3 according to IEC61508
  • Galvanic Isolation: 250V rms between safe-area circuits and power supply
  • LED Indication: Green power indicator
  • Mounting Method: T-section 35mm DIN rail
  • Terminal Capacity: Accepts conductors up to 2.5mm² stranded or single-core
  • Electrical Connection: Crimp ferrules
  • EMC Compliance: EN61326
