MTL5561 MTL Isolator Barrier Fire and Smoke Detector Interface

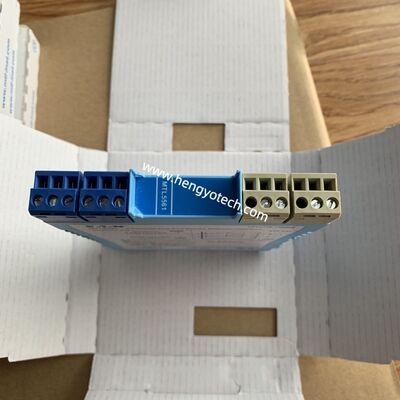

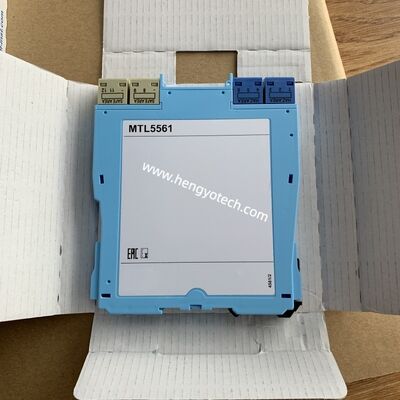

Large Image : MTL5561 MTL Isolator Barrier Fire and Smoke Detector Interface

Product Details:

Place of Origin:	England
Brand Name:	MTL
Model Number:	MTL5561

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

MTL5561 MTL Isolator Barrier Fire and Smoke Detector Interface

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	MTL isolator barrier fire detector , intrinsic safety barrier smoke detector , MTL5561 detector interface isolator

MTL5561 MTL Isolator Barrier Fire and Smoke Detector Interface

Eaton Crouse-Hinds series MTL5500 fire and smoke detector interface featuring 2-channel fully floating design, 20-35 Vdc power supply, and loop-powered operation. Provides reliable signal isolation for fire and smoke detection systems in hazardous locations with reverse polarity protection.

Product Overview

Product Name	Eaton Crouse-Hinds series MTL5500 fire and smoke detector interface
Catalog Number	MTL5561
EAN	3066227675809
Product Dimensions	109.8 mm (Length/Depth) × 118.8 mm (Height) × 15.8 mm (Width)
Product Weight	150 g
Global Catalog	MTL5561
Product Type	Fire and smoke detector interface

Technical Specifications

Type

Loop-powered

Area Classification

Hazardous/Classified Locations

Standards Compliance

IECEx/ATEX, IEC

Hazardous Rating

Zone 0

Operating Temperature

-20°C to 60°C

Storage Temperature

-40°C to 80°C

Humidity

5-95% relative humidity

Signal Type

Fire and smoke

Response Time

Settles to within 5% of final value within 1.5ms

Number of Channels

2, fully floating

Terminal Capacity

Accepts conductors up to 2.5mm² stranded or single-core

Mounting Method

T-section 35mm DIN rail

EMC Compliance

EN61326

Safety Integrity Level

SIL2 according to IEC61508

Systematic Capability

Input circuit protected against reverse polarity

Electrical Connection

Crimp ferrules

Power Supply

20-35 Vdc

Current Range

1-40mA

Maximum Input Voltage

6-30 Vdc

Maximum Output Voltage

28V from 300Ω

Galvanic Isolation

250V rms between safe-area circuits and power supply

Power Dissipation

0.7W max at 24V with 40mA signal
0.9W max at 30V with 40mA signal

Transfer Accuracy

Better than 400μA

Temperature Drift

<4μA/°C (0°C to 60°C)
<15μA/°C (-20°C to 0°C)
