MTL5575 MTL Intrinsic Safety Isolators Temperature Converter THC or RTD Input and Alarm

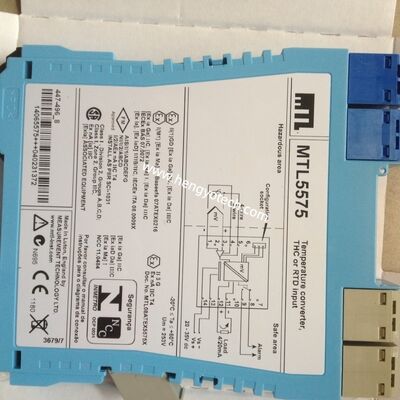

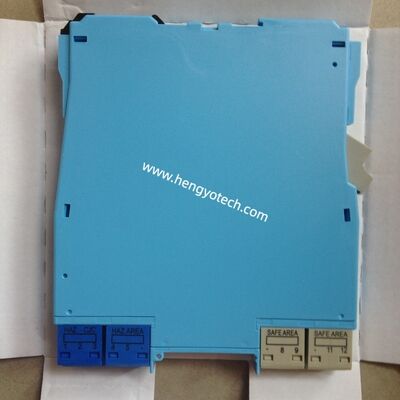

Large Image : MTL5575 MTL Intrinsic Safety Isolators Temperature Converter THC or RTD Input and Alarm

Product Details:

Place of Origin:	England
Brand Name:	MTL
Model Number:	MTL5575

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

MTL5575 MTL Intrinsic Safety Isolators Temperature Converter THC or RTD Input and Alarm

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	MTL5575 intrinsic safety isolator , temperature converter THC input , RTD input alarm isolator

MTL5575 MTL Intrinsic Safety Isolators Temperature Converter

Eaton Crouse-Hinds series MTL5500 temperature converter with THC or RTD input and alarm functionality, designed for hazardous locations with comprehensive safety features.

Product Overview

Product Name	Eaton Crouse-Hinds series MTL5500 temperature converter
Catalog Number	MTL5575
EAN	3066227675808
Product Type	Temperature converter
Type	THC or RTD input and alarm

Physical Specifications

Length/Depth	109.8 mm
Height	118.8 mm
Width	15.8 mm
Weight	150 g

Environmental & Safety Ratings

Area Classification	Hazardous/Classified Locations
Standards	IECEx/ATEX IEC
Hazardous Rating	Zone 0
Operating Temperature	-20°C to 60°C
Storage Temperature	-40°C to 80°C
Humidity	5-95% relative humidity
EMC	EN61326

Technical Specifications

Signal Type	Temperature input
Input Signal Range	-75mV to +75mV
Output Signal Range	4-20mA nominal into 600Ω max.
Number of Channels	1
Response Time	Configurable (500ms default)
Power Supply	20-35 Vdc
Current Consumption	50mA
Power Dissipation	1.2W
Maximum Load Resistance	600Ω
Transfer Accuracy	±11µA
Temperature Drift	±0.6µA/°C

Input & Signal Features

Input Signal: THC types, mV, RTDs 2/3/4-wire
RTD Excitation Current: 200µA
Cold Junction Compensation: Automatic or selectable
Cold Junction Compensation Error: ≤1.0°C
Common Mode Rejection: 120 dB for 240V at 50 or 60 Hz
Series Mode Rejection: 40 dB for 50 or 60 Hz
Early Burnout Detection: For thermocouples (when selected)
Alarm trips when loop resistance increase is >50Ω
Safety Drive on Sensor Failure: Upscale, downscale, or off

Installation & Configuration

Mounting Method	T-section 35mm DIN rail
Terminal Capacity	Accepts conductors of up to 2.5mm² stranded or single-core
Electrical Connection	Crimp ferrules
Configuration	Personal computer running MTL PCS45 software with PCL45USB serial interface
Galvanic Isolation	250V rms between safe-area circuits and power supply

LED Indicators

Power Indicator	Green LED
Status Indicator	Yellow LED
