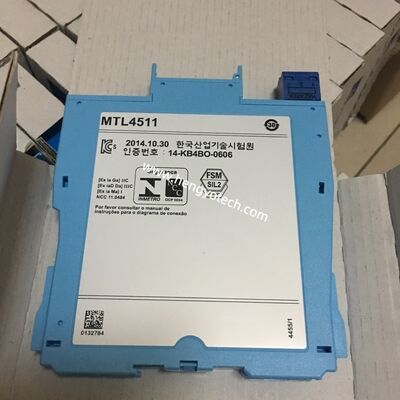

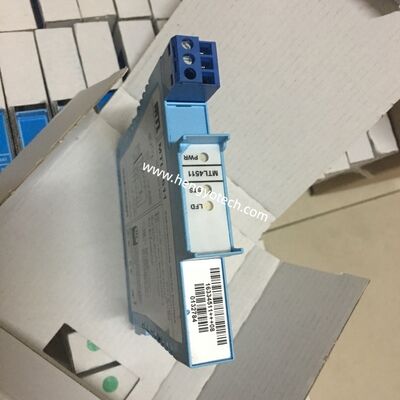

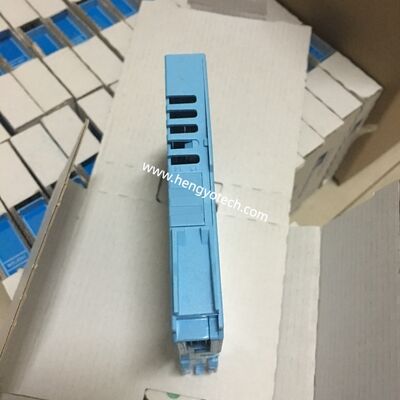

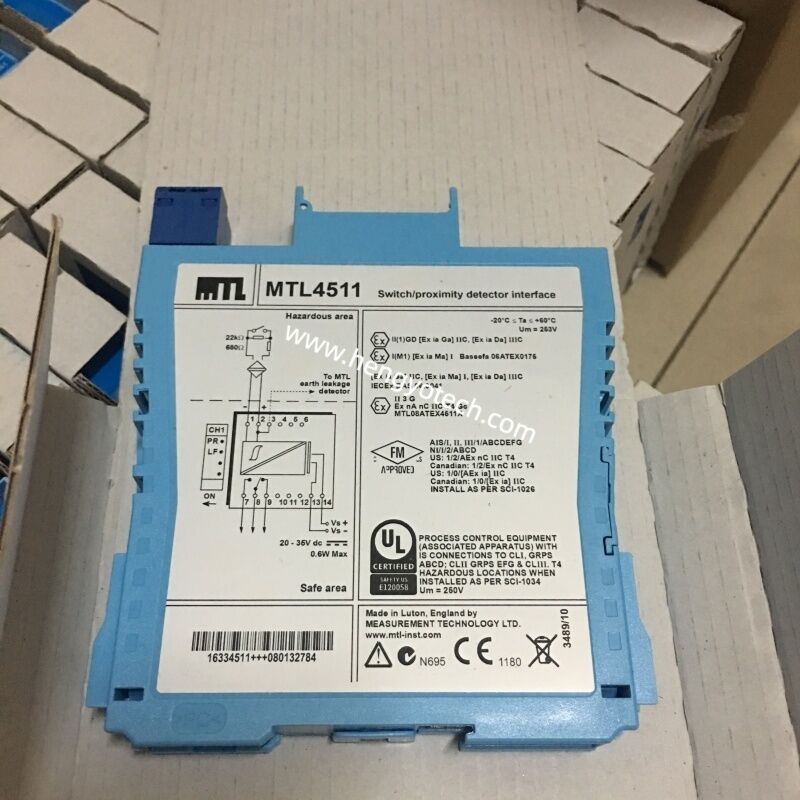

MTL4511 MTL4500 Backplane Mounted Isolator

Large Image : MTL4511 MTL4500 Backplane Mounted Isolator

Product Details:

Place of Origin:	England
Brand Name:	MTL
Model Number:	MTL4511

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

MTL4511 MTL4500 Backplane Mounted Isolator

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	MTL4511 backplane mounted isolator , MTL4500 intrinsic safety barrier , backplane mounted safety isolator

MTL4511 MTL4500 Backplane Mounted Isolator

Eaton Crouse-Hinds series MTL4500 isolator featuring 1 digital input channel with advanced safety features for hazardous locations. Designed for switch and proximity detector interfaces with comprehensive line fault detection capabilities.

Key Features

Single channel digital input isolator
20-35 Vdc power supply with 0.6W dissipation at 24V
Relay contact rating: 10W, 0.5A, 35 Vdc (Zone 2)
Multi-color LED indicators (Green=power, Yellow=status, Red=LFD)
User-selectable line fault detection
SIL2 and SIL3 safety integrity level compliance
Compatible with MTL4500 range of backplanes

General Specifications

Product Name	Eaton Crouse-Hinds series MTL4500 isolator
Catalog Number	MTL4511 - FSM ASSESSED
EAN	3066227675922
Dimensions (L x H x W)	104.8 mm × 121.8 mm × 15.8 mm
Weight	140 g
Product Type	Isolator

Technical Specifications

Type	Switch/proximity detector interface
Area Classification	Hazardous/Classified Locations
Standards	IECEx/ATEX, IEC
Hazardous Rating	Zone 0
Operating Temperature	-20°C to 60°C
Storage Temperature	-40°C to 80°C
Humidity	5-95% relative humidity
Signal Type	Digital input
Response Time	10ms maximum
Number of Channels	1
Terminal Capacity	Accepts conductors up to 2.5mm² stranded or single-core
Power Supply	20-35 Vdc
Current Consumption	25mA at 24V
Sensor Voltage	7-9 Vdc from 1kΩ ±10%
Galvanic Isolation	50V between safe-area circuits and power supply
Hysteresis	200µA (650Ω) nominal

Safety & Compliance: This isolator meets IEC61508 standards for Safety Integrity Level (SIL2 and SIL3) and features comprehensive EMC compliance (EN61326). User-selectable line fault detection ensures reliable operation in critical applications.
