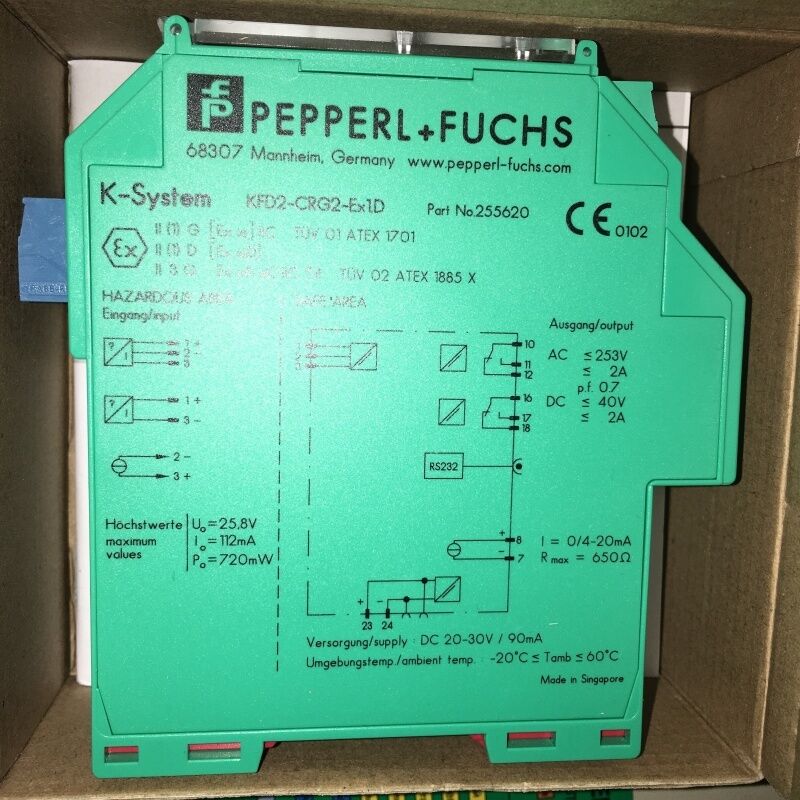

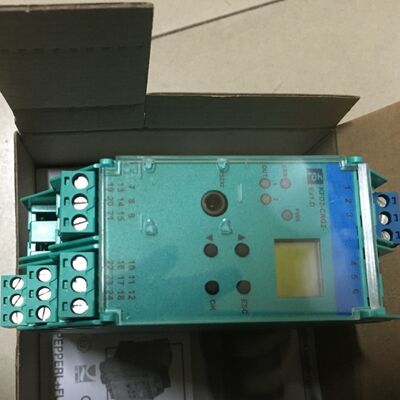

PEPPERL+FUCHS Isolated Barrier Transmitter Power Supply KFD2-CRG2-Ex1.D

Large Image : PEPPERL+FUCHS Isolated Barrier Transmitter Power Supply KFD2-CRG2-Ex1.D

Product Details:

Place of Origin:	Singapore
Brand Name:	PEPPERL+FUCHS
Model Number:	KFD2-CRG2-Ex1.D

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

PEPPERL+FUCHS Isolated Barrier Transmitter Power Supply KFD2-CRG2-Ex1.D

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Pepperl+Fuchs isolated barrier transmitter , KFD2-CRG2-Ex1.D power supply , intrinsic safety barrier transmitter

PEPPERL+FUCHS Isolated Barrier Transmitter Power Supply KFD2-CRG2-Ex1.D

The PEPPERL+FUCHS KFD2-CRG2-Ex1.D is a 1-channel isolated barrier designed for intrinsic safety applications in industrial environments.

Key Specifications

• 24 V DC supply (Power Rail)

• Input compatibility: 2-wire and 3-wire transmitters, 2-wire current sources

• Output: 0/4 mA ... 20 mA

• 2 relay contact outputs

• Adjustable energized/de-energized delay

• Programmable high/low alarm

• Linearization function (max 20 points)

• Line fault detection (LFD)

• Safety certification: Up to SIL 2 acc. to IEC 61508/IEC 61511

Functional Overview

This isolated barrier provides power to 2-wire and 3-wire transmitters and can also interface with current sources. The device features two relays and an active 0/4 mA ... 20 mA current source as outputs, which can be integrated into security-relevant circuits. The current output is easily scaled and configured.

Operation & Configuration

The measured value can be displayed in various physical units on the integrated display. Configuration is simplified through either the built-in keypad or PACTware configuration software. The input includes line fault detection capability.

Fault Indication

Fault conditions are signaled through LEDs according to NAMUR NE44 standards, along with a separate collective error message output for comprehensive system monitoring.

For complete technical specifications and installation guidelines, please refer to the product manual.
