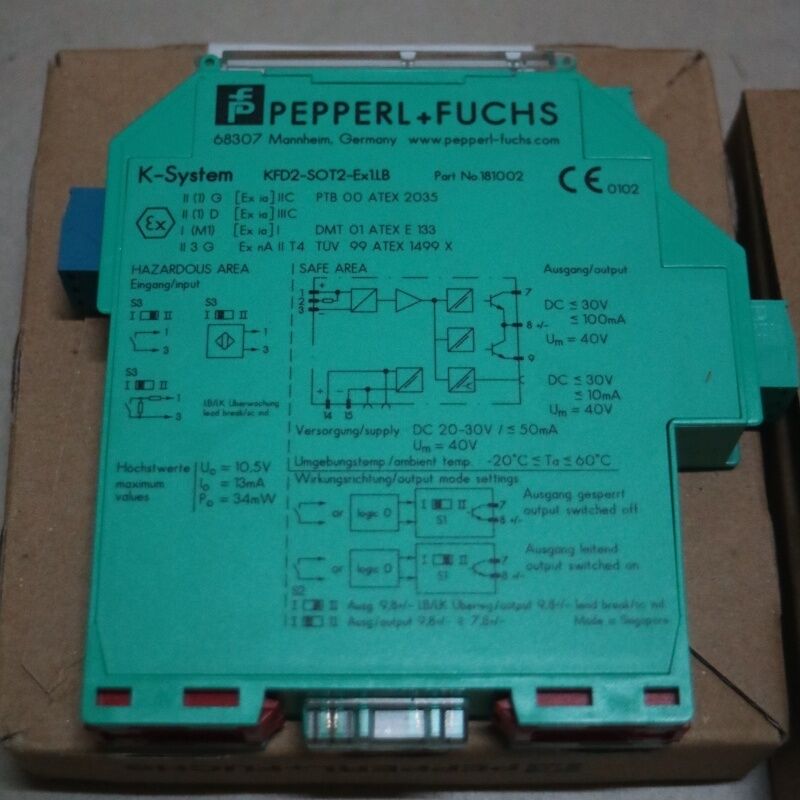

PEPPERL+FUCHS Isolated Barrier Switch Amplifier KFD2-SOT3-Ex1.LB

Large Image : PEPPERL+FUCHS Isolated Barrier Switch Amplifier KFD2-SOT3-Ex1.LB

Product Details:

Place of Origin:	Singapore
Brand Name:	PEPPERL+FUCHS
Model Number:	KFD2-SOT3-Ex1.LB

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

PEPPERL+FUCHS Isolated Barrier Switch Amplifier KFD2-SOT3-Ex1.LB

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Pepperl+Fuchs isolated barrier switch amplifier , KFD2-SOT3-Ex1.LB safety barrier , intrinsic safety switch amplifier with warranty

PEPPERL+FUCHS Isolated Barrier Switch Amplifier KFD2-SOT3-Ex1.LB

The PEPPERL+FUCHS KFD2-SOT3-Ex1.LB is a 1-channel isolated barrier designed for intrinsic safety applications in hazardous areas. This robust switch amplifier ensures reliable signal transmission from explosive atmospheres to safe control areas.

Key Specifications

Channels	1-channel isolated barrier
Power Supply	24 V DC (Power Rail)
Input Signals	Dry contact or NAMUR sensors
Outputs	Passive transistor output (non-polarized) Passive fault output (non-polarized)
Safety Rating	Up to SIL 2 (SC 3) according to IEC/EN 61508

Advanced Features

Line fault detection (LFD) capability

Reversible mode of operation

Configurable second output as signal or fault indication

Fault signaling via LEDs according to NAMUR NE44

Separate collective error message output

Primary Function: This isolated barrier safely transfers digital signals from hazardous areas to safe areas, controlling two passive transistor outputs while providing comprehensive fault monitoring and safety compliance.
