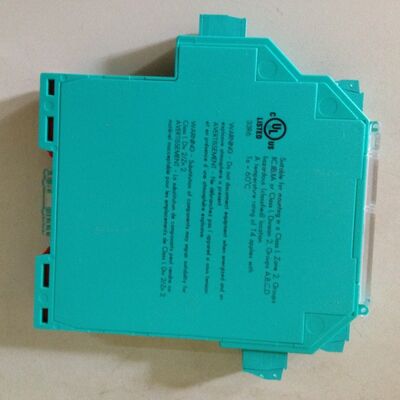

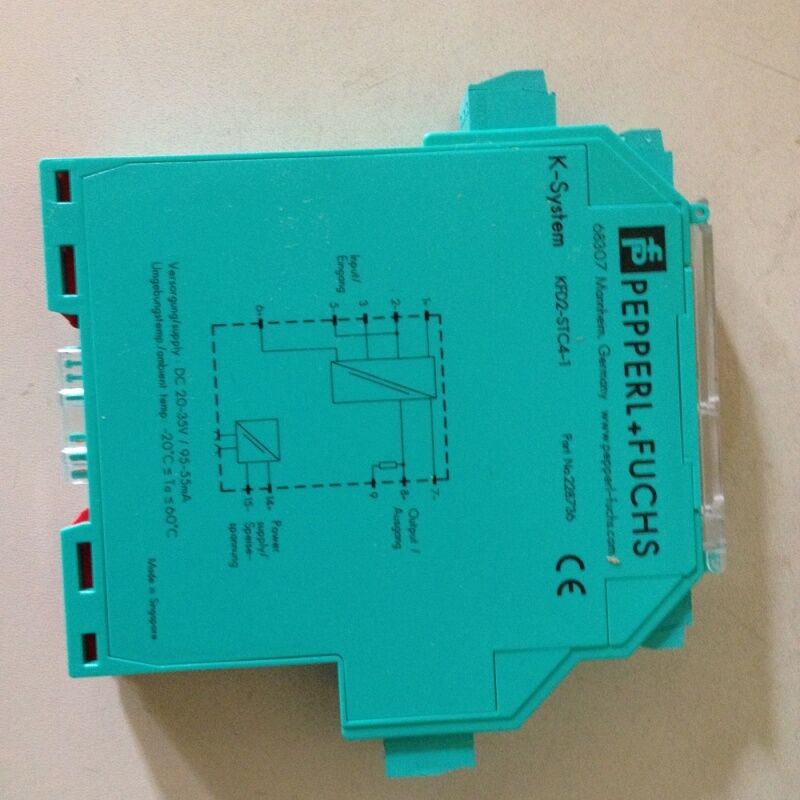

PEPPERL+FUCHS Isolated Barrier SMART Transmitter Power Supply KFD2-STC4-Ex1

Large Image : PEPPERL+FUCHS Isolated Barrier SMART Transmitter Power Supply KFD2-STC4-Ex1

Product Details:

Place of Origin:	Singapore
Brand Name:	PEPPERL+FUCHS
Model Number:	KFD2-STC4-Ex1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

PEPPERL+FUCHS Isolated Barrier SMART Transmitter Power Supply KFD2-STC4-Ex1

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	PEPPERL+FUCHS isolated barrier transmitter , SMART transmitter power supply , KFD2-STC4-Ex1 intrinsic safety barrier

PEPPERL+FUCHS Isolated Barrier SMART Transmitter Power Supply KFD2-STC4-Ex1

The PEPPERL+FUCHS KFD2-STC4-Ex1 is a 1-channel isolated barrier designed for intrinsic safety applications in industrial environments. This robust power supply delivers reliable performance for SMART transmitter systems.

Key Features

1-channel isolated barrier for intrinsic safety applications
24 V DC supply via Power Rail
Compatible with 2-wire and 3-wire SMART transmitters
Supports 2-wire SMART current sources
Output range: 0/4 mA to 20 mA
Terminals with integrated test points
SIL 2 certification according to IEC/EN 61508

Functional Overview

This isolated barrier provides safe power supply for 2-wire and 3-wire SMART transmitters operating in hazardous areas. The device transfers analog input signals to safe areas as isolated current values while maintaining signal integrity.

The KFD2-STC4-Ex1 supports bi-directional digital signal transmission, allowing HART communication signals to be superimposed on the input signal in both hazardous and safe areas. For optimal HART communication performance, the device includes an internal 250 Ω resistance between terminals 8 and 9, with integrated test sockets for HART communicator connections.
