7" Proface HMI Display Touch Screen SP-5490WA PFXSP5490WAD

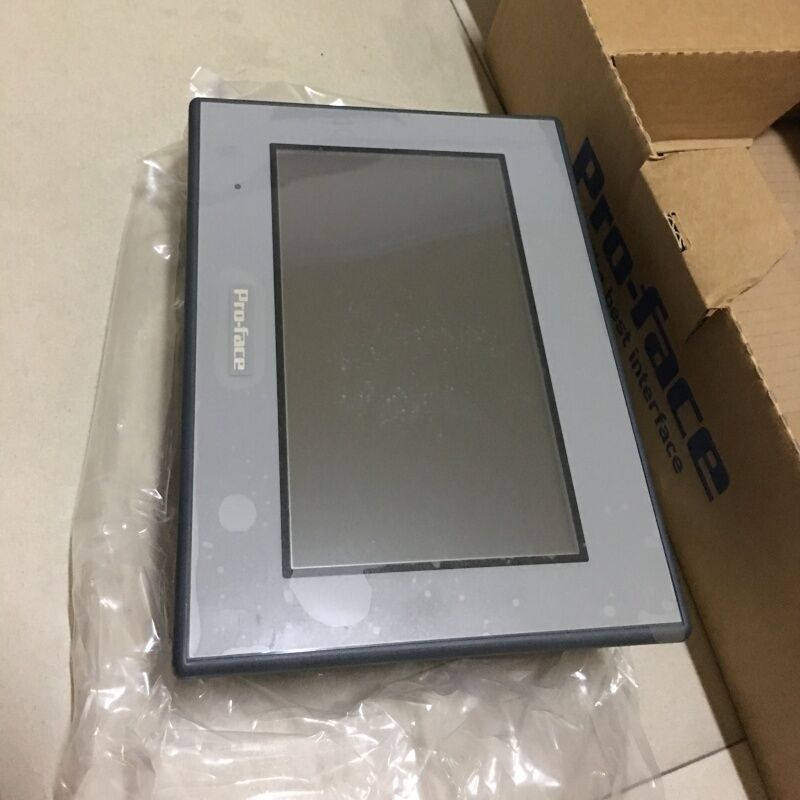

Large Image : 7" Proface HMI Display Touch Screen SP-5490WA PFXSP5490WAD

Product Details:

Place of Origin:	Japan
Brand Name:	Proface
Model Number:	PFXSP5490WAD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

7" Proface HMI Display Touch Screen SP-5490WA PFXSP5490WAD

Description

Shipping Way:

DHL FedEx Express

Application:

Automation Industries, Oil, Gas, Chemical Industries

Certificate:

CE ISO TUV

Highlight:

7" Proface HMI

Proface HMI Display Touch Screen

PFXSP5490WAD

Main

Product or component type

Touch panel screen

Range of product

Pro-face SP5000X

Software package

GP-Pro EX
BLUE

Processor name

ARM Cortex-A9

Complementary

Display size

7 inch

Display type

Colour TFT LCD

Display colour

262144 colours

Display resolution

800 x 480 pixels WVGA

Touch panel

Single touch analogue resistive

Backlight lifespan

50000 hours with white

Brightness

1000 cd/m2

Type of cooling

AN (air natural)

Inrush current

30 A

Input voltage limits

10.8…28.8 V DC

Rated short-duration power frequency withstand voltage

1000 V AC during 1 min

Maximum power consumption in W

29 W

Power consumption in W

29 W
17.5 W
12.5 W (backlight off (standby mode))
15 W (backlight dimmed (brightness: 20%))

Electrical connection

Cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding

Fixing mode

By 4 screws, mounting on 1.6...5 mm thick panel

Cut-out dimensions

190 x 135 mm panel cut dimension

Width

203.6 mm

Height

148.6 mm

Depth

37 mm

Net weight

1.3 kg

Environment

Product certifications

UL
cUL
CE
UKCA
KC
RCM
EAC
ATEX
IECEx

Standards

UL 61010-2-201
CSA C22.2 No 61010-2-201
ANSI/ISA 12.12.01
CSA C22.2 No 213 Class I Division 2

Directives

2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
2012/19/EU - WEEE directive
2011/65/EU - RoHS
2015/863/EU - RoHS directive
1907/2006/EC - REACH directive
2014/34/EU - ATEX directive
2014/53/EU - radio equipment directive

IP degree of protection

IP66f

Ambient air temperature for operation

-30…65 °C

Ambient air temperature for storage

-30…70 °C

Relative humidity

10…90 % non-condensing

Storage Relative Humidity

10…90 % non-condensing

Operating altitude

2000 m

Pollution degree

Environmental characteristic

Corrosive gas free

Vibration resistance

7 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 60068-2-6

Shock resistance

392 m/s² for 11 ms (X, Y, Z directions for 3 times) conforming to IEC 60068-2-27

Insulation resistance

>= 10 MOhm

Electromagnetic compatibility

Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

Package 1 Height

14.500 cm

Package 1 Width

21.500 cm

Package 1 Length

26.500 cm

Package 1 Weight

1.544 kg

Unit Type of Package 2

S04

Number of Units in Package 2

Package 2 Height

30.000 cm

Package 2 Width

40.000 cm

Package 2 Length

60.000 cm

Package 2 Weight

7.290 kg

Contractual warranty

Warranty (in months)
