KFD2-UFC-Ex1.D PEPPERL+FUCHS Isolated Barrier

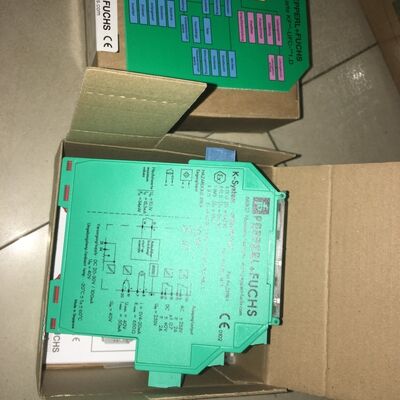

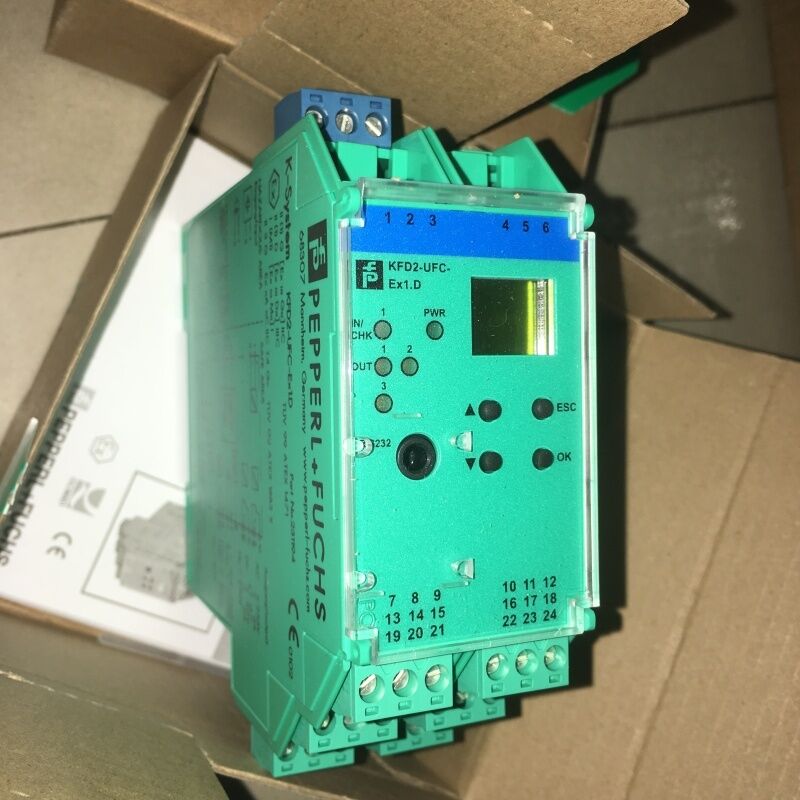

Large Image : KFD2-UFC-Ex1.D PEPPERL+FUCHS Isolated Barrier

Product Details:

Place of Origin:	Singapore
Brand Name:	PEPPERL+FUCHS
Model Number:	KFD2-UFC-Ex1.D

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

KFD2-UFC-Ex1.D PEPPERL+FUCHS Isolated Barrier

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	PEPPERL+FUCHS isolated safety barrier , intrinsic safety barrier with warranty , KFD2-UFC-Ex1.D isolated barrier

KFD2-UFC-Ex1.D PEPPERL+FUCHS Isolated Barrier

1-channel isolated barrier for industrial safety applications

24 V DC supply (Power Rail)
Input for NAMUR sensors or dry contacts
Input frequency 1 mHz ... 5 kHz
Current output 0/4 mA ... 20 mA
Relay and transistor output
Start-up override
Line fault detection (LFD)
Up to SIL 2 acc. to IEC 61508/IEC 61511

Function

This isolated barrier is designed for intrinsic safety applications. The device functions as a universal frequency converter that transforms digital input signals into proportional, freely adjustable 0/4 mA ... 20 mA analog output signals. It serves as both a switch amplifier and trip alarm system.

The switch outputs (2 relay outputs and 1 potential-free transistor output) offer flexible configuration options including trip value display (min/max alarm), serially switched output, pulse divider output, and error signal output.

Configuration is simplified through keypad controls or PACTware configuration software. Fault conditions are indicated by LEDs according to NAMUR NE44 standards, with a separate collective error message output for comprehensive monitoring.

For additional technical specifications and application support
