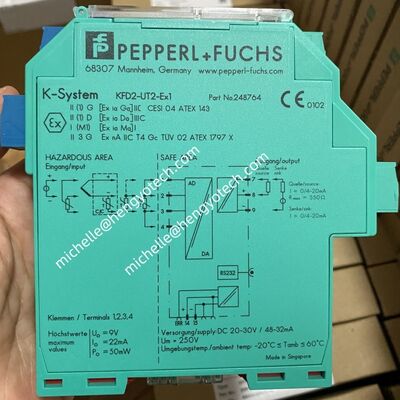

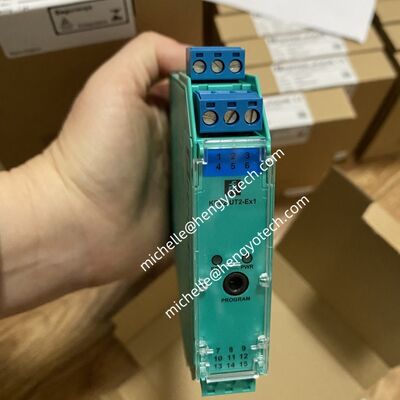

Pepperl Fuchs Intrinsically Safe Barriers KFD2-UT2-1 Universal Temperature Converter Zener Barrier Isolated Barrier

P+F Universal Temperature Converter KFD2-UT2-1

1-channel signal conditioner

24 V DC supply (Power Rail)

Thermocouple, RTD, potentiometer or voltage input

Current output 0/4 mA ... 20 mA

Sink or source mode

Configurable by PACTware

Line fault (LFD) and sensor burnout detection

Up to SIL 2 acc. to IEC/EN 61508 / IEC/EN 61511

Function

This signal conditioner provides the galvanic isolation between field circuits and control circuits.

The device converts the signal of a resistance thermometer, thermocouple, or potentiometer to a proportional output current. The removable terminal block K-CJC-** is available as an accessory for internal cold junction compensation of thermocouples. A fault is signalized by LEDs and a separate collective error message output.

The device is easily configured by the use of the PACTware configuration software. For additional information
