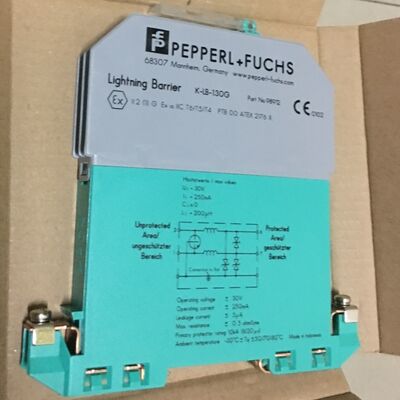

Pepperl+Fuchs Surge Protection Barrier K-LB-1.30G

Large Image : Pepperl+Fuchs Surge Protection Barrier K-LB-1.30G

Product Details:

Place of Origin:	Singapore
Brand Name:	PEPPERL+FUCHS
Model Number:	K-LB-1.30G

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable

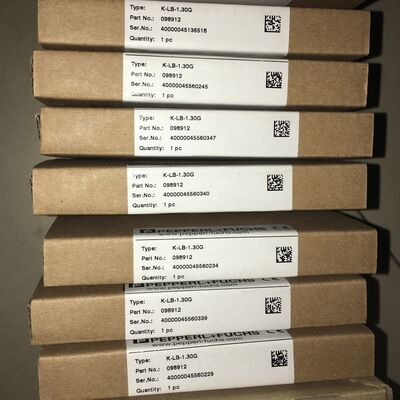

Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Pepperl+Fuchs Surge Protection Barrier K-LB-1.30G

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Pepperl+Fuchs surge protection barrier , K-LB-1.30G surge protector , industrial surge protection device

Pepperl+Fuchs Surge Protection Barrier K-LB-1.30G

PEPPERL+FUCHS Surge Protection Barrier K-LB-1.30G provides reliable surge protection for industrial applications, designed for mounting on DIN rails and suitable for both intrinsically safe and non-intrinsically safe 30V systems.

1-channel protection device
Mounting on DIN mounting rail (EN 60715)
For intrinsically safe or non-intrinsically safe 30 V applications
Protects field or control circuit inputs
Maximum surge current (8/20 µs): 20 kA
Uninterruptable operation with auto reset
Safety Integrity Level (SIL) 3 according to IEC/EN 61508
HART transparent functionality

Function

The device limits induced transients from various sources such as lightning or switching operations. Protection is achieved by diverting current to ground and limiting the signal loop voltage during overvoltage pulses. The device maintains HART communication transparency and is designed for 35 mm DIN rail mounting according to EN 60715.

Technical Specifications

Number of protected signal lines	2
Topology	Grounded
Safety Integrity Level (SIL)	SIL 3
Connection protected area	Terminals 7, 8
Connection unprotected area	Terminals 1, 2
Rated current (Ir)	250 mA
Leakage current	< 10 µA at 24 V and 25 °C (77 °F), line-line

Installation Note

Always connect the device to high-quality ground connections. The device must maintain the same potential as the equipment it protects. Install the ground system in accordance with applicable regulations and standards.
