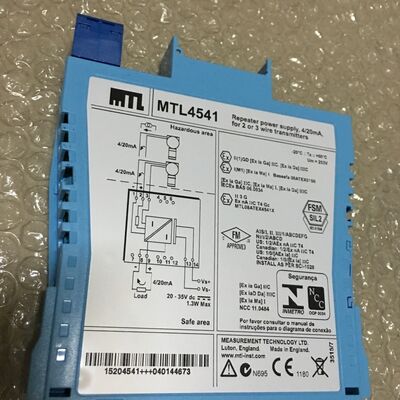

MTL Safety Barrier MTL4541 Eaton Crouse-Hinds series MTL4500 repeater power supply

Large Image : MTL Safety Barrier MTL4541 Eaton Crouse-Hinds series MTL4500 repeater power supply

Product Details:

Place of Origin:	England
Brand Name:	MTL
Model Number:	MTL4541

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

MTL Safety Barrier MTL4541 Eaton Crouse-Hinds series MTL4500 repeater power supply

Description

Condition:

Eaton Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Oil Gas Chemical Industry

Highlight:

MTL Safety Barrier repeater power supply

Eaton Crouse-Hinds MTL4500 barrier

Intrinsic Safety Barrier MTL4541

Eaton Crouse-Hinds series MTL4500 repeater power supply, 1 channel, Analogue input, 20-35 Vdc, 0.7W at 24 Vdc dissipation, 51mA at 24V consumption, 4-20mA signal, HART (terminals 1 & 2 only), LED: Green = power, 2- or 3-wire transmitters

Product Name	Eaton Crouse-Hinds series MTL4500 repeater power supply
Catalog Number	MTL4541 - FSM ASSESSED
EAN	3066227675908
Product Length/Depth	104.8 mm
Product Height	121.8 mm
Product Width	15.8 mm
Product Weight	140 g
Product Type	Repeater power supply

Certifications and compliances

Area classification	Hazardous/Classified Locations
Standards type	IECEx/ATEX IEC
IECEx/ATEX hazardous rating	Zone 0
EMC	EN61326
Safety Integrity Level According to IEC61508	SIL2 and SIL3

Product specifications

Signal Type	Analogue input
Number of Channels	1
Mounting Method	MTL4500 range of backplanes
Power Dissipation	0.7W at 24 Vdc
Signal Range	4-20mA
Response Time	Settles to within 10% of final value within 50µs
Communication Supported	HART (terminals 1 & 2 only)
Transfer Accuracy	Better than 15µA
Temperature Drift	<0.8µA/°C
Ripple	<50µA peak-to-peak
Galvanic Isolation	50V between safe-area circuits and power supply
Type	2- or 3-wire transmitters
