1606-XLE120E Allen-Bradley XLE Power Supply 120W 24VDC 5A

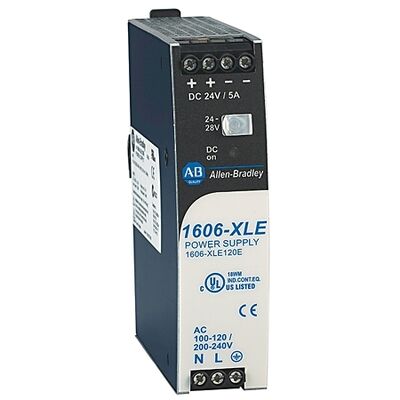

Large Image : 1606-XLE120E Allen-Bradley XLE Power Supply 120W 24VDC 5A

Product Details:

Place of Origin:	USA
Brand Name:	Allen-Bradley
Model Number:	1606-XLE120E

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T
Supply Ability:	200pcs/month

Contact Now Chat Now

1606-XLE120E Allen-Bradley XLE Power Supply 120W 24VDC 5A

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Highlight:

Allen-Bradley XLE 120W power supply

24VDC 5A industrial power supply

VFD inverter compatible power supply

1606-XLE120E: Essential Power Supply, 24-28V DC, 120 W, 120/240V AC Input Voltage

Product Details

SYSTEM DATA - For Selection Assistance
Product Functionality	Power Supply
Built-In Redundancy?	No
Output Voltage	24...28V DC
Connection Terminals	Standard Screw Terminals.
OPTIONAL Selection
Hazardous Location Product Required?	No
Family	Essential Family
POWER SUPPLY SELECTION
Would you like to see selection Tips?	Yes
Product Selection	1606-XLE120E: Essential Power Supply, 24-28V DC, 120 W, 120/240V AC Input Voltage
IMPORTANT INFORMATION
Please Note:	Input Specs Output Specs Dimensions Special Features

Nominal value output voltage 1	24 V
Secondary voltage adjustable	True
Max. output current 1	5 A
Nominal value output current 1	5 A
Power output	120 W
Voltage type of supply voltage	AC/DC
1st secondary output voltage	24 V
Rated supply voltage at AC 50 Hz	100 V
Rated supply voltage at AC 60 Hz	100 V
Rated supply voltage at DC	110 V
Power reserves	20 %
Derating	3 w/°c
DC OK relay contact	True
Input inrush current limiter	Active
Adjustment range	24 V
Power factor	0.91 typical
Operational range	90…132V AC
Rated output current	5A @ 24V
External input fuse, min	B-6 A or C-6 A
Power losses	7.3 W typical
Sub group	Essential line
Hold-up time	>80 ms @ 120V
Efficiency	94.3% typical
Input inrush current	4 A/3 A
Special family function	Dynamic 120% power boost under 45C Degree
Rated input current	2.6A @ 100V AC
Output voltage stabilized	True
Rail mounting possible	True
Stabilized	True
