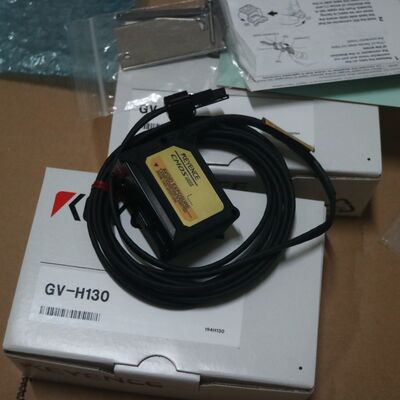

GV-H130 Keyence Digital CMOS Laser Sensor Head Medium-distance Type

Model

GV-H130

Type

Mid-range

Light source

Visible semiconductor laser, Wavelength: 655 nm

FDA (CDRH)
Part 1040.10

Class 2 (560 µW)

IEC 60825-1

JIS C6802

Detection distance
(Amplifier display )

55 to 130 mm 2.17" to 5.12"
(750 to 0)^*1)

Possible display range

768 to -98

Standard detection deviation

1 mm 0.04"

Spot diameter

Approx. ø0.3 mm ø0.012"
(Detection distance
130 mm 5.12")

Operation status indicators

Control output: Red LED/Laser radiation emission indicator: Green LED/1 spot indicator: Green LED

Enclosure rating

IP67

Operating ambientluminance

Incandescent lamp

10000ℓx

Sunlight

20000ℓx

Ambient temperature

-10 to +50 °C 14 to 122 °F (No freezing)

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z axis

Material

Housing material: PBT, Display: Polyarylate, Metal: SUS304, Lens cover: Glass, Cable: PVC

Weight

Approx. 130 g^*2
