HG-C1200 Panasonic CMOS type Micro Laser Distance Sensor HG-C

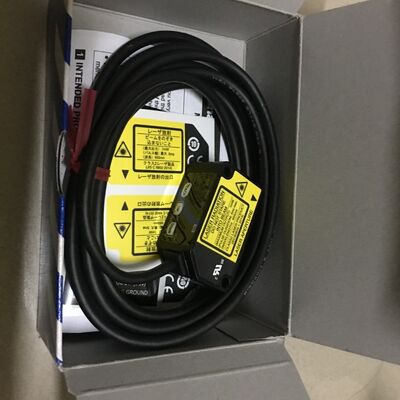

Large Image : HG-C1200 Panasonic CMOS type Micro Laser Distance Sensor HG-C

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	GC-1000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T
Supply Ability:	200pcs/month

Contact Now Chat Now

HG-C1200 Panasonic CMOS type Micro Laser Distance Sensor HG-C

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Highlight:

Panasonic CMOS laser distance sensor

HG-C1200 micro distance sensor

Keyence compatible laser sensor

Item	Specifications
Product Number	HG-C1200
Part Number	HG-C1200
Products Name	CMOS type Micro Laser Distance Sensor
Product details	Measurement center 200mm 7.874 in type
Applicable regulations and certifications	CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), FDA Regulations, UL/c-UL Recognition
Measurement center distance	200 mm 7.874 in
Measuring range	±80 mm 3.150 in
Repeatability	200 μm 7.874 mil
Linearity	±0.2%F.S.
Temprerature characteristics	0.03% F.S./℃
Light source	Red semiconductor laser Class 2 [IEC / EN/ JIS / GB / KS / FDA (Note) ] Max. output: 1 mW emission peak wavelength: 655 nm 0.026 mil (Note) This product complies with the FDA regulations (FDA 21 CFR 1040.10 and 1040.11) in accordance with FDA Laser Notice No. 56, except for complying with IEC 60825-1 Ed. 3.
Beam diameter	ø300 μm 11.8111 mil approx. (Note) This is the size in the measurement center distance. These values were defined by using 1/e² (13.5% approx.) of the center light intensity. Due to leak light outside the specified area, the reflectance around the detecting point may be higher than at the point and this may affect the measurement value.
Supply voltage	12 to 24 V DC ±10 %, Ripple P-P 10 % or less
Current consumption	40 mA or less (at 24V DC supply voltage) 65 mA or less (at 12V DC supply voltage)
Control output	NPN open-collector transistor - Maximum sink current: 50 mA - Applied voltage: 30 V DC or less (Between control output to 0V) - Residual voltage: 1.5 V or less (At 50 mA sink current) - Leakage current: 0.1 mA or less
Control output:Output operation	Either Light-ON or Dark-ON
Control output:Short-circuit protection	Incorporated (Auto reset type)
Analogue output : Analog voltage output	• Output range: 0 to 5 V (at alarm: +5.2 V) • Output impedance: 100Ω
Analogue output : Analog current output	• Output range: 4 to 20mA (at alarm: 0mA) • Output impedance: 300Ω or less
Response time	Switchable between 1.5 ms / 5 ms / 10 ms
External input	NPN non-contact input - Input conditions Invalid: +8 to +V DC or Open Valid: 0 to +1.2 V DC - Input impedance: 10 kΩ approx.
Pollution degree	2
Operating altitude	2,000 m 6561.680 ft or less
Protection	IP67 (IEC)
Ambient temperature	-10 to +45 ℃ -14 to 113 ℉ (No dew condensation or icing allowed), Storage: -20 to +60 ℃ -4 to 140 ℉
Ambient humidity	35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminance	Incandescent light: 3,000 ℓx or less at the light-receiving face
Vibration resistance	10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each
Shock resistance	500 m/s² acceleration (50 G approx.) in X, Y and Z directions three times each
Cable	5-core composite cable, 2 m 6.5617 ft long
Cable extension	Extension up to total 10 m 393.701 ft is possible with 0.3 mm², or more, cable.
Material	Enclosure: Aluminum die-cast Front cover: Acrylic
Weight	Net weight: 35 g approx. (without cable), 85 g approx. (including cable)
