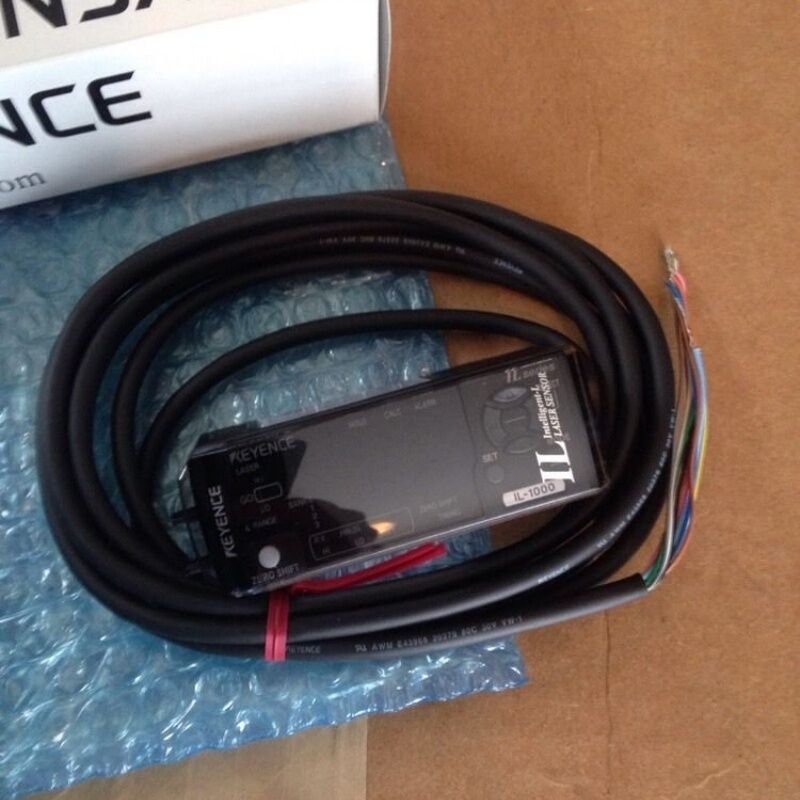

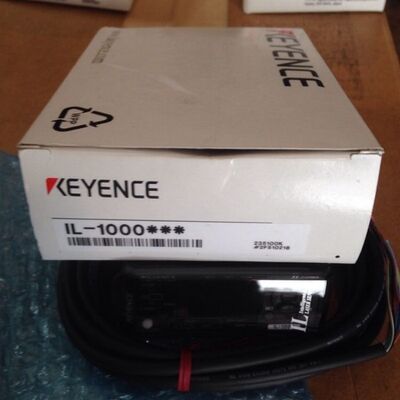

IL-1000 Keyence CMOS Multi-Function Analog Laser Sensor

Model

IL-1000

Type

DIN-rail mount

Main unit/Expansion unit

Main unit

Head compatibility

Compatible

Minimum
displayable unit

IL-030: 1 µm, IL-065/IL-100: 2 µm, IL-300: 10 µm, IL-600: 50 µm, IL-2000: 100 µm

Display range

IL-030/IL-065/IL-100: ±99.999 mm to ±99 mm (4 levels selectable),
IL-300/IL-600: ±999.99 mm to ±999 mm (3 levels selectable),
IL-2000: ±9999.9 mm to ±9999 mm (2 levels selectable)

Display rate

Approx. 10 times/sec.

Analog voltage output

±5 V, 1 to 5 V, 0 to 5 V Output impedance 100 Ω^*1

Analog current output

4 to 20 mA Maximum load resistance of 350 Ω^*1

Bank switch input

Non-voltage input^*2

Zero-shift input

Stop emission input

Timing input

Reset input

Judgement output

Open collector output (NPN, PNP changeover possible/N.O., N.C. changeover possible)^*3

Alarm output

Open collector output (NPN, PNP changeover possible/N.C.)^*3

Power voltage

10 to 30 VDC ripple (P-P) 10% included, Class 2^*4

Power consumption

2300 mW or less (at 30 V: 77 mA or less)

Pollution degree

2

Ambient temperature

-10 to +50 °C 14 to 122 °F (No condensation or freezing)

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions

Material

Case / Front sheet: Polycarbonate; Key tops: Polyacetel; Cable: PVC

Weight

Approx. 150 g (including attachments)
