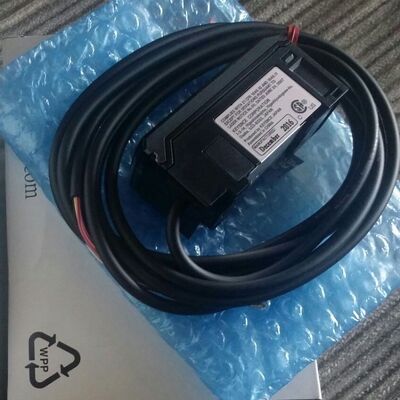

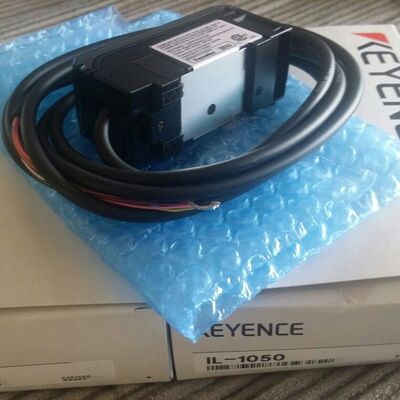

IL-1050 Keyence CMOS Multi-Function Analog Laser Sensor Amplifier unit DIN-rail mount type

Certification
china Shenzhen Hengyo Power Technology Co., Limited certification
china Shenzhen Hengyo Power Technology Co., Limited certification
I'm Online Chat Now

IL-1050 Keyence CMOS Multi-Function Analog Laser Sensor Amplifier unit DIN-rail mount type

IL-1050 Keyence CMOS Multi-Function Analog Laser Sensor Amplifier unit DIN-rail mount type
IL-1050 Keyence CMOS Multi-Function Analog Laser Sensor Amplifier unit DIN-rail mount type IL-1050 Keyence CMOS Multi-Function Analog Laser Sensor Amplifier unit DIN-rail mount type IL-1050 Keyence CMOS Multi-Function Analog Laser Sensor Amplifier unit DIN-rail mount type

Large Image :  IL-1050 Keyence CMOS Multi-Function Analog Laser Sensor Amplifier unit DIN-rail mount type

Product Details:
Place of Origin: Japan
Brand Name: Keyence
Model Number: IL-1050
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: original package
Delivery Time: In stock
Payment Terms: T/T
Supply Ability: 200pcs/month
Contact Now Chat Now

IL-1050 Keyence CMOS Multi-Function Analog Laser Sensor Amplifier unit DIN-rail mount type

Description
Condition: Original Brand New Warranty: One Year
Shipping Way: DHL FedEx
Highlight:

Keyence CMOS laser sensor amplifier

,

DIN-rail mount laser sensor

,

multi-function analog sensor amplifier

Model

IL-1050

Type

DIN-rail mount

Main unit/Expansion unit

Expansion unit

Head compatibility

Compatible

Minimum
displayable unit

IL-030: 1 µm, IL-065/IL-100: 2 µm, IL-300: 10 µm, IL-600: 50 µm, IL-2000: 100 µm

Display range

IL-030/IL-065/IL-100: ±99.999 mm to ±99 mm (4 levels selectable),
IL-300/IL-600: ±999.99 mm to ±999 mm (3 levels selectable),
IL-2000: ±9999.9 mm to ±9999 mm (2 levels selectable)

Display rate

Approx. 10 times/sec.

Analog voltage output

None

Analog current output

Bank switch input

Non-voltage input*1

Zero-shift input

Stop emission input

Timing input

Reset input

Judgement output

Open collector output (NPN, PNP changeover possible/N.O., N.C. changeover possible)*2

Alarm output

Open collector output (NPN, PNP changeover possible/N.C.)*2

Power voltage

Supplied by main unit*3

Power consumption

2000 mW or less (at 30 V: 67 mA or less)

Pollution degree

2

Ambient temperature

-10 to +50 °C 14 to 122 °F (No condensation or freezing)

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions

Material

Case / Front sheet: Polycarbonate; Key tops: Polyacetel; Cable: PVC

Weight

Approx. 140 g (including attachments)
