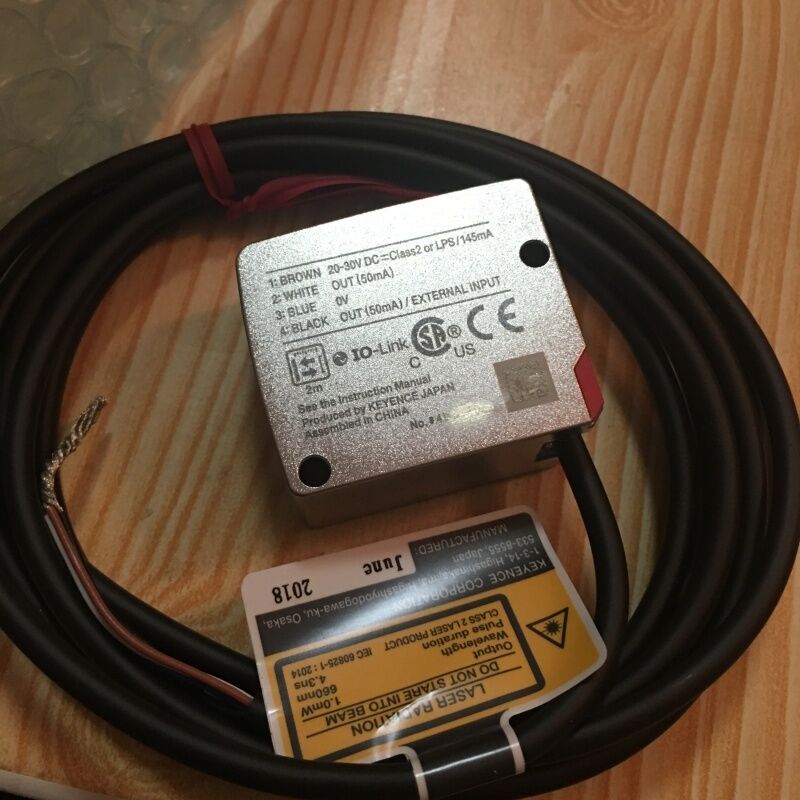

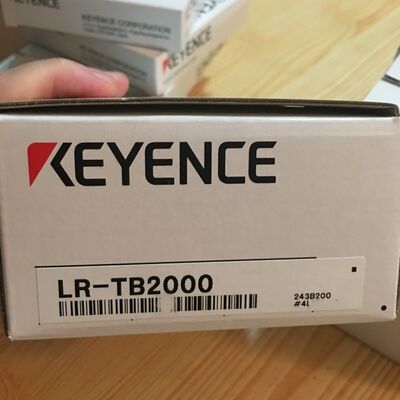

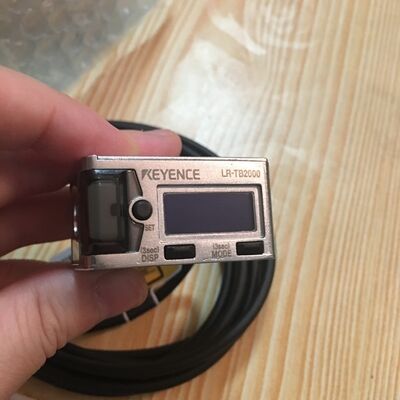

LR-TB2000 Keyence All Purpose Laser Sensor Detection distance 2m Cable Laser

Model

LR-TB2000

Type

Cable

Detectable distance

60 to 2000 mm 2.36" to 78.74"^*1

Spot diameter

Approx. ø4 mm ø0.16"

Light source

Type

Red laser (660 nm)

Laser class

Class 2 laser product
(IEC60825-1,FDA (CDRH) Part1040.10^*2)

Mutual interference prevention function

4 units (when using the interference prevention function)

Timer

OFF/OFF delay/ON delay/One-shot

Response time

1 ms/10 ms/25 ms/100 ms/1000 ms
selectable

I/O

Control output

NPN open collector/PNP open collector selectable
30 VDC or less, 50 mA or less, residual voltage: 2 V or less,
N.O./N.C. selectable
^*3*4

Analog output

-

Protection circuit

Protection against reverse power connection, power supply surges, output overcurrent, reverse output connection, and output surge

Power voltage

20 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS

Current consumption

45 mA or less (without load)^*5

Environmental resistance

Enclosure rating

IP65/IP67 (IEC60529)

Ambient light

Incandescent lamp/Sunlight: 10,0000 lux or less

Ambient temperature

-20 to +55 °C -4 to 131 °F (No freezing)

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions

Shock resistance

1,000 m/s², 6 times in each of the X, Y, and Z directions

Material

Case: Zinc die cast (Nickel chrome plating),
Indicator cover and buttons: PES,
Lens cover and display: PMMA (scratch-resistant coating specifications),
Cable bushing: PBT,
Cable: PVC

Accompanying items

Instruction manual,
Laser warning and explanation labels

Weight

Approx. 125 g (Including cable)
