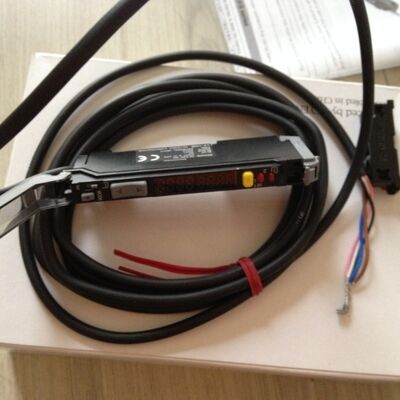

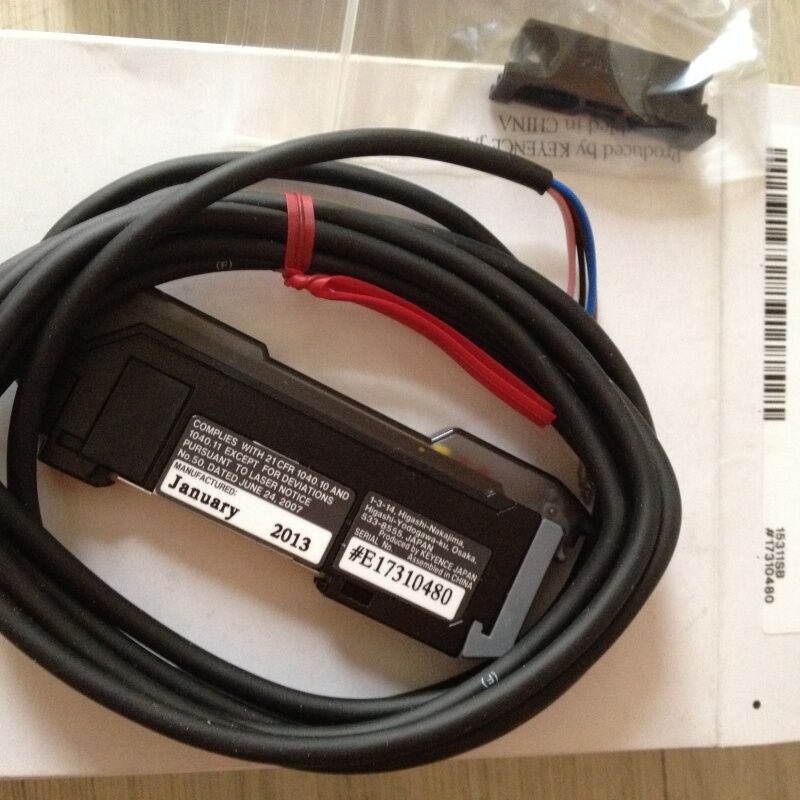

LV-11SB Keyence Ultra-small Digital Laser Sensor

Model

LV-11SB^*1

Type

Main unit

Output

NPN

Control output

NPN open-collector x 2 ch 40 VDC max. 100 mA max. per output

ExceptLV-S31

ULTRA

4 ms

SUPER

2 ms

TURBO

500 µs

FINE

250 µs

HSP

80 µs

LV-S31standard mode

500 µs

LV-S31standard mode

SPED2

2 ms

SPED3

8 ms

SPED4

32 ms

LV-S31High-speed mode

250 µs

Control input

Light emission stop input, external calibration, set value bank selection input, or shift input

ULTRA

4^*2

SUPER

TURBO

2^*2

FINE

HSP

0^*2

Unit expansion

Up to 16 expansion units can be installed (17 units including the main unit)^*3

Power voltage

12 to 24 VDC, Ripple (P-P) 10 % or less, Class2^*4

Power consumption

Normal

1.7 W max. (70 mA max. for 24 V)

Eco-Half Eco-All

1.55 W max. (65 mA max. for 24 V)

Ambient temperature

-10 to +55 °C 14 to 131 °F (No freezing)^*5

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z axis

Main unit

Main body, cover: Polycarbonate

Weight

Approx. 80 g (including 2 m 6.6' cable)
