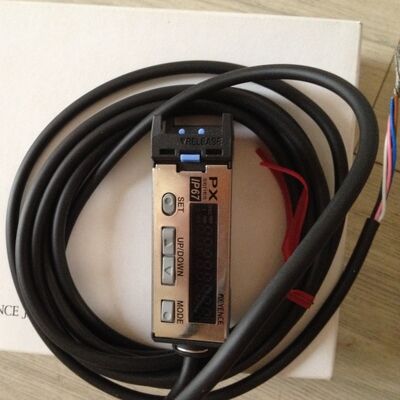

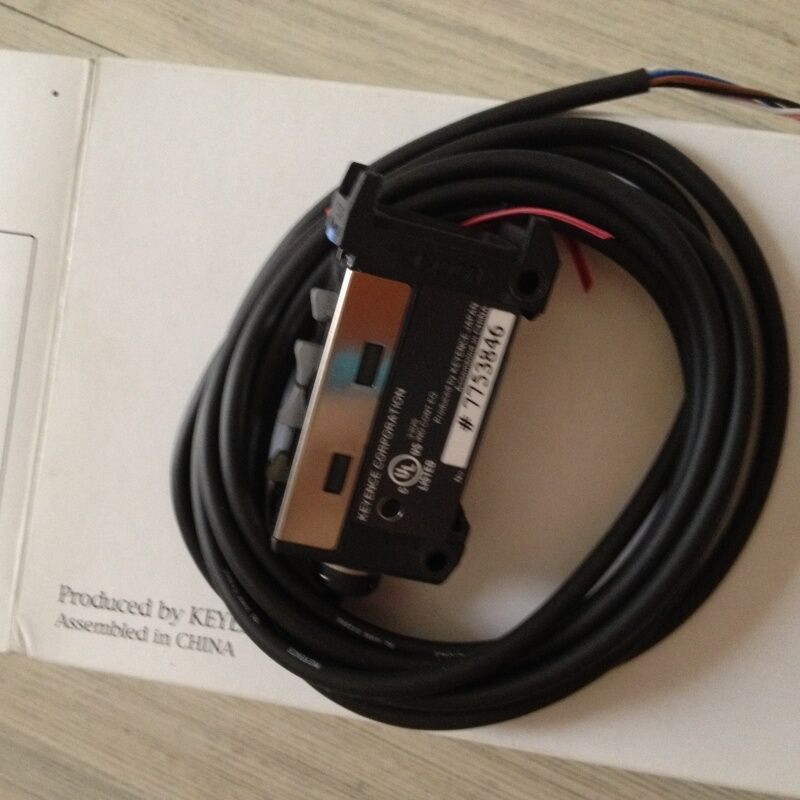

PX-10 Keyence Heavy-duty Photoelectric Sensors

Model

PX-10

Type

Cable type

Output

NPN

Response time

500 µs (TURBO) /1 ms (SUPER) /4 ms (ULTRA) /16 ms (MEGA)

Output selection

LIGHT-ON/DARK-ON

Indicator lamp

- Operation indicator:Red LED x 2, DSC orange LED x 1
- Dual digital monitor:Dual 7-segment display
[Preset value (4-digit green LED) and current value (4-digit red LED) illuminated together,
current value range:0 to 65504, excess gain:0 P to 999 P]
- Hold function:Possible to display both peak and bottom hold values. Selectable from 5 variations.
- Bar LED monitor [Excess gain displayed (85% to 115% in 7 steps)]
- Scaling display

Detection mode

Light intensity (automatic sensitivity-tracking function provided)/ [Limit light intensity/output monitor]

Shift function

Variable between –1999 and 9999

Timer function

Timer OFF/OFF-delay/ON-delay/One-shot/ON-delay, OFF-delay/ON-delay, One-shot
Timer duration selectable:1 ms to 9999 ms
Maximum error against the setting value:10% max.

Control output

NPN open-collector 40 V, 100 mA max. for an output/100 mA max. for two outputs, residual voltage 1 V max.

External input

Input time 2 ms (ON)/20 ms (OFF) min.

Interference prevention

Up to 4 units (in all power modes)^*1

Power voltage

12 to 24 VDC, Ripple (P-P) 10 % or less, Class2^*2

Power consumption

Standard mode:50 mA max. at 24 V/55 mA max. at 12 V
Power saving mode:40 mA max. at 24 V/45 mA max. at 12 V

Enclosure rating

IEC: IP67/JEM: IP67/NEMA: 4X

Ambient temperature

-10 to +55 °C 14 to 131 °F (No freezing)^*3

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions

Case material

Housing:PBT, display:PSU, display cover/connector cover:SUS304, radiator plate:SUS304, gasket:NBR

Weight

Approx. 100 g (Including cable)
