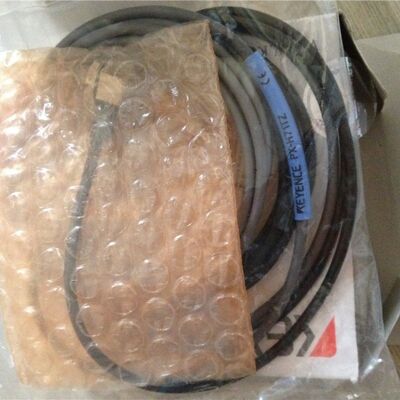

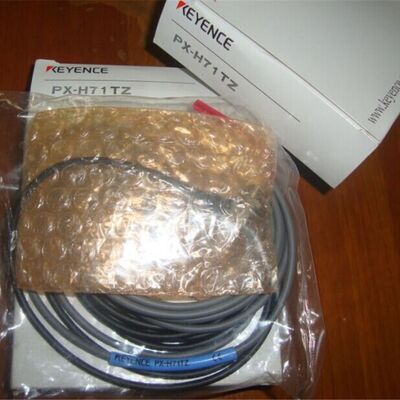

PX-H71TZ Keyence Heavy-duty Photoelectric Sensors Transmissive Sensor Head

Model

PX-H71TZ^*1

Type

M8 Thrubeam Hex-shaped

Light source LED

Red 4-eleant LED
(Wavelength:635 nm)

TURBO

4 m 13.1'

SUPER

6 m 19.7'

ULTRA

12 m 39.4'

MEGA

20 m 65.6'

Detectable object

ø4 mm ø0.16" Opaque materials

Spot diameter

―

Enclosure rating

IEC: IP68/JEM: IP68g/NEMA: 4X, 6P, 13/DIN: IP69K

Ambient light

Incandescent lamp: 20,000 lux max., Sunlight: 30,000 lux max.

Ambient temperature

-10 to +55 °C 14 to 131 °F (No freezing)

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions

Case material

Housing :SUS303 (Plastic parts:PMP, POM) Lens :BK7

Accessories

Screw nut (SUS303) x 2, toothed washer (SUS304) x 2

Weight

Approx. 88 g (Including cable)
