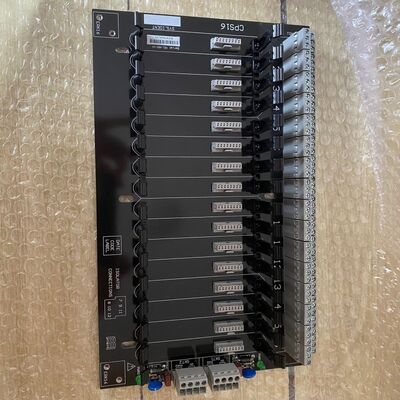

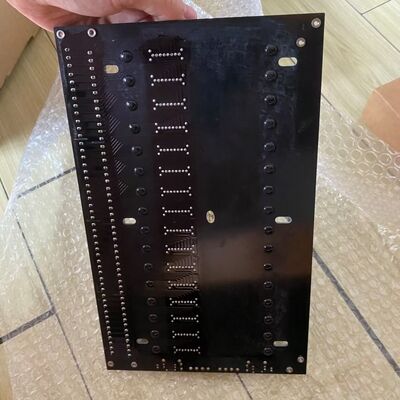

CPH-SC16 Eaton Crouse-Hinds series MTL4500 Backplane 16 x MTL4541A MTL4546Y Isolators Capacity 21-35 Vdc 0.65A current consumption 16 Channel

Large Image : CPH-SC16 Eaton Crouse-Hinds series MTL4500 Backplane 16 x MTL4541A MTL4546Y Isolators Capacity 21-35 Vdc 0.65A current consumption 16 Channel

Product Details:

Place of Origin:	England
Brand Name:	EATON
Model Number:	CPH-SC16

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T
Supply Ability:	500pcs/month

Contact Now Chat Now

CPH-SC16 Eaton Crouse-Hinds series MTL4500 Backplane 16 x MTL4541A MTL4546Y Isolators Capacity 21-35 Vdc 0.65A current consumption 16 Channel

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Highlight:

Eaton Crouse-Hinds MTL4500 backplane

16-channel intrinsic safety barrier

MTL4541A isolators 21-35Vdc

Eaton Crouse-Hinds series MTL4500 backplane, 16 x MTL4541/A, MTL4546/Y isolators capacity, 21-35 Vdc, 0.65A current consumption, 16 channel

Product Name	Eaton Crouse-Hinds series MTL4500 pulse isolator
Catalog Number	MTL4532
Product Length/Depth	104.8 mm
Product Height	121.8 mm
Product Width	15.8 mm
Product Weight	140 g
Product Type	Pulse isolator

Certifications and compliances

Area classification	Hazardous/Classified Locations
Standards type	IECEx/ATEX IEC
IECEx/ATEX hazardous rating	Zone 0
EMC	EN61326

Product specifications

Signal Type	Pulse and vibration
Number of Channels	1, fully floating
Mounting Method	MTL4500 range of backplanes
Power Dissipation	1.75W maximum at 35V 1.35W maximum at 24V
Hysteresis	0.2mA (650Ω)
Response Time	60ms
Transfer Accuracy	Better than 20µA
Temperature Drift	<1.0µA/°C
Ripple	<50µA peak-to-peak
Configuration	A personal computer running MTL PCS45 software with a PCL45USB serial interface
Switching Frequency	0-10 kHz (for analogue output) 0-50 kHz (pulse output mode)
Galvanic Isolation	50V between safe-area circuits and power supply
Type	Pulse and 4/20mA current outputs
